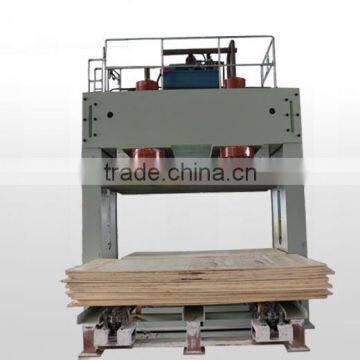

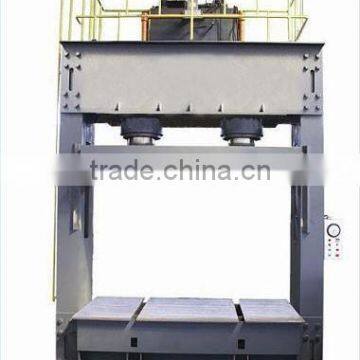

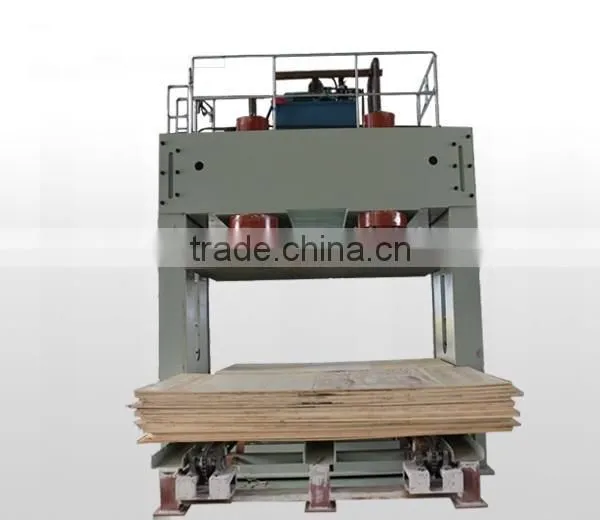

hydraulic cold press / plywood equipment BY814*8/400 ton
Pre-pressing machine is also called cold press, which has a large daylight. A pack of spread veneers,It is suitable for the forming and molding of veneer, rubber, PVC and resin objectsCapacity of pressure is optional by our customers.
Packing Details:High quality plastic sheeting with wireropr fixed, to ensure the transfering safe.
Model |
BY814X8/500 ton |
BY814X8/400 ton |
Nominal pressure |
5000kn |
4000kn |
Surface pressure |
1.3MPa |
1.3MPa |
Platen size |
2700x1370mm |
2700x1370mm |
Max. working stroke |
1000mm |
1000mm |
Net opening |
300-1300mm |
300-1300mm |
Press cylinder diameter and no. |
360mmx2 |
360mmx2 |
Lift cylinder diameter and no. |
80mmx2 |
80mmx2 |
Feeding conveyor speed |
6.78m/min |
6.78m/min |
Total motor power |
16.1kw |
16.1kw |
Overall dimension |
3500x2400x4765mm |
3500x2400x4650mm |
Weight |
18000kg |
17000kg |
1, Packaging in bulk.
2, Shipping within 20 days after deposit or original L/C at sight.
BASED ON MORE THAN TEN YEARS EXPORT EXPERIENCES IN WOODWORKING MACHINERY,WE OFFER A FULL LINE OF HIGH QUANLITY CHINA HOT PRESS,PRE-PRESS,SANDER,WOOD VENEER DRYER MACHINE.
