wood press machine plywood cold press BY814*8/400 ton
- 5 Set / Sets per Month
- Qingdao port
- T/T
- cold press for woodworking plywood cold press machine pre press for plywood BY814*8/400 ton
- hydraulic press machine/plywood cold press BY814*8/400 ton
- hydraulic cold press / plywood equipment BY814*8/400 ton
- cold press for plywood BY814*8/400 ton
- hydraulic plywood cold press macine/pre press wood door cold press BY814*8/400 ton
- plywood cold press machine BY814*8/400 ton
Product Details
Condition: | New | Type: | Hot Press Machine | Place of Origin: | Shandong, China |
Brand Name: | SEFE | Model Number: | BY814*8/400 | Voltage: | 380v |
Power(W): | 16kw | Dimension(L*W*H): | 3500x2400x4650mm | Weight: | 17,000-18,000kgs |
Certification: | CE,ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
in bulk
Product Description

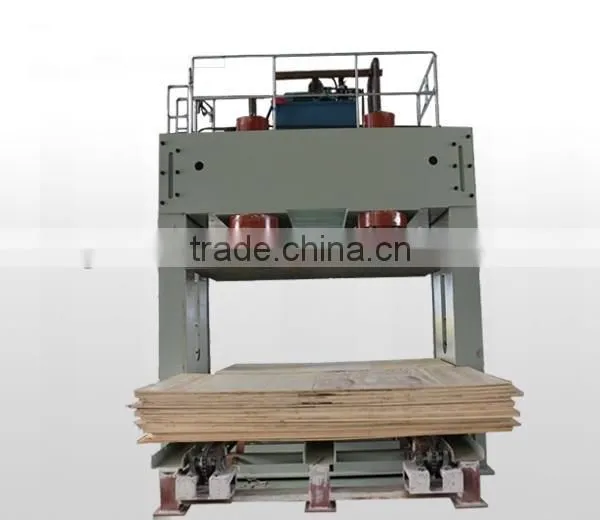

wood press machine plywood cold press BY814*8/400 ton
Pre-pressing machine is also called cold press, which has a large daylight. A pack of spread veneers,It is suitable for the forming and molding of veneer, rubber, PVC and resin objectsCapacity of pressure is optional by our customers.
Packing Details:High quality plastic sheeting with wireropr fixed, to ensure the transfering safe.
Model | BY814X8/500 ton | BY814X8/400 ton |
Nominal pressure | 5000kn | 4000kn |
Surface pressure | 1.3MPa | 1.3MPa |
Platen size | 2700x1370mm | 2700x1370mm |
Max. working stroke | 1000mm | 1000mm |
Net opening | 300-1300mm | 300-1300mm |
Press cylinder diameter and no. | 360mmx2 | 360mmx2 |
Lift cylinder diameter and no. | 80mmx2 | 80mmx2 |
Feeding conveyor speed | 6.78m/min | 6.78m/min |
Total motor power | 16.1kw | 16.1kw |
Overall dimension | 3500x2400x4765mm | 3500x2400x4650mm |
Weight | 18000kg | 17000kg |
1, Packaging in bulk.
2, Shipping within 20 days after deposit or original L/C at sight.
BASED ON MORE THAN TEN YEARS EXPORT EXPERIENCES IN WOODWORKING MACHINERY,WE OFFER A FULL LINE OF HIGH QUANLITY CHINA HOT PRESS,PRE-PRESS,SANDER,WOOD VENEER DRYER MACHINE.
Company Profile
Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company. We are specialized in manufacturing woodworking machines, located in Qingdao, China.
With over 50 years of experience in woodworking machine and metalworking fields, we have developed various series of woodworking machines, such as wide belt sanders, edge banding machines, slitter machines and vacuum press machines. In order to supply high quality products and excellent services, we are continually improving our products with the latest technologies according to the market prevailing requirements. In the past few years, we have already got CE and ISO9001 certifications. Our product quality is also well accepted by our overseas clients.
We sincerely welcome every client to visit our factory and hope to cooperate with you in the future.
