ASTM A516 Grade 70 Steel Plate for Boilers and Pressure Vessels

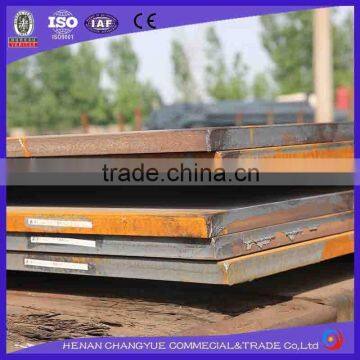

ASTM A516 Grade 70 Steel Plate for Boilers and Pressure Vessels photo-1
ASTM A516 Grade 70 Steel Plate for Boilers and Pressure Vessels photo-2
ASTM A516 Grade 70 Steel Plate for Boilers and Pressure Vessels photo-3
ASTM A516 Grade 70 Steel Plate for Boilers and Pressure Vessels photo-4
US$ 280 - 450 MOQ: 5 Tons
Key Specifications
Get Latest Price
Standard:
AISI, ASTM, GB, JIS
Grade:
Q345R Q245R Q370R
Thickness:
6mm-60mm
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin/rizhao/shanghai/shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Standard AISI, ASTM, GB, JIS
Grade Q345R Q245R Q370R
Thickness 6mm-60mm
Place of Origin Henan, China
Brand Name Angang
Model Number ASTM A516 Grade 70
Type Steel Plate
Technique Hot Rolled
Surface Treatment Other, uncoated
Application Boiler Plate
Special Use High-strength Steel Plate
Width 1500mm-3250mm
Length 4000mm-13000mm
Product Description

ASTM A516 Grade 70 Steel Plate for Boilers and Pressure Vessels


Commodity
boiler steel plate , hot rolled boiler steel plate,  boiler and pressure vessel stell plate
Standard
ASTM A516
Material
Q345R Q245R Q370R 16MnDR ASTM A516 Grade 70
Thickness
6mm~60mm
Width
1500mm~3250mm
Length
4000mm~13000mm
Surface
polished,coated,galvanized,2b,ba,NO.1,checkered,embossed
Package
Standard export seaworthy or as customers’ requirements
Delivety Time
Usually 30 days and sometime According to the quantity you ordered or Upon negoation
Price Term
FOB, C&F, CIF ,CNF or others
Application
widely used in Boiler, Pressure vessels

 Chemical Composition of ASTM A516 Grade 70

Carbon (C)
%
Manganese (Mn)
%
Phosphorus (P)
%
12.5mm or less

12.5 - 50mm

50 - 100mm

100 - 200mm

> 200mm
0.27

0.28

0.30

0.31

0.31
12.5mm or less
• Heat Analysis :
• Product Analysis :
Over 12.5mm
• Heat Analysis :
• Product Analysis :
0.85-1.20

0.79-1.30



0.85-1.20

0.79-1.30
(max)
0.035
Sulphur (S)
%
Silicon (Si)
%
(max)
0.035
• Heat Analysis :
• Product Analysis :
0.15-0.40

0.13-0.45

Mechanical Properties of ASTM A516 Grade 70

Description
Grade 70
Tensile strength (ksi)

Tensile strength (MPa)

Yield strength (ksi)

Yield strength (MPa)

Elongation in 200mm (min)(%)

Elongation in 50mm (min) (%)

Thickness (max)(mm)
70-90

485-620

38

260

17

21
Detailed Images

ASTM A516 Grade 70 Steel Plate for Boilers and Pressure Vessels


Packing & Delivery

ASTM A516 Grade 70 Steel Plate for Boilers and Pressure Vessels

Transports---------Containler sizes:

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

20feet container load 25tons coils whose length is under 5.8m

40feet container load 25tons coils whose length is under 11.8m

Application

ASTM A516 Grade 70 Steel Plate for Boilers and Pressure Vessels

Boiler plate and Pressure Vessel plate is mainly refers to used to make super heater tube boiler, the main steam heating room with fire and hot rolling steel plate material, the main material is high quality structural steel and low alloy steel heat, the commonly used boiler steel smelting steel mill have the low carbon steel smelting furnace of calm or low carbon steel.
