Rubber Rings for Conveyor Rollers/imapct Conveyor Roller Rubber Rings

Rubber Rings for Conveyor Rollers/imapct Conveyor Roller Rubber Rings thumbnail-1
Rubber Rings for Conveyor Rollers/imapct Conveyor Roller Rubber Rings photo-1
US$ 3 - 5 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Huayun, Huayun
Model Number:
Diameter from 50mm to 219mm, 76 89 108 133 159
Contact Supplier Request Quote Chat Now
Baoding Huayun Conveyor Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Huayun, Huayun
Model Number Diameter from 50mm to 219mm, 76 89 108 133 159

Baoding Huayun Conveyor Machinery Co.,Ltd is a manufacture a wide series of Idler Roller and its Accessories such as Conveying Set, Carrying Idler, Flat Return Idler,Toughing Idler, Conveyor Belt Guide Roller, Impact Idler, Drum Pulley and many conveyor accessories form material handling purpose as described ahead. All the conveyor accessories are designed and developed with high quality material.





rubber rings for conveyor rollers/imapct conveyor roller rubber rings







Product Description



rubber ring for impact roller ,impact roller and can make as you need.



159*219-35,



133*194-40,



159*194-30,



108*159-35



,108*159-40,



102*159-27.3,



89*133-25,



89*133-30,



89*133-35,



89*133-27.3,



82*133-30,



89*140-30,



89*127-30,



89*120-25



,76*108-22,



73*108-26,



70*108-22,



60*108-22,



57*89-20,



60*89-20,



54*89-20,



89*108-25



rubber rings for conveyor rollers/imapct conveyor roller rubber rings



 rubber rings for conveyor rollers/imapct conveyor roller rubber rings

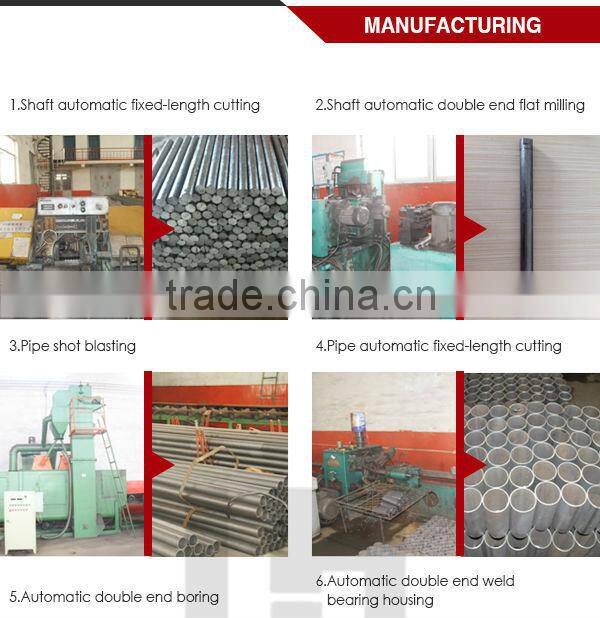

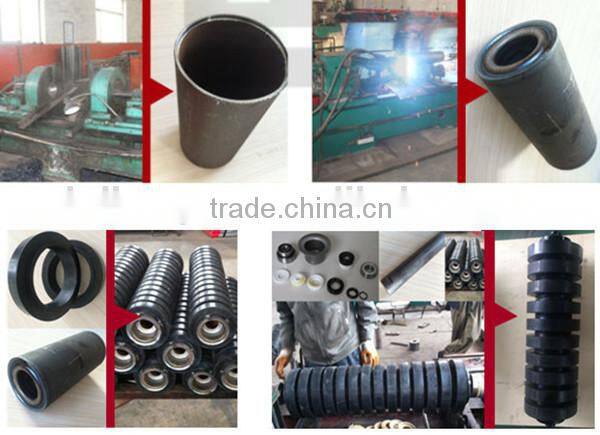

conveyor roller rubber rings manufacture:

Pipe - roller pipe/Q235/carbon steel



Diameter(mm): 51, 60, 63.5, 76, 89, 108, 127, 133, 159



 Length(mm):190, 200, 240, 250, 305, 315, 375, 380, 455, 465, 525, 530.



Thickness(mm):1.8, 2.0, 2.2, 2.5, 2.75, 3.0, 3.25, 3.5, 3.75, 4.0



 Shaft- A3(45#steel)



Diameter(mm):20, 25, 30, 35, 40



Bearing - C&U,HRB,ZWZ,LYO,NWH,SKF,NSK



 Type: deep groove ball bearing with C3/C4



 Size: 6104, 6204, 6205, 6305, 6206, 6306, 6307, 6308



 Bearing Housing - Trinity,special customized for Huayun



 Type: pressed housing, cast iron bearing housing, polymer

 housing



 Seal - Multiple labyrinth seal, water proof, dust proof



 Type: general use(nylon), Double labyrinth seal,TR seal



 Grease: Lithium grease lubricant



rubber rings for conveyor rollers/imapct conveyor roller rubber rings

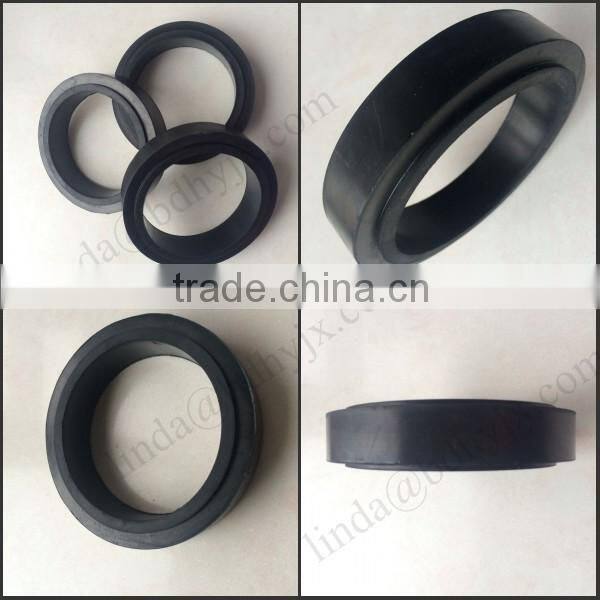

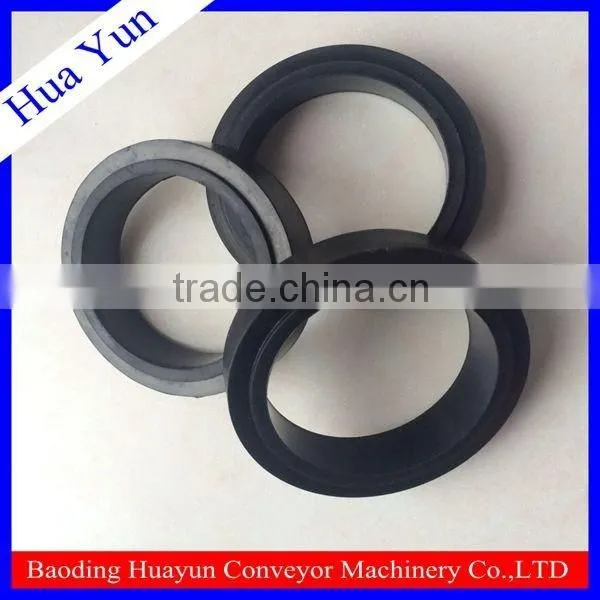

Different kings of conveyor roller rubber rings:

rubber rings for conveyor rollers/imapct conveyor roller rubber rings



rubber rings for conveyor rollers/imapct conveyor roller rubber rings



rubber rings for conveyor rollers/imapct conveyor roller rubber rings



rubber rings for conveyor rollers/imapct conveyor roller rubber rings



The certificates for conveyor roller rubber rings:

rubber rings for conveyor rollers/imapct conveyor roller rubber ringsrubber rings for conveyor rollers/imapct conveyor roller rubber ringsrubber rings for conveyor rollers/imapct conveyor roller rubber rings







 Huayun conveyor roller rubber rings customers :

rubber rings for conveyor rollers/imapct conveyor roller rubber rings





 If you need any help contact me freely.



 rubber rings for conveyor rollers/imapct conveyor roller rubber rings
