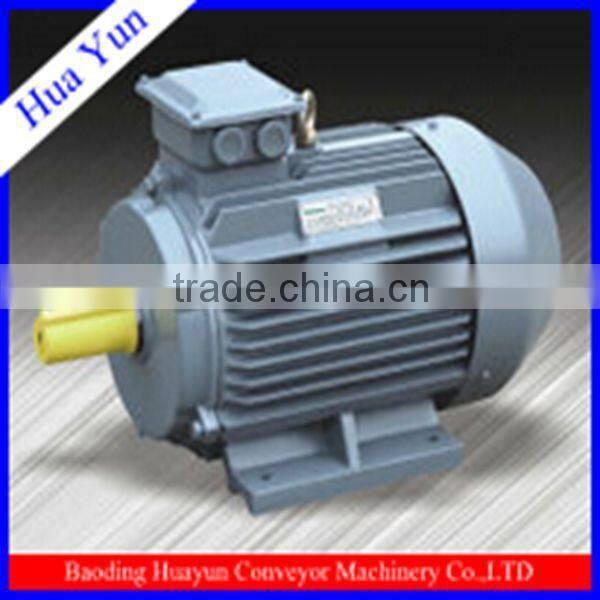

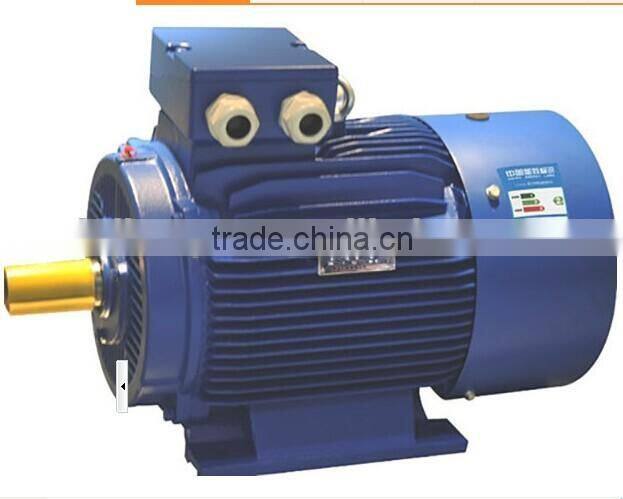

winding machine electric motor y2 series high voltage 3 phase asynchronous motors
GENERAL INFORMATION
power range: 0.12-18.5 kW
Centre height of frame: 63-160 mm
Rated Voltage: 380 V
Rated Frequency: 50Hz or 60Hz
Protection Class: IP54, IP55
Insulation Class: F
Duty Type: S1
Specifications
1) Frame sizes: 63-355
2) Rated power: 0.12kw-200kw
3) Rated voltage: 220/380V,380/660V or on your request
4) Frequency: 50Hz, 60Hz
5) Protection class: IP54
6) Insulation class: F
7) Materials: cast iron, aluminum (FRAME 63-132)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 2, 4, 6, 8
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: IMB3
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -35°C < θ < 40°C
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements
if you have any help,pls contact me freely!
