Baoding Huayun Conveyor Machinery Co.,Ltd is a manufacture of conveyor roller .

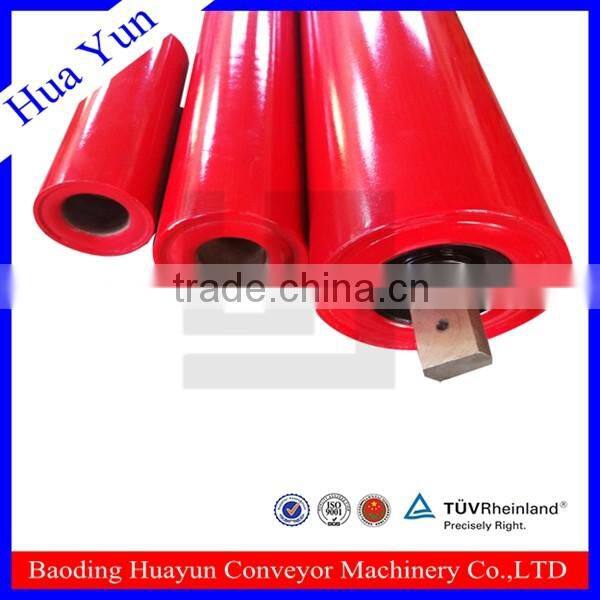

Belt Conveyor Heavy Duty Steel Trough Carrier Return Idler Roller
|
HuaYun brand conveyor roller/idler:
1.The life time: more than 30000 hours
2.Samples for testing are available
3.The more relaxed payment terms
4.Electrostatic spraying
Pipe - roller pipe/Q235/carbon steel
Diameter(mm): 51, 60, 63.5, 76, 89, 108, 127, 133, 159
Length(mm):190, 200, 240, 250, 305, 315, 375, 380, 455, 465, 525, 530.
Thickness(mm):1.8, 2.0, 2.2, 2.5, 2.75, 3.0, 3.25, 3.5, 3.75, 4.0
Shaft - A3(45#steel)
Diameter(mm):20, 25, 30, 35, 40
Bearing - C&U,HRB,ZWZ,LYO,NWH,SKF,NSK
Type: deep groove ball bearing with C3/C4
Size: 6104, 6204, 6205, 6305, 6206, 6306, 6307, 6308
Bearing Housing - Trinity,special customized for Huayun
Type: pressed housing, cast iron bearing housing, polymer
housing
Seal - Multiple labyrinth seal, water proof, dust proof
Type: general use(nylon), Double labyrinth seal,TR seal
Grease: Lithium grease lubricant
Huayun Heavy Duty Steel Trough roller character:
Different kinds of Heavy Duty Steel Trough roller shaft ending: About the shaft ending,we not only can manufacture the TD75 type,but also can manufacture the DTII type.And can make as customers need like below.
The advantage of Heavy Duty Steel Trough roller: 1) manufacturer of belt conveyor idler rollers, conveyor pulleys, conveyor brackets; 2) with most advanced production equipment; 3) with exquisite craft with CEMA DIN standard; 4) with TUV, ISO9001:2008 and Safety of Approval for Mining Products; 5) with high quality material purchasing channel and excellent after-sale service
Huayun factory Heavy Duty Steel Trough roller production:
The production process of steel tube conveyor rollers is as following: Conveyor Roller Shell: use customized steel tube for conveyor roller which make roller have minimum play radial eccentricity.
We will make play radial eccentricity test for Heavy Duty Steel Trough roller before delivering out from our company.We can assure play radial eccentricity less than 0.5, if have special requirements, it can reach 0.2~0.3
Heavy Duty Steel Trough roller certificate: Our Huayun conveyor roller,conveyor pulley,conveyor belt,conveyor frame,conveyor bracket and belt conveyor products manufacture by our factory.And we can guarantee our rollers quality,and we can some certificate,such as CE,ISO,BV,SGS,IKA,ETC.
Heavy Duty Steel Trough roller package:
When your order is sent in a whole container, the conveyor roller is packed with plastics; in other cases, our rollers are packed in standard wooden box or as per your specific requirements.
Baoding Huayun Conveyor Machinery Co., Ltd, steel roller with high quality, certificated by the ISO9001/2008 and Safety Certificate of Approval for Mining Products, exported to USA, Russia, Belgium, Australia, New Zealand, South Africa, and so on.
) manufacturer of belt conveyor carrying rollers, conveyor pulleys, conveyor brackets;
Welcome all companies to contact us for business negotiation. It is my honour to serve you. baoding rubber buffer roller
|
