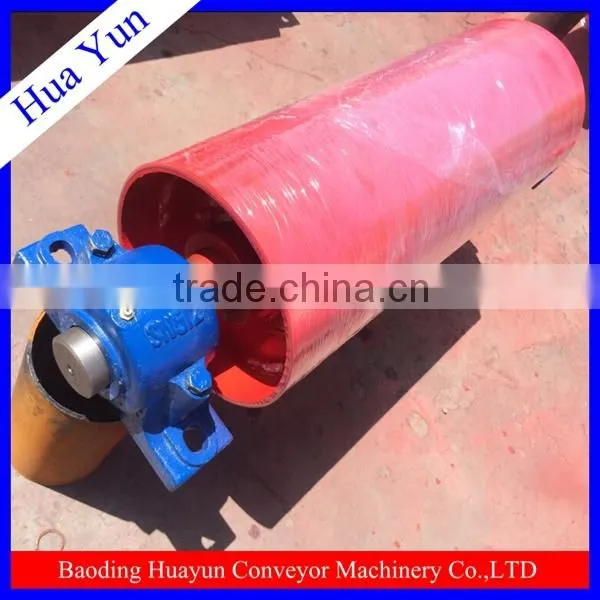

Conveyor Bend Drum Pulley With Rubber Surface

Name: Conveyor Bend Drum Pulley With Rubber Surface
Brand: Huayun
SKU: 101020195
Availability: InStock

US$ 300 - 1,500 MOQ: 1 Piece

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Huayun

Model Number:

bend drum pulley

Baoding Huayun Conveyor Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Huayun

Model Number bend drum pulley

Bend Drum Pulley

bend drum pulley for belt conveyor is used with electric motor

to drive the belt to moving.

Product Description

1.Key Features of bend drum pulley

(1).Steady running, reliable quality and reduce maintenance;

(2).Less movement longitudinally, rotating smoothly, extends the life span;

(3).Various bearing housing and sealing structure are available for the customers choice;

(4).Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;

(5).Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load,

low shaking and less noise.

2.Components of bend drum pulley

(1)High quality raw material: Q235 / Q 245 / Mn steel plate.

(2)Bearing: LYC, HRB, NTN, etc.

(3)Long service life (about 8 years).

(4)It can work in the dusty, wet, muddy or other harsh environments.

(5)Welding: Mixed gas TIG.

(6)Surface: painting or rubber coated.

(7) Lubrication: Lithium grease, rust inhibitor.

3.Production of bend drum pulley

Parameter of bend drum pulley
Type	Belt width(mm)	Standard diameter(mm)	Length(mm)
Driving idler pulley	500	500	Length of pulley depends on the width of conveyor belt
	650	500~630
	800	630~1000
	1000	800~1150
	1200	800~1150
	1400	1000~1350
	1600	1150~1600
	1800	1150~1800
	2000	1350~2000
	2200	1600~2200
	2400	1800~2400
