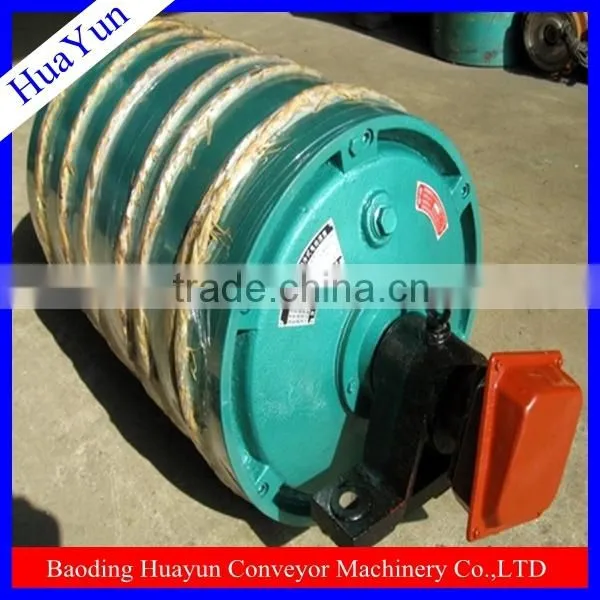

electric conveyor drum
electric conveyor drum is used with electric motor to drive the
belt to moving.
Certification:ISO, MA, TUV
Type conveyor: DTII, TD75
Bearing NO: 1310/1312/1314/1316/3520/3524/3532etc
Material: carbon steel, Rubber coated
Belt width: from 300mm to 2400mm
The international Market: Middle east, South America, Africa, Southeast Asia. Etc.
Feature of electric conveyor drum for conveyor
1. Steady running, reliable quality and reduce maintenance;
2. Less movement longitudinally, rotating smoothly, extends the life span;
3. Various bearing housing and sealing structure are available for the customers choice;
4. Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
5.Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load,
low shaking and less noise.
Components of Electric conveyor drum
1.High quality raw material: Q235 / Q 245 / Mn steel plate.
2.Bearing: LYC, HRB, NTN, etc.
3.Long service life (about 8 years).
4.It can work in the dusty, wet, muddy or other harsh environments.
5.Welding: Mixed gas TIG.
6.Painting: ordinary painting, hot-dip galvanzing, electrostatic spray, baking varnish
7.Lubrication: Lithium grease, rust Inhibitor.
Parameter for reference
| Parameter of conveyor drum pulley | |||
| Type | Belt width(mm) | Standard diameter(mm) | Length(mm) |
|
Driving pulley, bend pulley |
500 | 500 |
Length of pulley depends on the width of conveyor belt |
| 650 | 500~630 | ||
| 800 | 630~1000 | ||
| 1000 | 800~1150 | ||
| 1200 | 800~1150 | ||
| 1400 | 1000~1350 | ||
| 1600 | 1150~1600 | ||
| 1800 | 1150~1800 | ||
| 2000 | 1350~2000 | ||
| 2200 | 1600~2200 | ||
| 2400 | 1800~2400 | ||
Testing measures
We have strict quality testing and performance testing to ensure the quality of our
belt conveyor roller.
Testing standard
1.End travel<0.5
2.Axial application of force(15KN) cudgel and axle don’t come away
3.1M free flat slump: Weld joint without harm
Axial displacement ≤1.5
4.180/KG(cm) free vertical slump:Weld joint without harm
Axial displacement ≤1.5
HuaYun conveyor roller and drum are widely used in mines,caves,
cement works, coal-fired electric utilities and dock installations.
The Certification
Certificate: ISO,MA,TUV
Production capacity: as usual 100 pieces/ week, but urgent order is acceptable
Our other kinds of conveyor idler roller
Our factory and client
We are read to cooperate with our friends both at home and abroad
to build a bright future! We sincerely welcome any cooperation with
you in the future.
If any questions, please feel free contact us!
