General Purpose Used Flame Retardant PVC/PVG Conveyor Rubber Belt
- 5000 Meter / Meters per Month
- Tianjin port
- T/T Credit Card
- Hand tool parts castings
- OEM/ODM steel air tool parts / needle bar bushing
- air chuck,air accessory,pneumatic tool parts
- Air conditioner parts develop stamping tooling die
- Investment Casting Pneumatic tools accessories with Stainless Steel and Alloy Steel Materials
- customized high quality Milling Tools
Product Details
Place of Origin: | Hebei, China | Brand Name: | Huayun | Model Number: | CC/NN/EP/PVC/PVG/St, CC-56/NN100-NN630/EP100-EP630 |
Product Description
General Purpose Used Flame Retardant PVC/PVG Conveyor Rubber Belt
fire retardant conveyor belt
1,Flame retardant
2,width : 300-2200mm
3,680s, 800s, 1000s,1250s,1400s,1600s
4, ISO9001: 2008
Application:

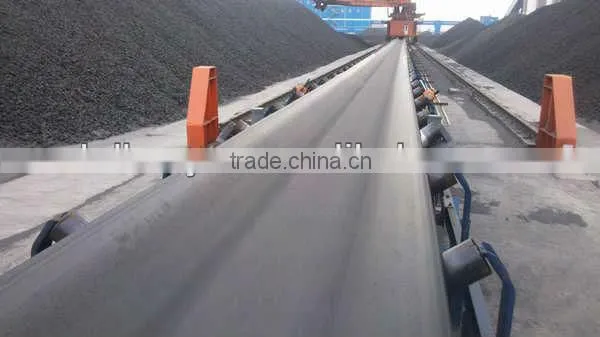

It is mainly applicable for the underground well haulage of coal mines, and also the conveyance of materials
for metallurgical and chemical industries. The whole core fire retardant conveyer belt is divided into two

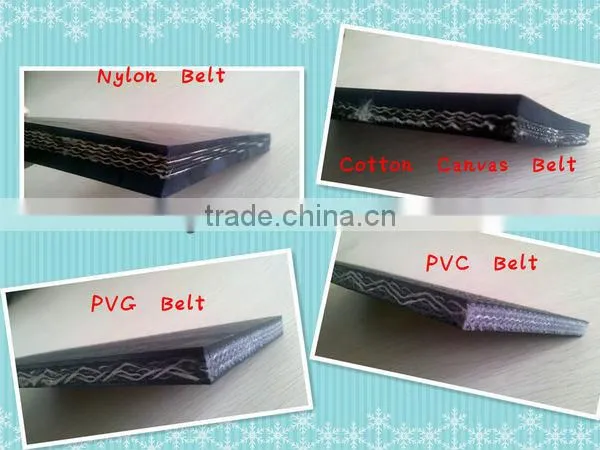

types: PVC & PVG conveyor belt
Features:
PVC type conveyer belt's upper and lower layers are PVC coating cover, single sided tape
thickness: ≥1.0mm; PVG type belt's upper and lower layers are nitrile rubber and PVC,
single-sided tape thickness: 1.5mm-4.5mm.
PVC type conveyer belt's inclined angle: <16°;
PVG conveyer belt's inclined angle: <20°.
PVC/PVG conveyor belt (Din Standard Belt)
Type and technical parameter of PVC conveyer belt: |
Standard MT914-2008 | Safety factor 10(Breaking strength*1/10) | |||||
The Slope <16°C | ||||||
Standard type | Degree | Breaking strength≥,N/mm | Tensile yield≥,% | Advising Mindiameter of Transmission Drum | ||
Longitudinal | Transverse | Longitudinal | Transverse | |||
680S | 4th | 680 | 265 | 15 | 18 | 320 |
800S | 5th | 800 | 280 | 400 | ||
1000S | 6th | 1000 | 300 | 500 | ||
1250S | 7th | 1250 | 350 | 500 | ||
1400S | 8th | 1400 | 350 | 630 | ||
1600S | 8th | 1600 | 400 | 750 |
Technical standards:
GB/T7984-2001, GB/T10822-2003, DIN22102, AS1332,JISK6322, etc.
Specifiction/strength:160N/mm-----3150N/mm
Type and technical parameter of PVC conveyer belt: |
Standard MT914-2008 BS3289 HG2805 | Safety factor 10(Breaking strength*1/10) | |||||
Standard type | Degree | The slope <20°C | Recommend minimum roller diameter | |||
Breaking strength≥,N/mm | Tensile yield≥,% | |||||
Longitudinal | Transverse | Longitudinal | Transverse | |||
680S | 4th | 680 | 265 | 15 | 18 | 400 |
800S | 5th | 800 | 280 | 500 | ||
1000S | 6th | 1000 | 300 | 630 | ||
1250S | 7th | 1250 | 350 | 750 | ||
1400S | 8th | 1400 | 350 | 750 | ||
1600s | 9th | 1600 | 400 | 750 |
Safe function: |
Function Name | The alcohol combustion | The propane combustion | Electrical conductivity | The roller rub |
Standard value | Average value≤3S,List value≤10S(Have no cover gum) | a)≥600 | ≤3X108Ω | ≤325°C |
Average value≤5S,List value≤15S(Have no cover gum) | b)≥50mm;≤140°C≤1250mm | Have no Mars |
For more details,please contact us freely!
Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)
Sidewall conveyor belt (SW)
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (OHR/ OFR)
Cold Resistance conveyor belts, (CR)
Endless belts
Conveyor Roller, Conveyor Pulley, Conveyor Roller bracket,Belt Cleaner,Belt Buckle etc
