NN100, NN150, NN200, NN250, NN300, NN400 , NN500, NN600
Standards for conveyor belt
Besides General Nylon Belt, there are Fire-resistant type, Cold-resistant type, Wear-resistant type,
1) high abrasion resistance, high tensile strength and good fatigue resistance;
2) Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile
Specification and technical data of multi-ply NN100 conveyor belt
|
Fabric type |
Fabric structure
|
Fabric specs |
Ply Thickness (mm/p) |
(N/mm) strength |
(mm) Cover thickness |
Width (mm) |
Length (m) |
||||||
|
Wrap |
Weft |
2ply |
3ply |
4ply |
5ply |
6ply |
Upper |
Lower |
|||||
|
Nylon (NN)
|
Nylon (N) |
Nylon (N) |
NN-100 |
0.75 |
200 |
300 |
400 |
500 |
600 |
1.5 ~ 12 |
0 ~ 4.5 |
400 ~ 2200 |
≤300 |
NN-150 |
0.80 |
300 |
450 |
600 |
750 |
900 |
|||||||
NN-200 |
0.90 |
400 |
600 |
800 |
1000 |
1200 |
500 ~ 2200 |
||||||
NN-250 |
1.15 |
500 |
750 |
1000 |
1250 |
1500 |
|||||||
NN-300 |
1.25 |
-- |
900 |
1200 |
1500 |
1800 |
|||||||
NN-400 |
1.45 |
-- |
-- |
1600 |
2000 |
2400 |
800 ~ 2200 |
||||||
NN-500 |
1.55 |
-- |
-- |
2000 |
2500 |
3000 |
|||||||
Adhesion and elongation of NN100 conveyor belt
Belt carcass |
Adhesion strength |
Elongation |
|||
|
Between plies N/mm |
N/mm Between rubber and carcass |
Longitudinal elongation elongation at break%≥
|
Longitudinal elongation at reference load%≤
|
||
Cover thickness≤1.5mm |
Cover thickness≥1.5mm |
||||
Nylon canvas |
≥4.50 |
≥3.20 |
≥3.50 |
10 |
4.0 |
According to the customer’s requirements, the belts could be made into endless belt, and the covering
rubber could be made into pit, chevron and level type etc.
Production process for NN100 conveyor belt
Useage:
It is suitable for conveying materials at medium or long distance and under conditions of heavy load and high speed.

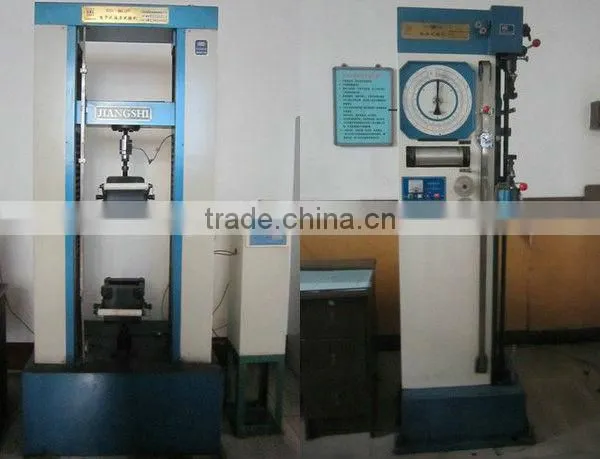

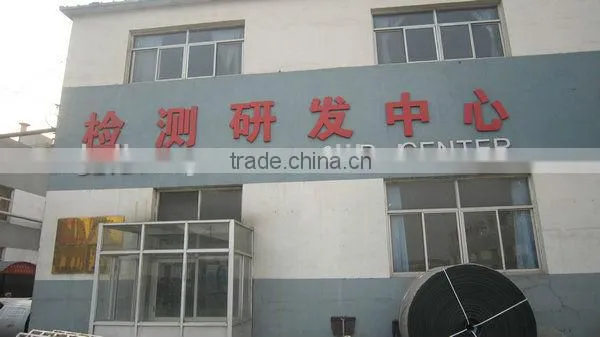

Our research and development center, test equipment
Certifacation
Our company and customers
For more details,please inquiry us!
