Standed Belt Conveyor Roller With Good Qualityg
HuaYun brand conveyor roller/idler has been exported to more than 30 countries all over the world and particularly suitable for South America market. we have professional engineers and all of them have rich experience in this field, we can design the goods independently and make roller by your design
Certification of HuaYun Brand conveyor roller, steel roller
HuaYun brand conveyor roller/idler have been certificated by the ISO9001/2008 and Safety Certificate for Mining Products. With high quality and competitive prices, our products enjoy a good reputation both in home and the abroad.
Production capacity: as usual 5000 pieces/ week and urgent order is acceptable

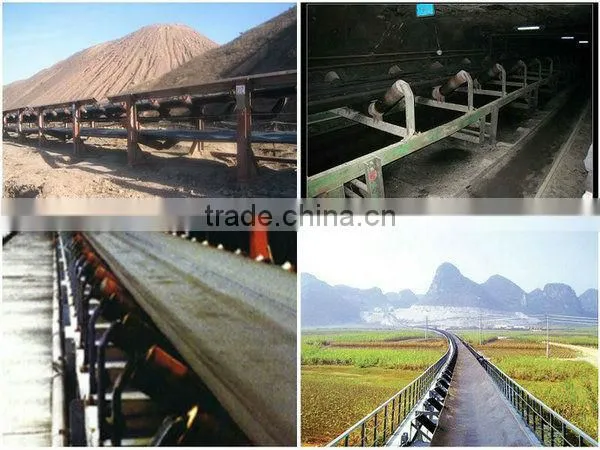

Application of conveyor roller idlers
Conveyor roller/idler are used in areas such as coal mining industry, cement industry, power plant and port etc.
Our Huayun conveyor machinery Limited Company is a factory producing all kinds of conveyor roller/idlers.
Friction idler/roller: it can effectively prevent the belt running deviation.

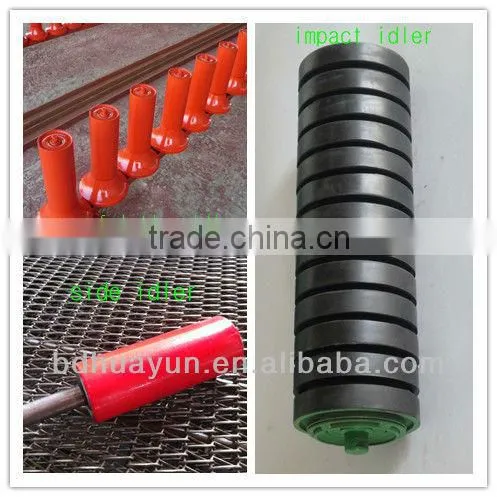

Side idler/roller: Good ability of correcting deviation.
Impact roller/idler: Reduce the belt being weared.

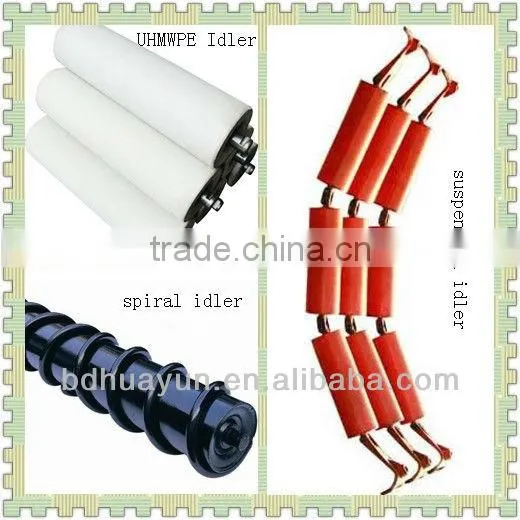

UHMWPE roller/idler:Good weather and aging resistance
Spiral idler/roller: clean and self-aligning roller.
Suspension idler/roller: used in the pit
Nylon roller/idler:Low noise
We can make the roller according to your drawing or as your requirement
Advantages of our conveyor roller/idler:
(1)Easy installation and nice flexibility;
(2)Low friction coefficient;
(3)Dust- and water-proof;
(4)Fine welding technique ensure roller with low vibration and noise;
(5)Electrostatic spraying technic makes the roller more durable and good-looking;
(6)Strict inspection standard ensures high quality product.
specification of HuaYun conveyor roller/idler
| Roller Dia (mm) | Length Scope(mm) | Shaft Dia(mm) | Bearings Type(Min-Max) | Roller’s Tube Thickness |
| 50 | 150-2500 | 20;25 | 204 | 3.2mm-4.0mm |
| 63.5 | 20;25 | 204 | ||
| 76 | 20;25 | 204 205 | ||
| 89 | 20;25 | 204 205 | 3.2mm-6.0mm | |
| 102 | 20;25;30 | 204 205 305 | 3.5mm-6.0mm | |
| 108 | 20;25;30 | 204 205 305 306 | ||
| 114 | 20;25;30 | 205 206 305 306 | ||
| 127 | 20;25;30 | 204 205 305 306 | ||
| 133 | 20;25;30 | 205 206 207 305 306 | ||
| 140 | 20;25;30 | 205 206 207 305 306 | ||
| 152 | 20;25;30 | 205 206 207 305 306 307 308 | 4.0mm-6.0mm | |
| 159 | 20;25;30;40;45 | 205 206 207 305 306 307 308 | ||
| 165 | 20;25;30;40;45 | 207 305 306 307 308 | 4.5mm-6.0mm | |
| 177.8 | 20;25;30;40;45 | 207 306 307308 309 | ||
| 190.7 | 20;25;30;40;45 | 207 306 307308 309 | ||
| 194 | 20;25;30;40;45 | 207 307 308 309 310 | ||
| 219 | 20;25;30;40;45 | 308 309 310 |
Test for conveyor seel rollers/tube idler
1. axial loadingd ≥10 kn
2. axial moving ≤ 1.2mm
3. radial moving ≤0.5mm
4. rotation resistance ≤ 3.5n

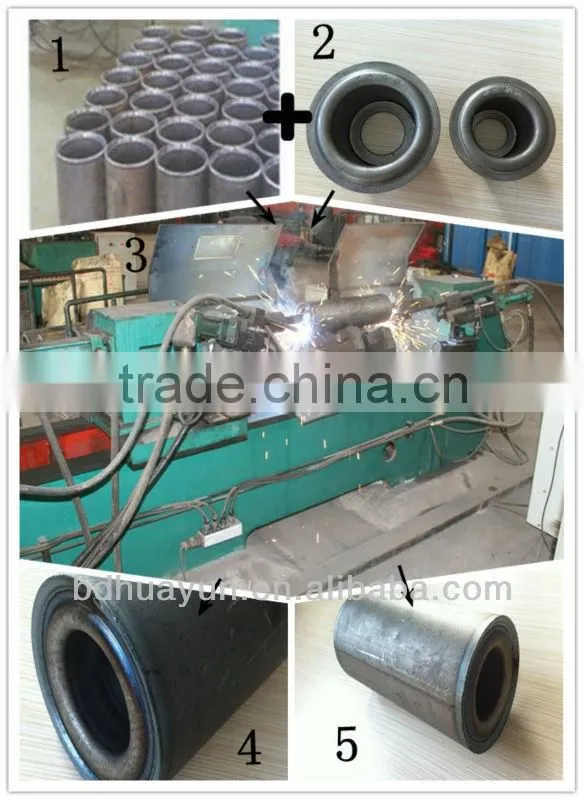

Prodcution process of Mine belt conveyor roller
A line: conveyor roller pipe processing line
conveyor roller pipe type one: removethe
steel roller pipe type two: cut the long roller pipe into
Roller pipe type three: double end boring
Roller pipe type four: press bearing into the pipe and weld it
Roller pipe type five:Painting and surface treatment for conveyor roller
Our conveyor roller are used electric static painting or as per customers' requirements
B Line: conveyor roller shaft processing line
Roller shaft type one:cut the shaft into short
Idler shaft type two:milling the shaft
A line +B line= Conveyor roller idler
finished goods: conveyor steel roller/idler
Our factory is loated in Boye Rubber Industrial District, Baoding city, Hebei province, China.
Warmly welcome customers to visit and negotiate business, to map, sample custom processing
If you have any question, please contact with us. May I help you, it's our pleasure to answer.
