YL Series Single Phase 2hp Electric Motor
US$ 10 - 300
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
DELLENT
Model Number:
YL series
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cast Iron Housing Single-phase Dual Capacitor Asynchronous Motors YL , YCLUS$ 10 - 300MOQ: 50 Pieces -
MS Three Phase ac Motor IEC,IE1, IE2 StandardsUS$ 15 - 200MOQ: 50 Pieces
-
MS Three Phase Asynchronous Electric Motor of IEC,IE1, IE2 Standards From China SupplierUS$ 15 - 200MOQ: 50 Pieces
-
MS Three Phase Asynchronous Electric Motor 220/380V of IEC,IE1, IE2 Standards From China SupplierUS$ 15 - 200MOQ: 50 Pieces
-
MS Three Phase Motor 220/380V IEC,IE1, IE2 StandardsUS$ 15 - 200MOQ: 50 Pieces
Brand Name
DELLENT
Model Number
YL series
Type
Asynchronous Motor
Frequency
50HZ , 60HZ, 50HZ , 60HZ
Output Power
0.25 KW to 5KW
Protect Feature
Waterproof
Phase
Single-phase
Certification
CCC, CE, CCC, CE, Other, CCC, CE, CCC, CE , SGS, ISO
AC Voltage
Other, 220, 110-240V
Place of Origin
Fujian, China
Efficiency
Other, IEC ,IE1 , IE2
Specifications
YL Series single phase 2hp electric motor1, reliable performance
2, factory directly
3, CCC CE
YL Series single phase 2hp electric motor
Introduction and Application
| YL series single-phase dual-capacitor asynchronous motors is designed and manufactured in accordance with state standards, with outstanding performance of starting and operation, low noise, compact dimensions, light weight, easy maintenance, etc. | |
| These motors are widely used in air compressors, pumps, fans, refrigerators, medical instruments as well as small machines, etc. especially for occasion where only single-phase power supply is available. | |
| They are newly designed in conformity with the relevant requirements / rules of IEC standards. | |
| Contruction Materials | |
| Frame – Cast iron | |
| End shields- Cast iron | |
| Fan cowl- steel | |
| Fan-Plastic | |
| Shaft- Medium carbon steel(stainless available on request) | |
| Operating Conditions: | |
| Power Range | 0.25 ~ 5KW |
| Frame Size | 71 ~ 132S |
| Enclosure: | IP44,IP54 |
| Insulation | Class B , F |
| Voltage | 220, 110 ~ 240V |
| Frequency: | 50Hz , 60Hz |
| Working duty | S1 |
| Speed: | 2 Pole , 4 Pole |
|
Note: |
|
| The voltage and frequency could be made according to your request. | |
|

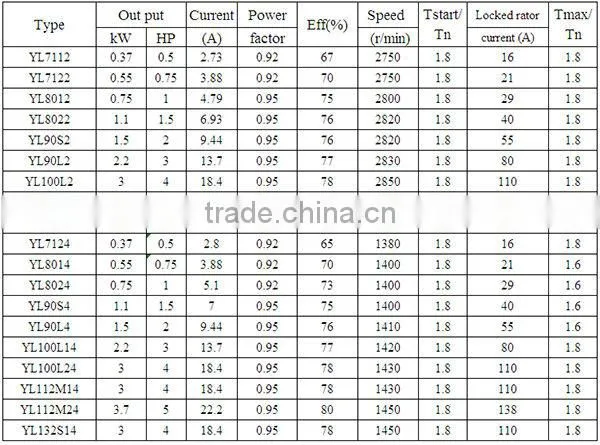

Technical Data | |
WHY CHOOSE US (OUR ADVANTAGE)
| WHAT WE DO AT DELLENT |
| • Having self-own plants producing for stators ,rotors and some related die-casting parts since from 1995 |
| • Stamping of lamination |
| • Rotor die-casting |
| • Winding and inserting – both manual and semi-automatically |
| • Vacuum varnishing |
| • Machining shaft, housing, end shields, etc… |
| • Rotor balancing |
| • Painting – both wet paint and powder coating |
| • Motor assembly |
| • Packing |
| • Inspecting spare parts every processing |
| • 100% test after each process and final test before packing. |
|
WHAT DELLENT CAN DO FOR CUSTOMERS |
| • Dellent supplies standard products to customers. |
| • Dellent supplies standard products under customers’ brands and packaging, etc |
| • Dellent develops any new products together with the customers. |
Company View
DELLETN PRODUCTS PACKING :
CERTIFICATION
