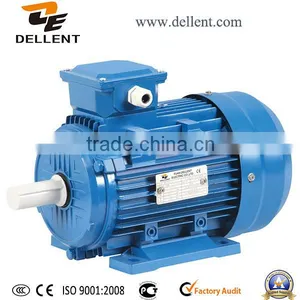

MS Three Phase ac Motor IEC,IE1, IE2 Standards
US$ 15 - 200
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
DELLENT
Model Number:
MS series three phase ac motor
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MS Three Phase Asynchronous Electric Motor of IEC,IE1, IE2 Standards From China SupplierUS$ 15 - 200MOQ: 50 Pieces -
MS Three Phase Asynchronous Electric Motor 220/380V of IEC,IE1, IE2 Standards From China SupplierUS$ 15 - 200MOQ: 50 Pieces
-
MS Three Phase Motor 220/380V IEC,IE1, IE2 StandardsUS$ 15 - 200MOQ: 50 Pieces
-
MS 3 Phase Electric Motor 220/380V of IEC,IE1, IE2 Standards From China Supplier Quality ChoiceUS$ 15 - 200MOQ: 50 Pieces
-
MS 3 Phase Electric Motor 220/380V of IEC,IE1, IE2 Standards atUS$ 15 - 200MOQ: 50 Pieces
Brand Name
DELLENT
Model Number
MS series three phase ac motor
Type
Asynchronous Motor
Frequency
50HZ , 60HZ
Output Power
0.09 KW to 20KW
Protect Feature
Waterproof
Phase
Three-phase
Certification
CCC, CE, CCC, CE, Other, CCC, CE, CCC, CE , SGS, ISO
AC Voltage
Other, 230/400V , 400V/690V
Place of Origin
Fujian, China
Efficiency
Other, IE1 , IE2
Specifications
MS three phase ac motor IEC,IE1, IE2 standards1, reliable quality performance
2, factory directly
3, CCC CE ISO
| MS three phase Induction ac motor IEC,IE1, IE2 standards from 0.09KW to 20KW | |
|
Technical Characteristics | |
| MS three phase motor rated outputs and frame sizes in accordance with IEC60034 standards | |
| Duty type S1(continuous duty)with sufficient thermal margin to withstand short overload | |
| Enclosure protection IP55 | |
| Insulation class F, temperature rise class B | |
| Maximum ambient 40°C | |
| Altitude≤1000m a.s.l. | |
| General Specifications | |
| Terminal box rotates 4x90° | |
| Removable feet, multi mount-terminal box left or right hand side | |
| Enclosed shaft key | |
Contruction Materials | |
| Frame – Aluminium | |
| End shields- Aluminium/Cast iron | |
| Fan cowl- steel | |
| Fan-Plastic | |
| Shaft- Medium carbon steel(stainless available on request) | |
| Terminal box – Aluminium | |
| Power Range | 0.09 ~ 20KW |
| Frame Size | 56 ~ 160 |
| Enclosure: | IP54,IP55 |
| Insulation | Class F,ClassB |
| Voltage | 230/400V,400/690V |
| Frequency: | 50Hz/60Hz |
| Working duty | S1,S2,S3 |
| Speed: | 2 Pole , 4 Pole ,6 Pole & 8Pole |
| Note: | |
The voltage and frequency could be made according to your request. | |
MS Seriese electric motors technical datas
| Model | Output | Voltage | Frequency | Current | Eff | Power Factor | Speed | |
| (KW) | (V) | (Hz) | (A) | 100(%) | 75(%) | (r/min) | ||
| MS631-2 | 0.18 | 380 | 50 | 0.53 | 65 | 63.1 | 0.8 | 2720 |
| MS632-2 | 0.25 | 380 | 50 | 0.69 | 68 | 65.1 | 0.81 | 2720 |
| MS631-4 | 0.12 | 380 | 50 | 0.42 | 57 | 56.1 | 0.72 | 1310 |
| MS632-4 | 0.18 | 380 | 50 | 0.62 | 60 | 58.5 | 0.73 | 1310 |
| MS711-2 | 0.37 | 380 | 50 | 0.99 | 70 | 69 | 0.81 | 2740 |
| MS712-2 | 0.55 | 380 | 50 | 1.4 | 73 | 71.2 | 0.82 | 2740 |
| MS711-4 | 0.25 | 380 | 50 | 0.79 | 65 | 62.4 | 0.74 | 1330 |
| MS712-4 | 0.37 | 380 | 50 | 1.12 | 67 | 65.3 | 0.75 | 1330 |
| MS801-2 | 0.75 | 380 | 50 | 1.78 | 76.3 | 74.3 | 0.84 | 2836 |
| MS802-2 | 1.1 | 380 | 50 | 2.56 | 77.8 | 75.9 | 0.84 | 2840 |
| MS801-4 | 0.55 | 380 | 50 | 1.52 | 71.4 | 69.5 | 0.76 | 1410 |
| MS802-4 | 0.75 | 380 | 50 | 2 | 73.8 | 72.1 | 0.77 | 1415 |
| MS90S-2 | 1.5 | 380 | 50 | 3.43 | 79.1 | 77.2 | 0.84 | 2840 |
| MS90L-2 | 2.2 | 380 | 50 | 4.85 | 81 | 80 | 0.75 | 2840 |
| MS90S-4 | 1.1 | 380 | 50 | 2.86 | 75.8 | 73.8 | 0.77 | 1425 |
WHY CHOOSE US (OUR ADVANTAGE) |
| WHAT WE DO AT DELLENT |
| • Having self-own plants producing for stators ,rotors and some related die-casting parts since from 1995 |
| • Stamping of lamination |
| • Rotor die-casting |
| • Winding and inserting – both manual and semi-automatically |
| • Vacuum varnishing |
| • Machining shaft, housing, end shields, etc… |
| • Rotor balancing |
| • Painting – both wet paint and powder coating |
| • Motor assembly |
| • Packing |
| • Inspecting spare parts every processing |
| • 100% test after each process and final test before packing. |
| WHAT DELLENT CAN DO FOR CUSTOMERS |
| • Dellent supplies standard products to customers. |
| • Dellent supplies standard products under customers’ brands and packaging, etc |
| • Dellent develops any new products together with the customers. |
