Roller Idler Conveyor Idler Conveyor Roller

Roller Idler Conveyor Idler Conveyor Roller thumbnail-1
Roller Idler Conveyor Idler Conveyor Roller photo-1
US$ 3 - 50 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Huayun
Model Number:
HY-T1
Contact Supplier Request Quote Chat Now
Baoding Huayun Conveyor Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Huayun
Model Number HY-T1

Conveyor Roller(Idlers) For Conveying Systems

HuaYun brand conveyor roller/idler has been exported to more than 30 countries all over the world and particularly suitable for South America market. we have professional engineers and all of them have rich experience in this field, we can design the goods independently and make roller by your design

Certification of HuaYun Brand conveyor roller, steel roller

HuaYun brand conveyor roller/idler have been certificated by the ISO9001/2008 and Safety Certificate for Mining Products. With high quality and competitive prices, our products enjoy a good reputation both in home and the abroad.

our roller can meet the standards   GB, ISO, CEMA, DIN, JIS, ETC   roller idler conveyor idler conveyor rollerroller idler conveyor idler conveyor roller



Production capacity: as usual 5000 pieces/ week and urgent order is acceptable



Application of conveyor roller idlers

roller idler conveyor idler conveyor roller

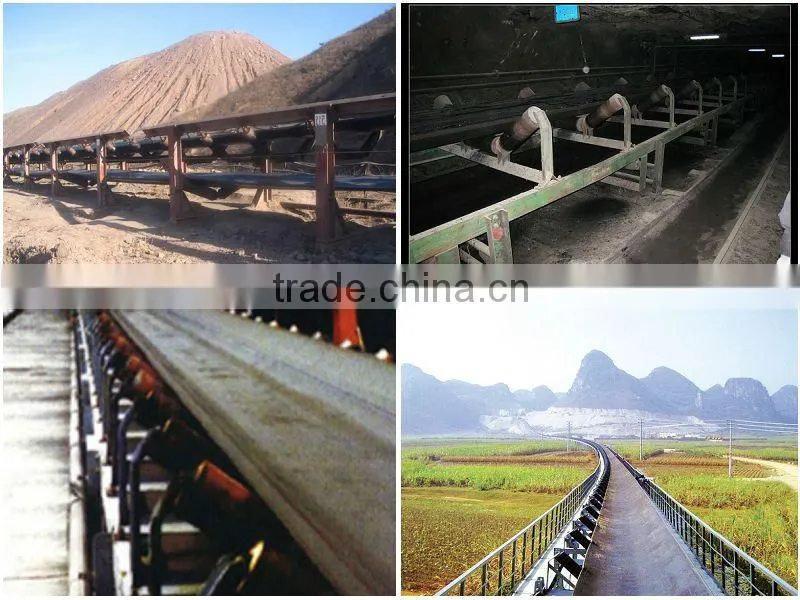

Conveyor roller/idler are used in areas such as coal mining industry, cement industry, power plant and port etc.

Our Huayun conveyor machinery Limited Company is a factory producing all kinds of conveyor roller/idlers.

 roller idler conveyor idler conveyor roller

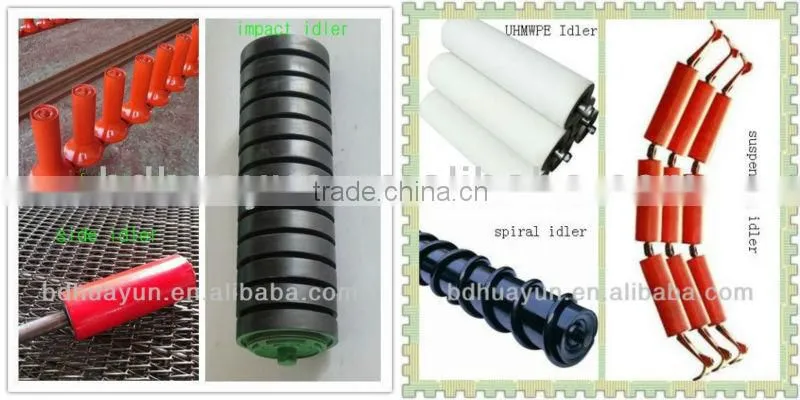

Friction idler/roller: it can effectively prevent the belt running deviation.

Side idler/roller: Good ability of correcting deviation.

Impact roller/idler: Reduce the belt being weared.

UHMWPE roller/idler:Good weather and aging resistance

Spiral idler/roller: clean and self-aligning roller.

Suspension idler/roller: used in the pit

Nylon roller/idler:Low noise



We can make the roller according to your drawing or as your requirement

Advantages of our conveyor roller/idler:

(1)Easy installation and nice flexibility;

(2)Low friction coefficient;

(3)Dust- and water-proof;

(4)Fine welding technique ensure roller with low vibration and nois

(5)Electrostatic spraying technic makes the roller more durable and good-looking;

(6)Strict inspection standard ensures our high quality product.

specification of HuaYun conveyor roller/idler



Roller Dia (mm) Length Scope(mm) Shaft Dia(mm) Bearings Type(Min-Max) Roller’s Tube Thickness
50 150-2500 20;25 204 3.2mm-4.0mm
63.5 20;25 204
76 20;25 204 205
89 20;25 204 205 3.2mm-6.0mm
102 20;25;30 204 205 305 3.5mm-6.0mm
108 20;25;30 204 205 305 306
114 20;25;30 205 206 305 306
127 20;25;30 204 205 305 306
133 20;25;30 205 206 207 305 306
140 20;25;30 205 206 207 305 306
152 20;25;30 205 206 207 305 306 307 308 4.0mm-6.0mm
159 20;25;30;40;45 205 206 207 305 306 307 308
165 20;25;30;40;45 207 305 306 307 308 4.5mm-6.0mm
177.8 20;25;30;40;45 207 306 307308 309
190.7 20;25;30;40;45 207 306 307308 309
194 20;25;30;40;45 207 307 308 309 310
219 20;25;30;40;45 308 309 310

Conveyor idler Testing standard

1.End travel<0.5

2.Axial application of force(15KN) cudgel and axle don’t come away

3.1M free flat slump: Weld joint without harm

                                  Axial displacement ≤1.5

4.180/KG(cm) free vertical slump:Weld joint without harm

                                  Axial displacement ≤1.5

Prodcution process of  Mine belt conveyor roller

 A line: conveyor roller pipe processing line

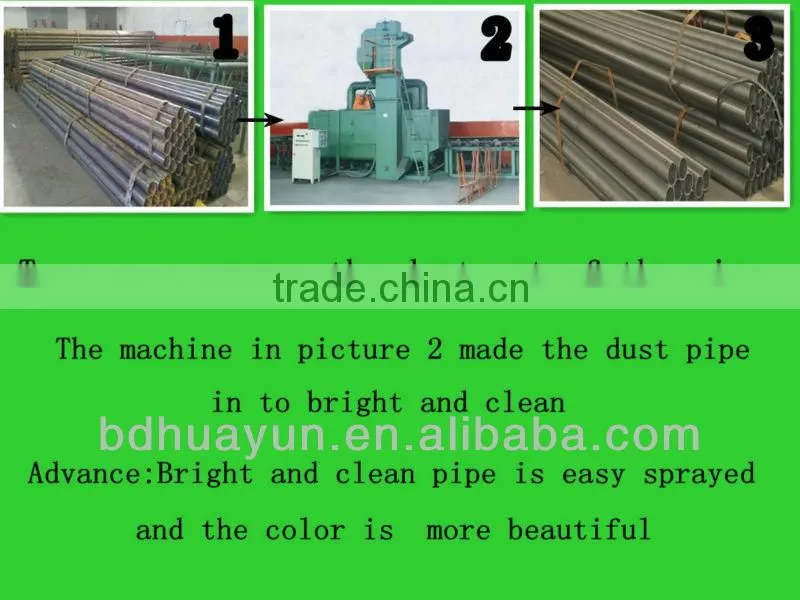

      conveyor roller pipe type one: removethe dustroller idler conveyor idler conveyor roller

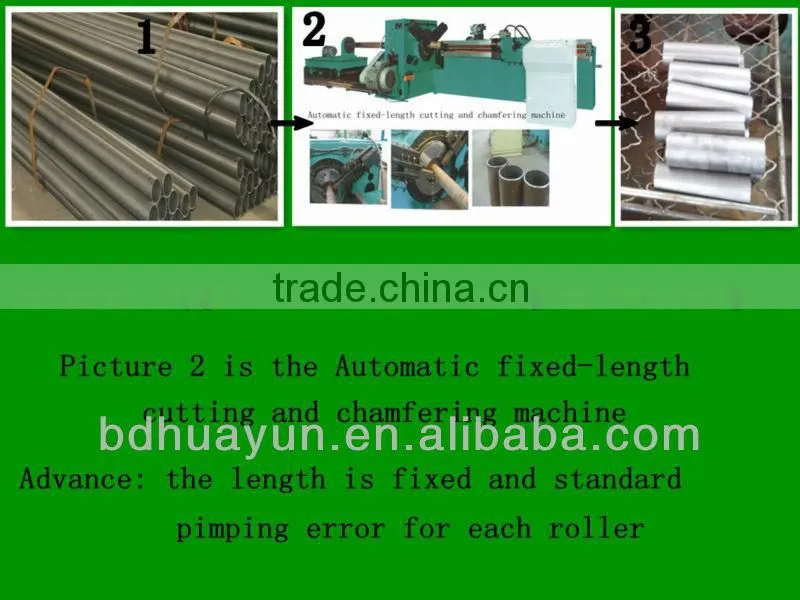

 steel roller pipe type two: cut the long roller pipe into short

roller idler conveyor idler conveyor roller

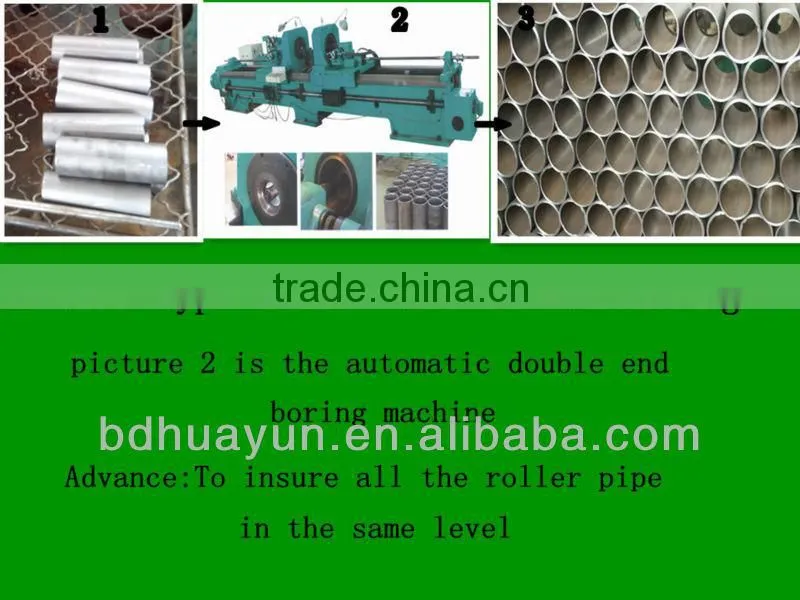

Roller pipe type three: double end boring
roller idler conveyor idler conveyor roller

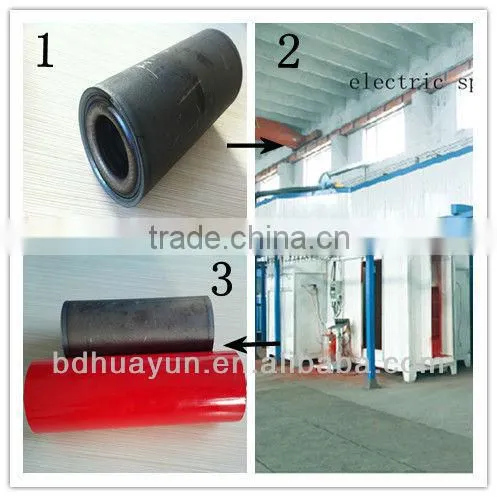

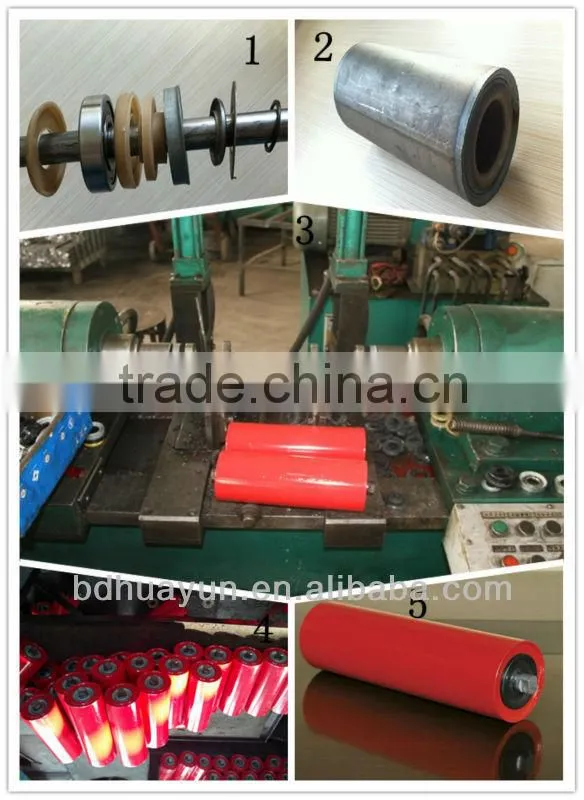

Roller pipe type four: press bearing into the pipe and weld it roller idler conveyor idler conveyor roller Roller pipe type five:Painting and surface treatment for conveyor roller
roller idler conveyor idler conveyor roller

Our conveyor roller are used electric static painting or as per customers' requirements



B Line: conveyor roller shaft processing line

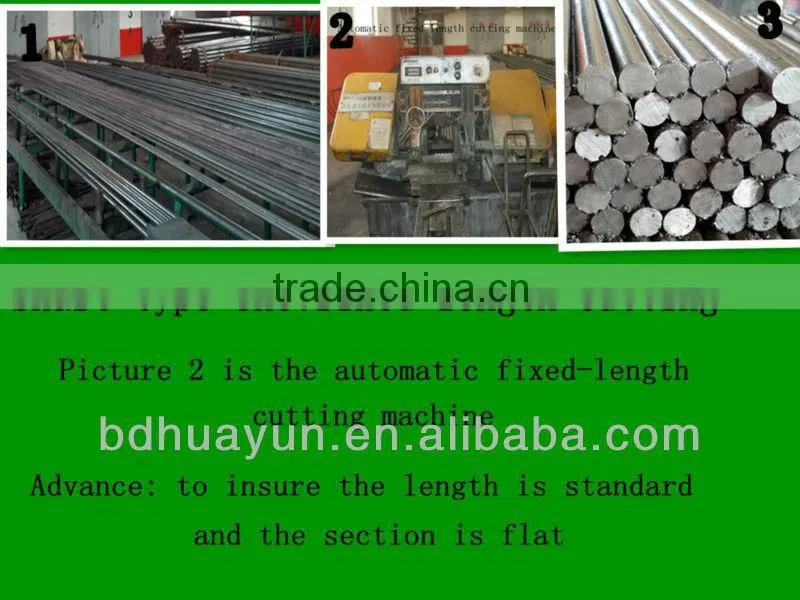

   Roller shaft type one:cut the shaft into short roller idler conveyor idler conveyor roller

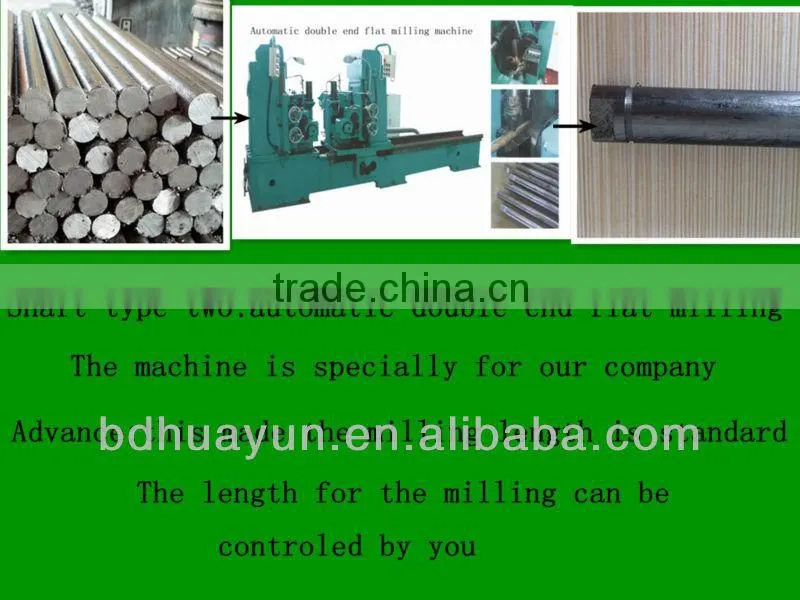

  Idler shaft type two:milling the shaftroller idler conveyor idler conveyor roller

A line +B line= Conveyor roller idler

roller idler conveyor idler conveyor roller

 Usually use plastic or standard wooden box for conveyor roller or as per your requirements

Our company and our client

roller idler conveyor idler conveyor roller

A lot of foreigners are visiting our conveyor steel roller company.
