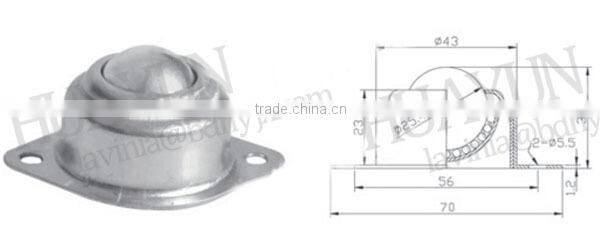

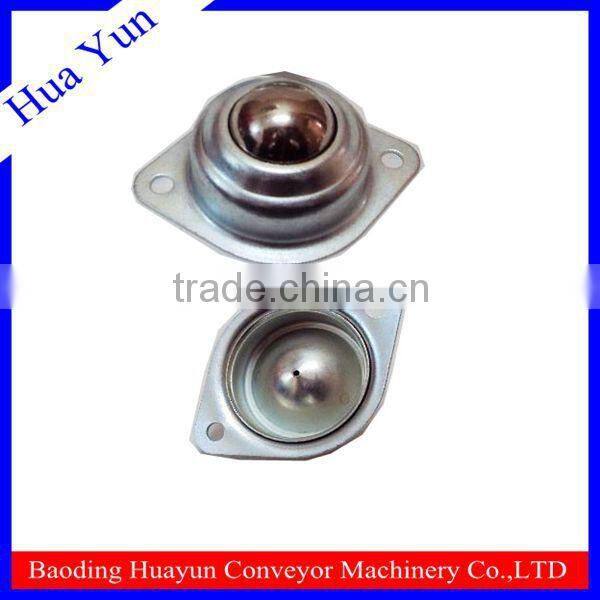

1 inch ball transfer unit galvanized steel transfer ball steel ball bearing
Ball transfer units are a multi-directional, material handling system.
Moving in all directions, ball transfer units enable the easy transfer of light and heavy loads - changing the direction of motion instantly.
1. Feature:
1) could realize the convey of every direction;
2) simple structure, running smoothly;
3) accodring to the different environment, optional for carbon steel, stainless steel or other material;
4) the bootom of goods must be flat and rigid;
5) lube oil is needed in operation.
| Item | ball transfer unit galvanized steel transfer ball steel ball bearing for conveyor line transfer table |
| Body | Galvanized steel / Carbon steel zinc plated |
| Ball material | Q235 carbon steel |
| Ball diameter | 1 inch 25.4mm |
| Static load | 25kg |
| Dynamic load | 30kg |
| Application | used for conveyor line transfer table |
2.List of CY series ball transfer
Model No. |
Ball size |
Loading capacity Maximum/Breaking |
CY-15A |
15MM |
10KG/15KG |
CY-18A |
18MM |
20KG/25KG |
CY-25A |
25.4MM |
25KG/30KG |
CY-30A |
30MM |
40KG/50KG |
CY-38A |
38MM |
60KG/80KG |
|
|
|
CY-16B |
16MM |
10KG/15KG |
CY-25B |
25MM |
25KG/30KG |
CY-30B |
30MM |
35KG/40KG |
CY-38B |
38MM |
45KG/55KG |
|
|
|
CY-8H |
8MM |
3KG/5KG |
CY-15H |
15MM |
15KG/25KG |
CY-22H |
22MM |
40KG/55KG |
CY-30H |
30MM |
70KG/85KG |
3. Application
As a component that can transport unit product turning, circumgyratetion and pushing conveniently, ball transfer has wide application transmission, feeding, maching system, processes the machinery and in the pack machinery supporting facility.
Ball transfer material may be selected according to the different using environment, situation and purpose. (please use lubricating oil when it works.
4. Know more information about the transfer ball, please contact us via the following ways:
