Dellent 100kva generator with deutz technology
Product Description
|
This series generators are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case using. alternator 5kwalternator price list ac alternator , three phase ac alternator, STC alternator, stc three phase ac alternator, ac three phase alternator The generators with rotary field type and adopt harmonic excitation system, easy operation and maintenance. alternator price listcheap alternators for saleschina cheap generators, china alternators, alibaba The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.
They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor. alternator pulley alternator 5kwalternators prices in india cheap alternators for sale ac alternator , three phase ac alternator, STC alternator, stc three phase ac alternator, ac three phase alternator | |||||||||||||||
|
Operating Conditions
|
Three phase alternator STC Series Technical Datas
| Model | Output (kW) | Voltage(V) | Current (A) | Power factor | Speed | Pole number | |
| KVA | kW | (cos) | (r.p.m) | ||||
| STC-3 | 3.8 | 3 | 400 | 5.4 | 0.8 | 1500 | 4 |
| STC-5 | 6.3 | 5 | 400 | 9 | 0.8 | 1500 | 4 |
| STC-7.5 | 9.4 | 7.5 | 400 | 13.5 | 0.8 | 1500 | 4 |
| STC-8 | 10 | 8 | 400 | 14.4 | 0.8 | 1500 | 4 |
| STC-10 | 12.5 | 10 | 400 | 18.1 | 0.8 | 1500 | 4 |
| STC-12 | 15 | 12 | 400 | 21.7 | 0.8 | 1500 | 4 |
| STC-15 | 18.8 | 15 | 400 | 27.1 | 0.8 | 1500 | 4 |
| STC-20 | 25 | 20 | 400 | 36.1 | 0.8 | 1500 | 4 |
| STC-24 | 30 | 24 | 400 | 43.3 | 0.8 | 1500 | 4 |
| STC-30 | 37.5 | 30 | 400 | 54.1 | 0.8 | 1500 | 4 |
| STC-40 | 50 | 40 | 400 | 72.2 | 0.8 | 1500 | 4 |
| STC-50 | 62.5 | 50 | 400 | 90.2 | 0.8 | 1500 | 4 |

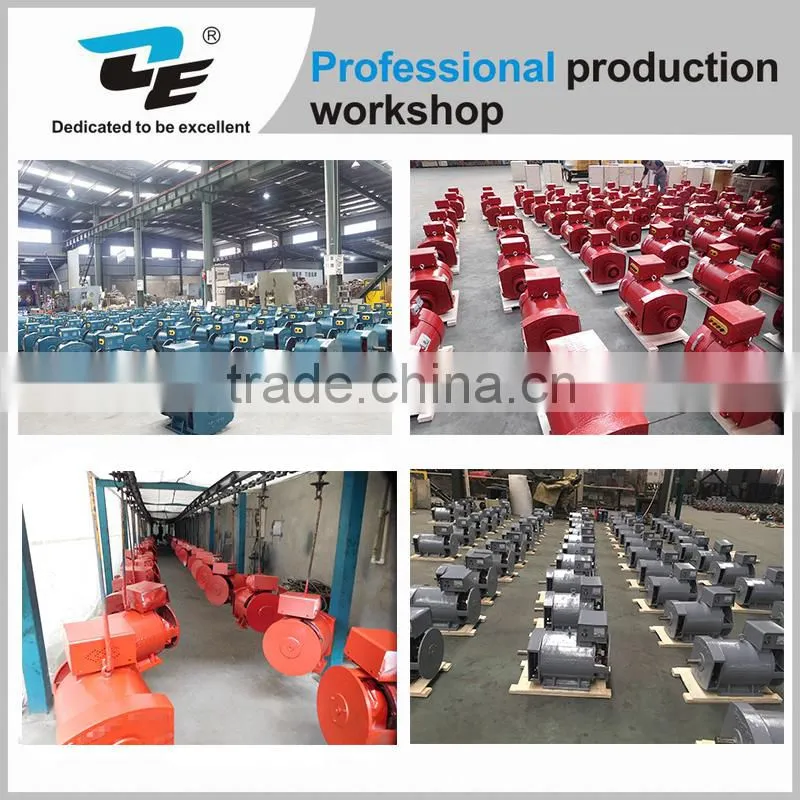

| WHAT WE DO AT DELLENT |
| • Having self-own plants producing for stators ,rotors and some related die-casting parts since from 1995 |
| • Stamping of lamination alternators prices in india |
| • Rotor die-casting alternator pulley |
| • Winding and inserting – both manual and semi-automatically |
| • Vacuum varnishing three phase alternator |
| • Machining shaft, housing, end shields, etc… |
| • Rotor balancing alternator pulley |
| • Painting – both wet paint and powder coating |
| • Assembling alternator pulley |

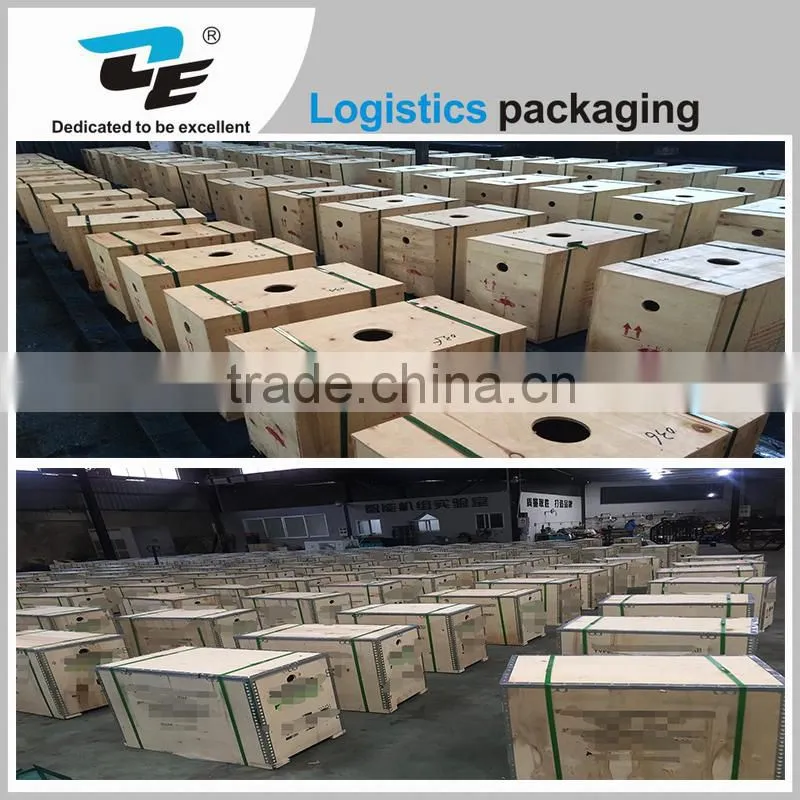

| • Packing three phase alternator |
| • Inspecting spare parts every processing three phase alternator |
| • 100% test after each process and final test before packing. |
|
WHAT DELLENT CAN DO FOR CUSTOMERS |
| • Dellent supplies standard products to customers. |
| • Dellent supplies standard products under customers’ brands and packaging, etc |
| • Dellent develops any new products together with the customers. |
