Specifications
1.plastic cup lid making machine use to produce PS,PVC,PET cup lid,tray,plastic cover,small plastic container2.any size,design

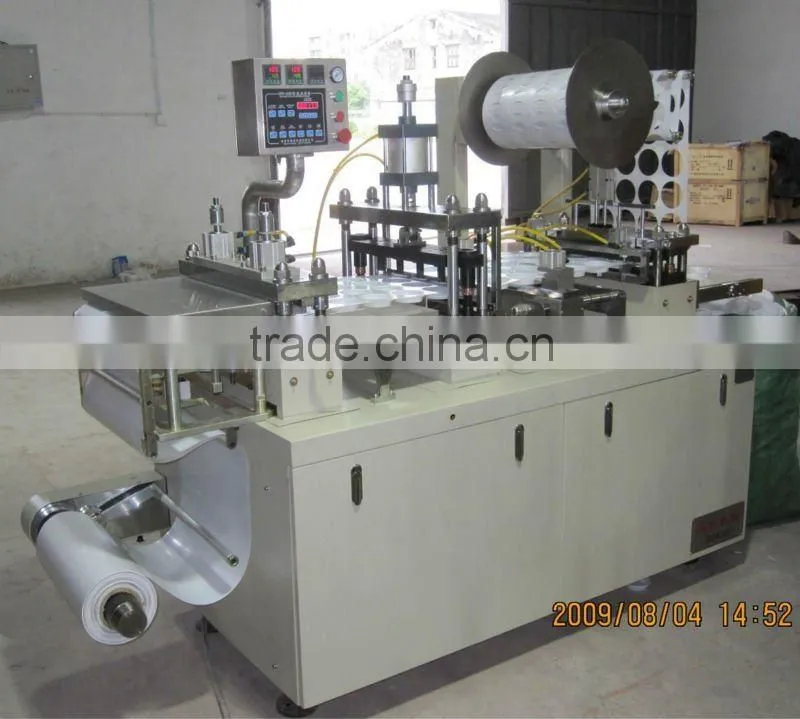

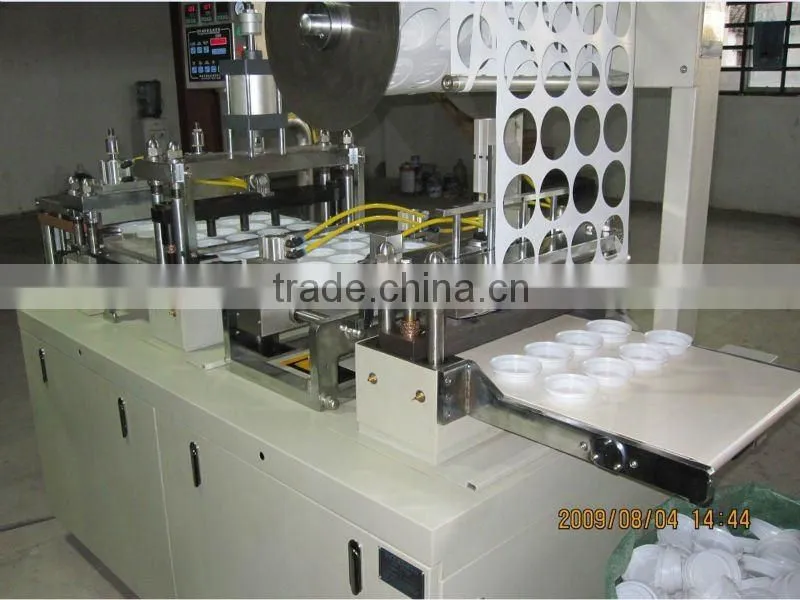

plastic cup lid making machine:

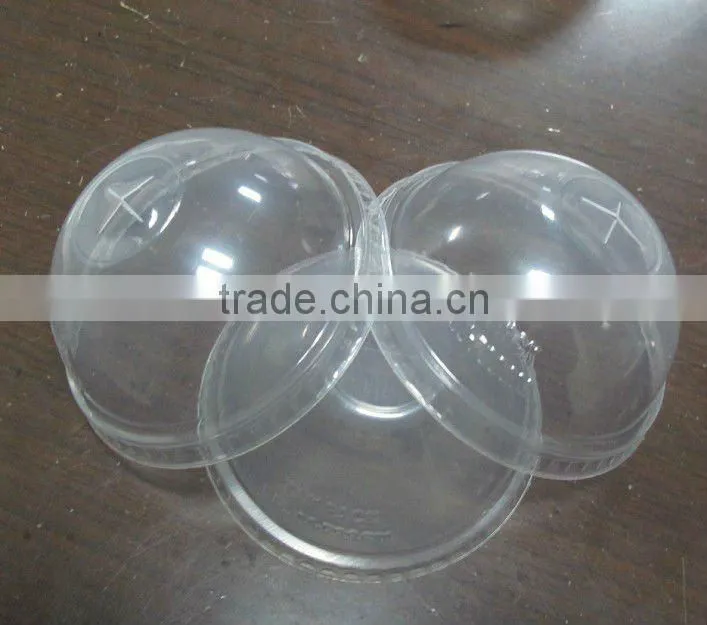

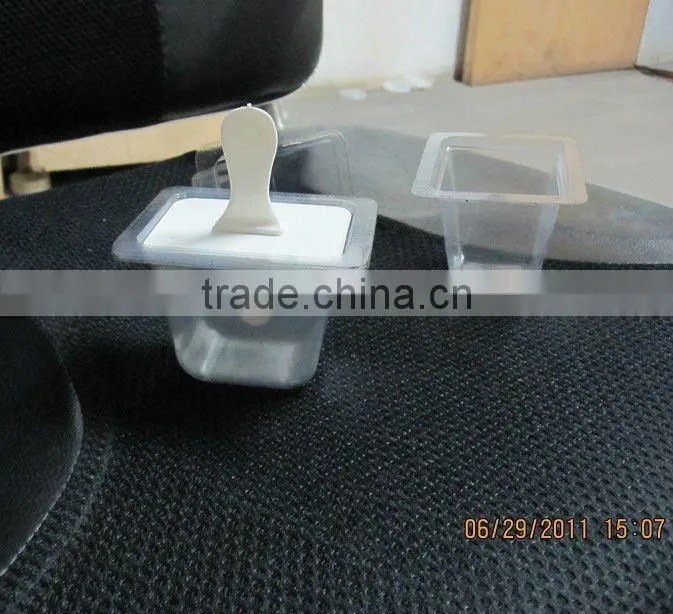

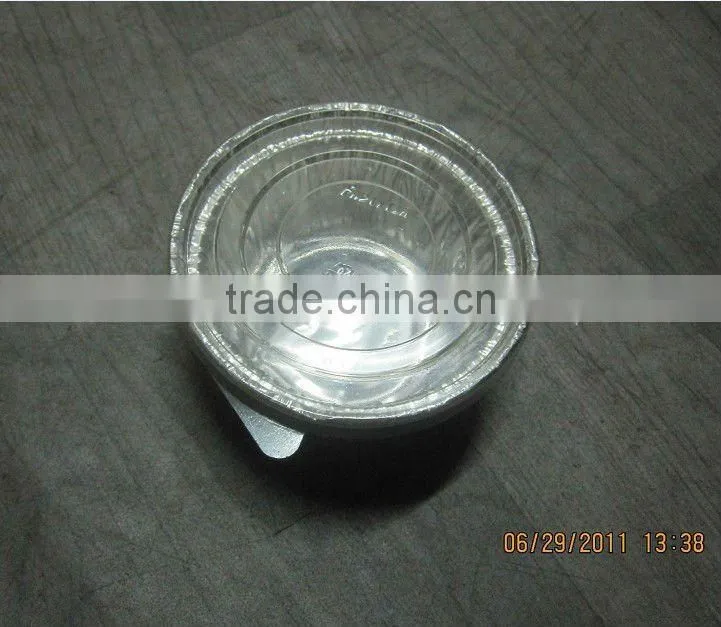

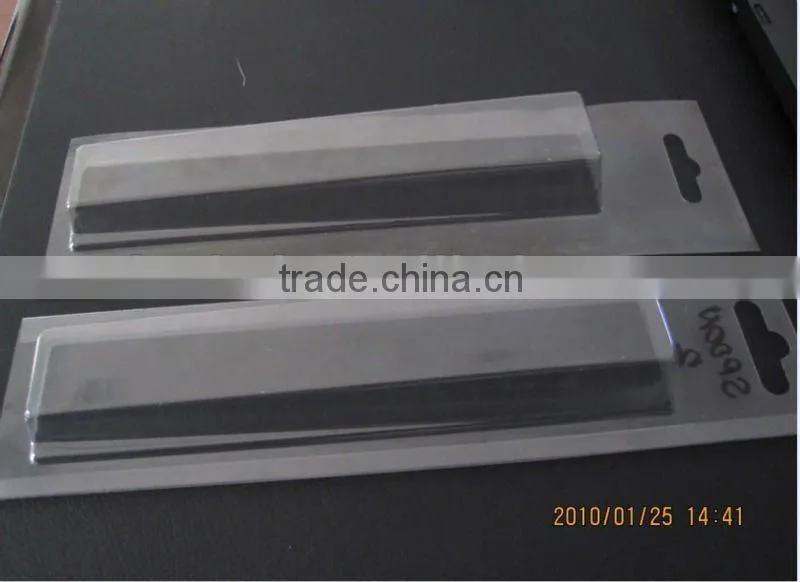

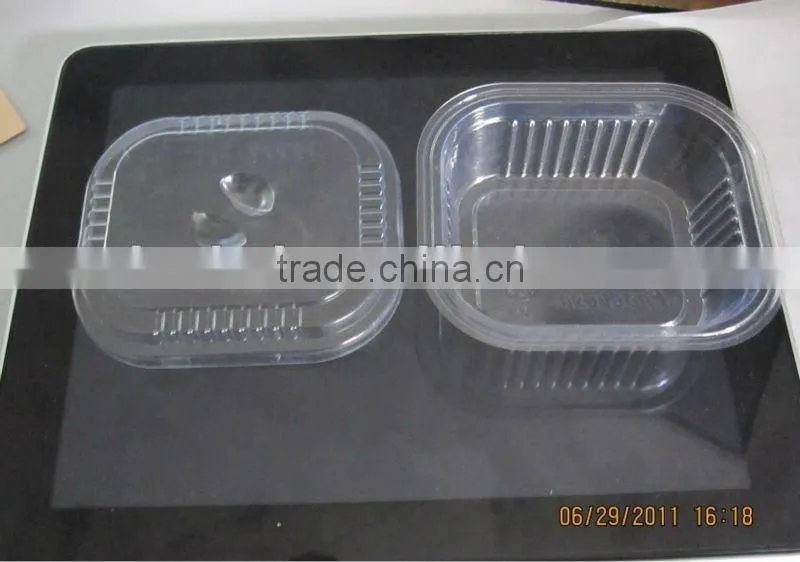

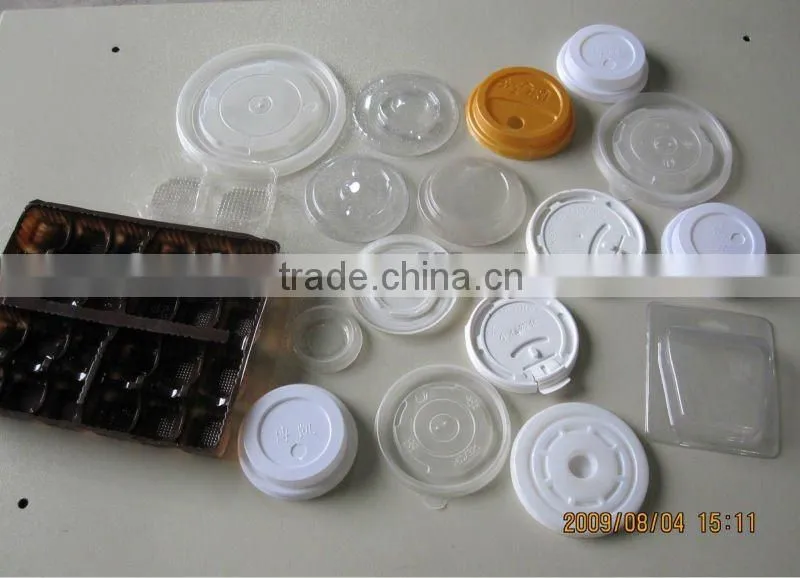

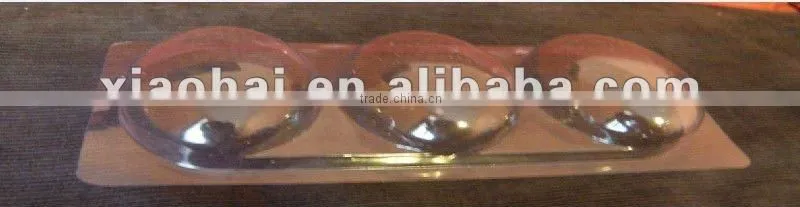

Applicable Object: PS/PVC/PET Plastic cup lid,Hardware tray,food tray,pharmaceutical tray etc.
Technical Parameters:
Max Forimng Area |
400×170 mm |
Max Forimng Depth |
30 mm |
The Power of Heater |
1.5 KW*2 pcs |
Motor Power |
1.5 KW |
Total Power of Electric Source |
380V 50Hz 4.6 KW |
Punching Frequency (output) |
10 -32 times/min (according to your sample's size) |
Mould Cooling |
Tap water or circulating water 60 L/S |
Air Consumptions |
>0.3 m³/min |
Air Pressure |
0.4—0.7 MPa |
Applicable Material |
(0.15—0.5)× 400 mm(Width) |
Dimensions |
2700×830×1450 mm |
Weight |
800 Kg |
we also have production line:
1.MX-700L plastic sheet extruder:use to produce PP,PS sheet from raw material.
2.CK660-B thermoforming machine:feeding PP,PS sheet in this machine to produce cups,plates and other plastic container.
3.curling machine:curling the edge of cup. It’s according to your sample.
4.cup stacking machine:use to stack the cup automatically. also you can choose worker to stack the cups.
5. F650 grinder/crusher: it is used for recycle the waste sheet.
6.Mixer: mixing the new material and the recycle material
oling tower: the sheet extruder MX-700L and MX660-B thermoforming machine running need the cool water for working.
8. Plastic cup lid making machine: use to produce cup lid.
9.cup printing machine:use to print picture/design on the cup.
10. counting and packing machine:use to counting and packing the cup in plastic bag. also you can choose worker to count and pack the cups.
11. Air compressor:extruder and thermoforming machine and stacking machine running need the air for working.
products:
