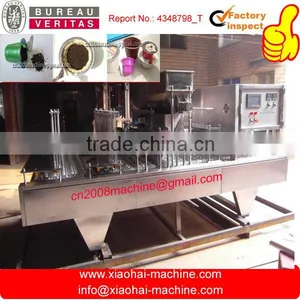

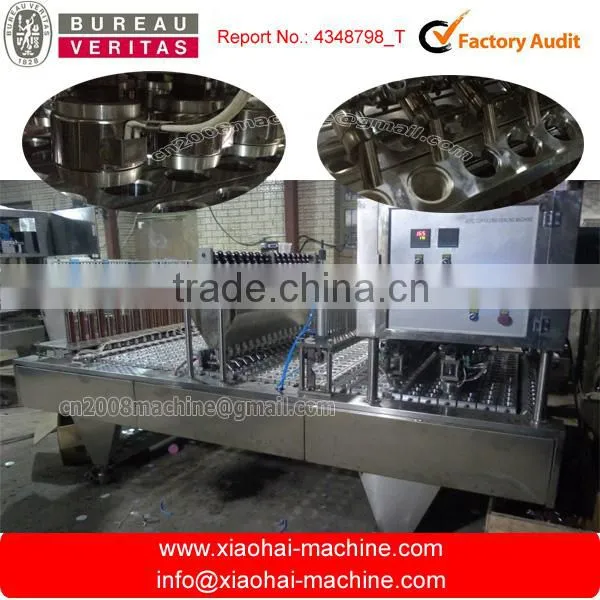

Coffee capsule filling mahine

Specifications

1.automatic feed coffee capsules/cups
2.automatic fill coffee powder as precise weight 3g, 5g,7g,
3.automatic feed foil,seal

     ♣      Coffee capsule filling mahine







Procedure:







   1. Usage:



GL series coffee capsule filling and sealing machine is used for coffee capsules filling with coffee powders(or other kinds of powder products like tea powder, milk powder, rice, wheat powder, cocoa powder etc. )



We have successful experience design machines according to customer’s requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.





   2. Characters:

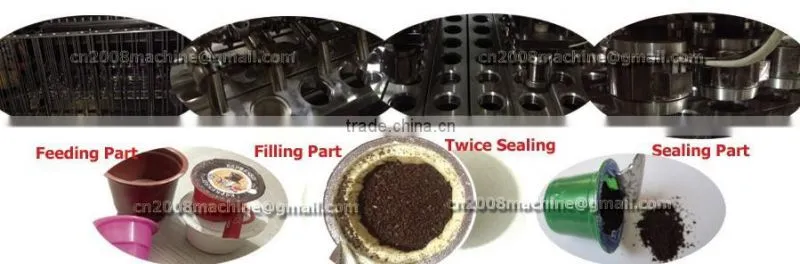

1. automatic feed coffee capsules/cups onto machine conveyor belt

2. automatic fill coffee powder as precise weight 3g, 5g,7g, 10g etc and press the powder tightly.

3. automatic feed foil and twice heat seal .

4. automatic output final capsule/cup (could connect to conveyor belt)





  3. Main Technical Parameters:



Machine Model	GL-4	GL-8	GL-16
Suitable Product	Powder product as coffee, chocolate, tea, milk powder, sugar etc.
Suitable film	Precut foil suggested (film roll also available)
Capacity	1440 pcs/hr	2880 pcs/hr	5800 pcs/hr
Filling range	3g,5g,7g.10g etc adjustable
Voltage	380V/220V 50hz design upon your needs
Power	4.5Kw	6.5Kw	10Kw
Dimension (LxWxH)	3000X760X1650(mm)	3000X930X1650(mm)	3000X1580X1650(mm)
Weight	800Kg	950Kg	1100Kg





 The mould of the machine for the coffee cup is made according to customers’ cup.

 The machine can be customized depending on your requirements.

 So if you have any demands, please let me know.
