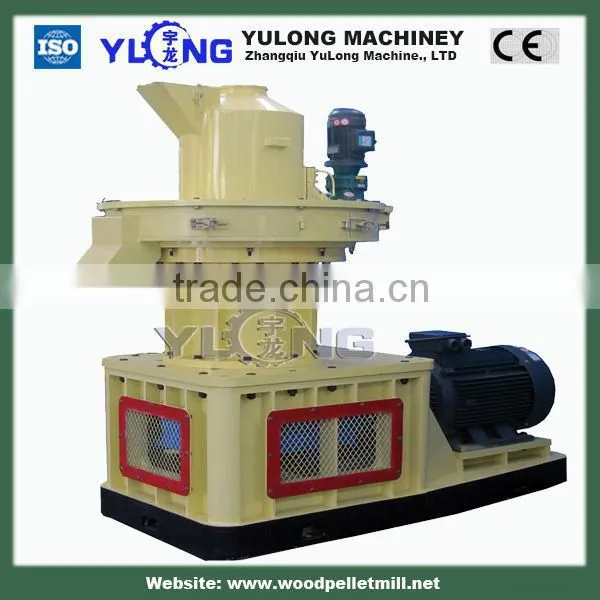

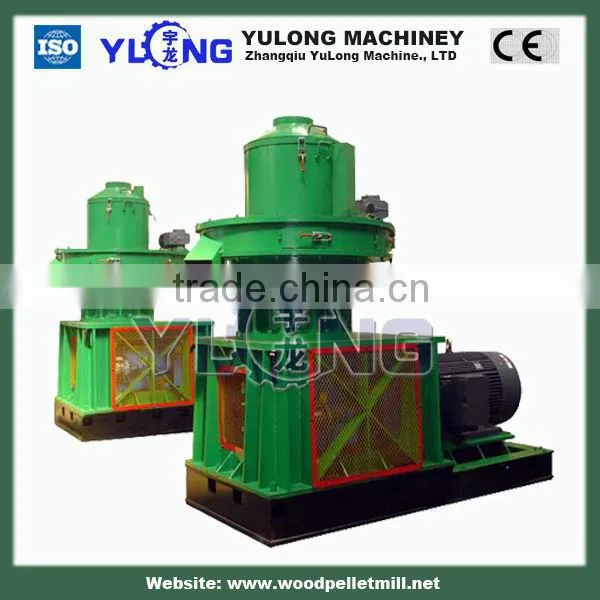

Help CenterXGJ 560 Efficient Centrifugal Pellet Mill
Related Products
-
YULONG Pellet Mill SKJ2-250US$ 1,000 - 10,000MOQ: 1 Set -
Horizontal Chain MillUS$ 6,000 - 17,000MOQ: 1 Set
-
Drum Chipper for Wood Log With CE CertificationsUS$ 8,000 - 49,000MOQ: 1 Set
-
Wood Pellet Maker Hard Wood / Rice Husk / Rice StrawUS$ 1,100 - 25,000MOQ: 1 Set
-
Yulong Bio-fertilizer Machinery With CE CertificateUS$ 1,200 - 23,000MOQ: 1 Set
Specifications
Double Layer Ring Die/Patent Product
Introduction:
XGJ series pellet press is our initiative patented products in China through meticulous research and development.
The roller are made by abrasion-proof alloy steel, improving the using life of spare parts greatly;
The series pellet press absorbs the quintessence at home and abroad, the heart part adopts “ double-layer die” as the unique structure; wood pellet machine the rollers are made by abrasion-proof alloy steel, improve the using life of spare parts greatly; For the drive parts, the grease is filtrated automatically, lubricated properly. Special design, rational structure,low power consumption and high efficiency, sturdy and durable, and supply the gap of vertical feeding of ring-die wood pellet machine at home, reach to the international advanced level.
1.Vertical die, feeding vertically; No arching of raw materials, easy for heating dissipation.
2.die fixed, rollers rotating, materials centrifugal, evenly distributed around.
3.double-layer dies, up and down dual-use, high capacity, saving energy.
4.Independent lubrication:;high pressure filtration, clean and unblocked.
5.Independent and frequency changeable cutting device, ensure formation rate of pellets.
| model | capacity(t/h) | power(kw) | size of the product(mm) | weight(t) | size(mm) |
| XGJ550 | 0.8-1.2 | 75 | 4-12 | 6.04 | 2630*1000*2400 |
| XGJ560 | 1-1.5 | 90 | 4-12 | 6.1 | 2600*1300*2300 |
| XGJ580 | 1.5-2.5 | 160 | 4-12 | 7 | 2900*1300*2400 |
| XGJ850 | 2.5-3.5 | 220 | 4-12 | 14.5 | 3300*1400*3100 |
| XGJ880 | 3-5 | 315 | 4-12 | 18 | 3800*1680*3400 |
| XGJ1050 | 5-8 | 360-450 | 4-30 | ||
| XGJ1250 | 8-12 | 550-660 | 4-30 |
XGJ560
XGJ580
XGJ850
