Specifications

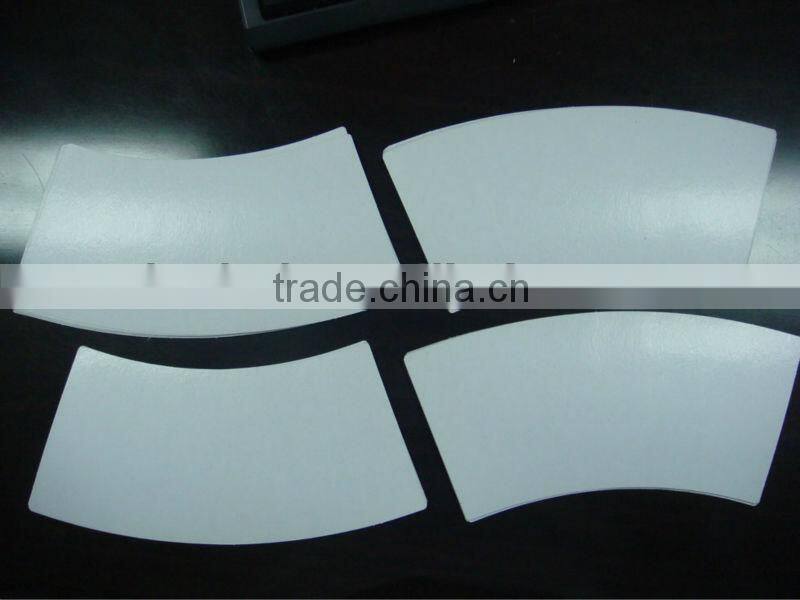

1. Auto process for roll paper to die cutting sheet paper2. used for paper cup and palte
3.high speed and safe labor work

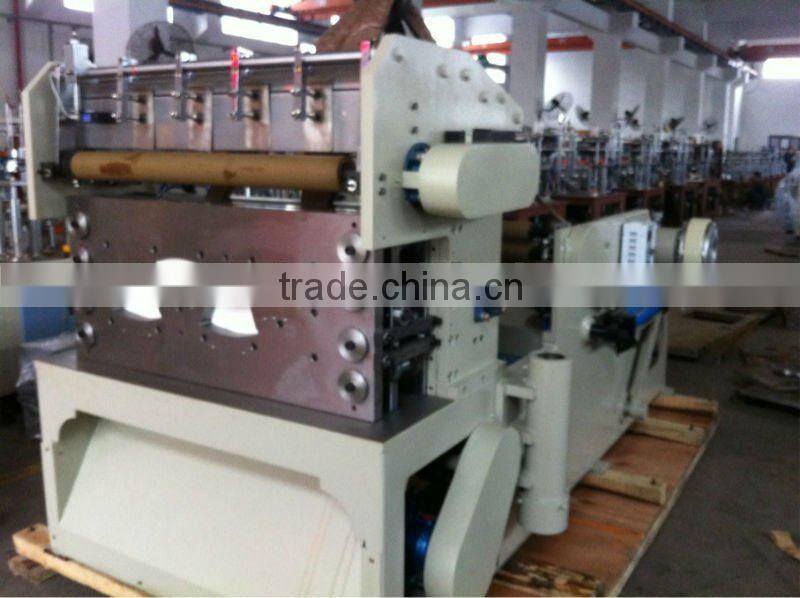

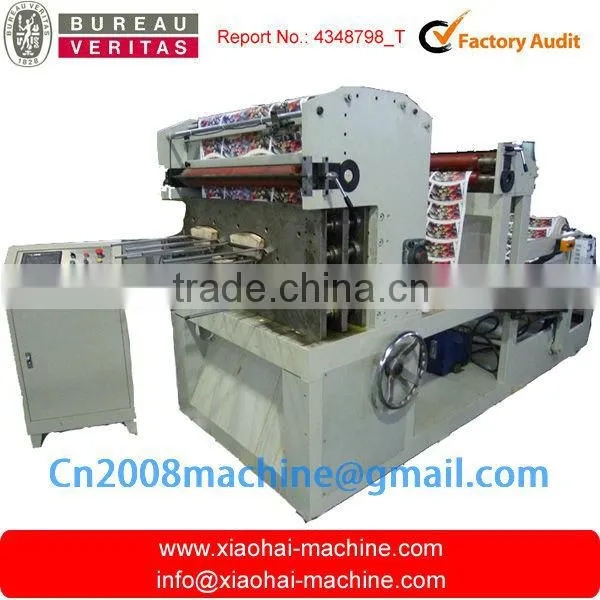

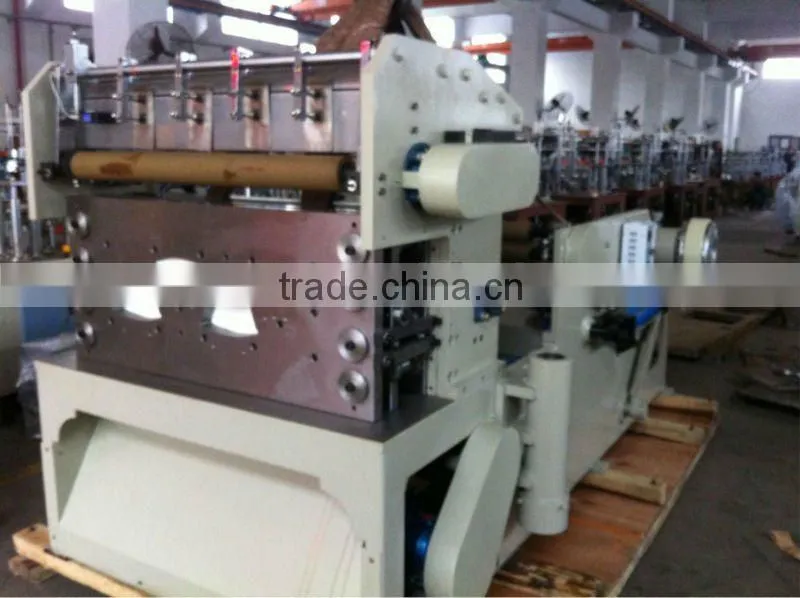

paper roll die cutting machine
automatic die cutting machine for die cutting roll paper ,it is a good partner for printing machine.
1, Features This die cutting machine is our latest developing machine. It is controlled by PLC,and Touch screen.Can change knife moulds easily for punching various sizes of paper piece, it is a good partner for the flexo printer.
Through change the mould ,it can die cutting a lot of kind of shape paper
Technical data
Technical Parameter:
1. Max Paper Width: 850mm
2. Max Speed: 200 Strokes/min-
3. Control System: AC Servo Motor (Delta, 1000kw)
4. Max unwinding diameter: 1200mm
5. Max rewinding diameter: 1200mm.
6. Electric Power: 5 KW
7. Net Weight: 1500 Kg
8. Dimension of Machine: 3150mm×1830mm×1900mm
for details,please contact our company.
