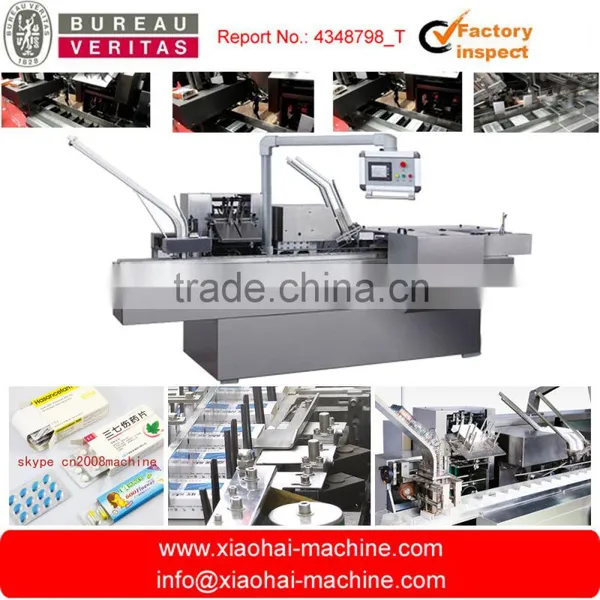

cartoning machine is applied for medicine, foodstuff, cosmetic and small vessel packing,etc.we have more than 15 years experience in making the pharmacy machine.we can offer you different kinds of pharmacy machine.
Future:
1. cartoning machine is suitable for medicine, Alu-plastic plate cosmetic, artwork, foodstuff as well as analogous objects package.
2. Automatically execute folding, box forming, open box, cartoning, printing, sealing.
3. Adopt with PLC human-machine interface, photoelectric control parts movements, in case something abnormal happens, will stop running automatically and displaying the reason for clearing.
4. It can be using separately, also can connect with blister packing machine or other equipments made up a production line.
Feature
1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2.Adopt human-machine operation system.
3.Automatically displaying device for trouble, speed and finished products counting.
4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5.No products not suction leaflet, no leaflet not suction carton .
6.Automatic detection and rejection device for lacking blister goods and leaflets.
7.Protecting automatically for overloading.
8.stable performance , operation is easy
Main technical parameters | ||
Working speed |
50-100 boxes/min |
|
Box |
gsm requirement |
250-350g/m2 |
|
Dimension rangeL×W×H Max Min |
250x170x60mm 50x20x15mm |
|
Leaflet |
Gsm requirement |
55-65g/m2 |
|
Dimension rangeL×W×H Max Min |
260x190mm 100x100mm |
|
Fold range |
(1-4) fold |
|
Compressed air |
Working pressure |
≥0.6mpa |
Air consumption |
120-160L/min |
|
Power |
380/220V/50Hz |
|
Motor power |
1.5kw |
|
Machine dimension(L×W×H) |
3300mm×1350mm×1650mm |
|
Machine weight |
1200kg |
|
NOte:Due to stand or fall packing may direct effect final packing quality, therefore the machine requires for relative high requirements. Generally adopt the 250g/m2—350g/m2 import white plate box as well as for some facture technic requirements.
