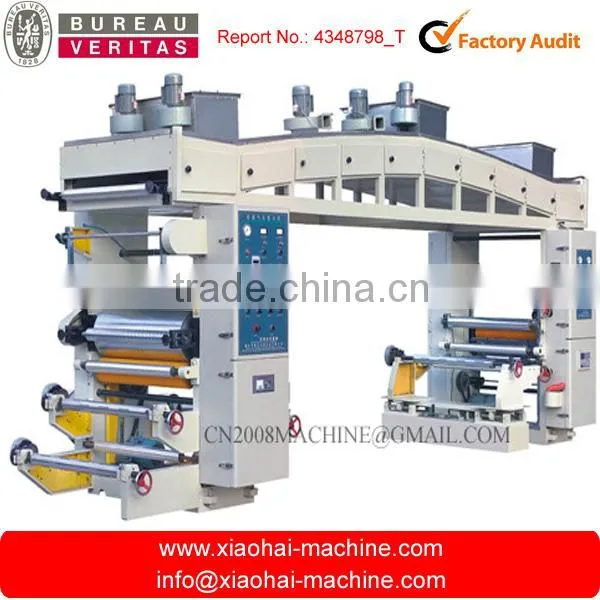

Solvent Based Lamination Machine

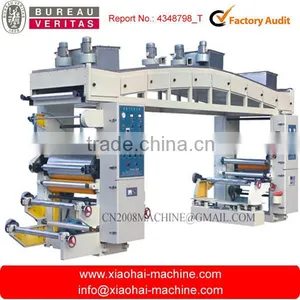

Solvent Based Lamination Machine thumbnail-1
Solvent Based Lamination Machine photo-1
US$ 1,000 - 1,111 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XH
Contact Supplier Request Quote Chat Now
Wenzhou Xiaohai I/E Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name XH
Model Number GFC
Voltage 380v
Power(W) 66kw
Dimension(L*W*H) 11000*2500*3000mm
Weight 7500kg
Certification Solvent Based Lamination Machine
Warranty one year for Solvent Based Lamination Machine
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Dry type lamination machine is suitable for laminating plastic-plastic, paper-plastic, paper-paper and aluminum foil

MACHINE NAME:GFC Series Dry Type lamination machine

 Solvent Based Lamination Machine



Usage:
This machine is suitable for laminating plastic-plastic.paper-plastic,paper-paper and aluminum foils and other laminatd materials in the packing industry.

Performance and Features:

1.Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.
2.Thickness of glue coating can be chosen by mesh of anilox roller and doctor blade
3.Imported tension controller for three section constant tension control.
4.Duplex turret type unwinder, pre-drive with manual web cutting, pre-tension for non-stop shaft exchange
5.First unwinder equipped with EPC system
6.Second unwinder equipped with EPC system
7.Duplex turret type rewinder, pre-drive with manual web cutting, pre-tension for non-stop shaft exchange
8.Movable doctor blade with pneumatic back pressure
9.Three independent constant temperature section drying system with infra heating tube and air blower, inner circulated intake and exhaust device available to ensure the full dryness of web
10.Pneumatic lifting drying channel and operating platform for web stretch, active synchronous running leading roller inside drying channel.
11.Pre-heating before laminating, water cooling roller for laminated web.
12.Air inflatable Shaft for web loading/unloading.


Specification:




Model No. GFC-800

Effective Laminating Width 800mm

Max.width of web 850mm

Max.Laminating Speed 100m/min

Max. Mechanical Speed 120m/min

Diameter of Unwind/Rewind 600mm

Diameter of Roll Core 76mm

Layer Quantity of Laminated 2 layer

Tension Control Range 4-10kg(Perset)

Total power 66kw

Heating power of oven 36Kw

Weight of machine 7500kg

Machine Dimension 11000×2500×3000mm






Remark:

We also have wider width machine,if you want to do wider material,please feel free to contact us,we will provide you details.thanks.
