P080S Stock fanless industrial embedded touch screen touch screen industrial pc
Overview
QY-P080-S is a tablet touch screen industrial pc which is designed for the the man-machine interface application,it using the latest atom N2600 dual-core 1.6 Hz low power processor,with 2 gb of DDR3 memory, and equipped a 8 " and 800 x600 resolution LCD high temperature resistive touch screen .The whole machine apply 12 v dc power supply, which can effective control internal heat of the computer ;This industrial computor can provide more diversified data storage device,at the same time, support DOM/SSD and SATA 2.5 "notebook hard disk; integrated rich I/O interface, a RS232 serial port,a RS232 / serial port 485, two 10 ~ 1000 m ethernet front-end portsand 2 usb ports.
QY-P080-S apply panel embedded installation, only need four tighten clamp to complete installation, it is very convenient;The front panel operator meet the requirement of NEMA/IP65 waterproof and dustproof,which can effective control the splash water and steam into the host sleep,which will influence equipment normal work;The equipment can adopt fanless design,which can limited dust inter equipment, and ensure the machine more stable operation through the faster cooling of external surface, make sure it can adapt to a harder environment;This P080S is very suitable for applied in factory automation, machinery manufacturing, numerical control equipment, textile equipment, intelligent power, food traceability and other PC monitoring and control.
QY-P080-S can compatible with Windows 2000, Windows XP, Windows VISTA, Windows 7, Linux and other major operating systems and embedded system.Moreover,it can run some procedures and software which is designed by customer and based on the above operiating system.It can be formed a powerful man-machine interface after install a industrial automation configuration software.
Features
- Ultra-thin design, control the overall thickness of 50 mm
- 8 "true color LCD display, 800 x600 resolution, the service life of the backlight for up to 50000 hours
- Built-in atom N2600 dual-core 1.6 Hz low power processor, Intel ® NM10 chipset, support 224 MB of Shared memory
- Equipped with rich industrial control interface, commonly used maximum six RS232 serial port, 2 to 10 ~ 1000 m ethernet front-end ports and 4 USB ports.
- Touch screen with five line high temperature resistance type . Click number up to 35 million times
- 12/24 v dc power input, meet the industrial field power supply
- Support with built-in wireless network card and bluetooth device
- Large area of aluminum fin active cooling design, ensure that the tablet can under work in bad industrial enviroment
Specification
P080S Stock fanless industrial embedded touch screen industrial pc
| System parameters | CPU | Atom N2600 dual-core 1.6Hz low-power processor (3W), 533MHz front side bus touch screen industrial pc |
| Chipset | Intel® NM10 | |
| RAM | 2GB DDR3 1066MHz SDRAM | |
| Disk | SATA 2.5"SSD,HDD and DOM | |
| Display | Intel GMA950 224MB ( Shared memory, dual display support ) | |
| I / O Interface | Network Port | 2*RJ-45 |
| Audio | RTL ALC883 , | |
| USB | 2*USB2.0 | |
| Com Port | 2* DB-9 , 1 * RS-232 , 1 * RS232/485 | |
|
LED Screen |
Display | 8”VGA TFT LED |
| Resolution | 800x600 | |
| Brightness | 350cd/m2 | |
| Contract Ratio | 600:1 | |
| Max Colors | 16M | |
| Display Area | 164.5X124.5mm | |
|
Response Time |
8ms | |
| Pixel Distance | 0.297x0.297 | |
| View Angle | (H)160/(V)160 | |
| Touch Screen | Type | 5 line resistant |
| Resolution | 4096X4096 | |
| Life time | 250g ,35 million times | |
|
Response Time |
<5ms | |
| Surface Hardness | 3H | |
| Light Transmittance | >81% | |
| Stroke Life | 250g, 5 million times | |
| High Temperature Test | 85℃/1000hrs | |
| Constant Temperature And Humidity test | 85℃/90%RH/1000hrs | |
| Agencies Parameters | Panel Box | Panel molding process using aluminum-magnesium alloy, magnesium alloy shell with overall heat the entire surface machining. Panel molding process using aluminum-magnesium alloy, magnesium alloy shell with overall heat the entire surface machining. |
| Installation | Panel embedded, with bracket VESA mounting | |
| Power | 12/24V | |
| Color | Black | |
| Weight | 3KG | |
| Panel Dimension | 230X180X51mm | |
| Carton Dimension | 213X167X46mm | |
| Hole Size | 215X169mm | |
|
Environment Parameters |
Working Temperature | 0~60℃ |
| Storage Temperature | -20~70℃ | |
| Humidity | 0~95%@40℃ | |
| Vibration | 50 ~ 500Hz , 1.5G.0.15mm | |
| Impact | 10G(11ms) |
Detail parts

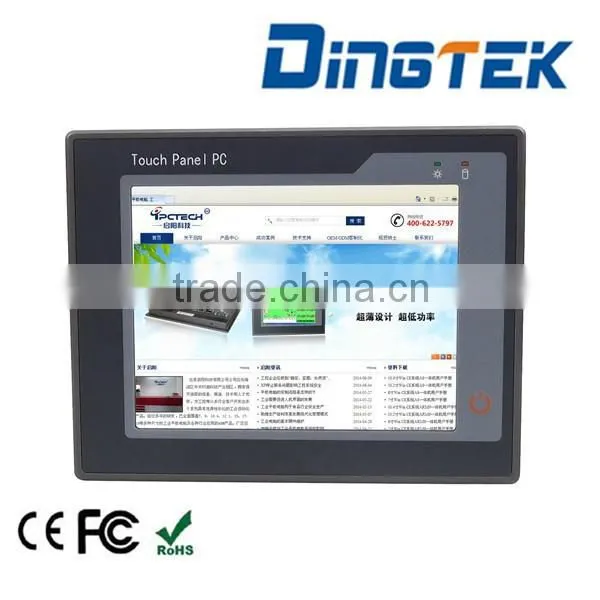

Outlook

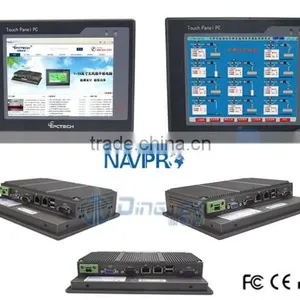

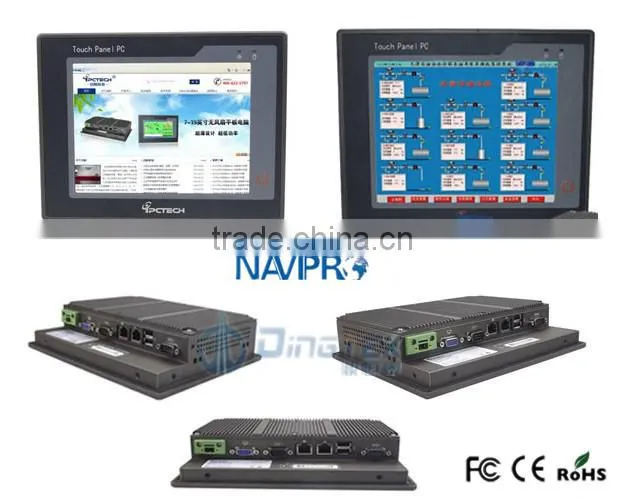

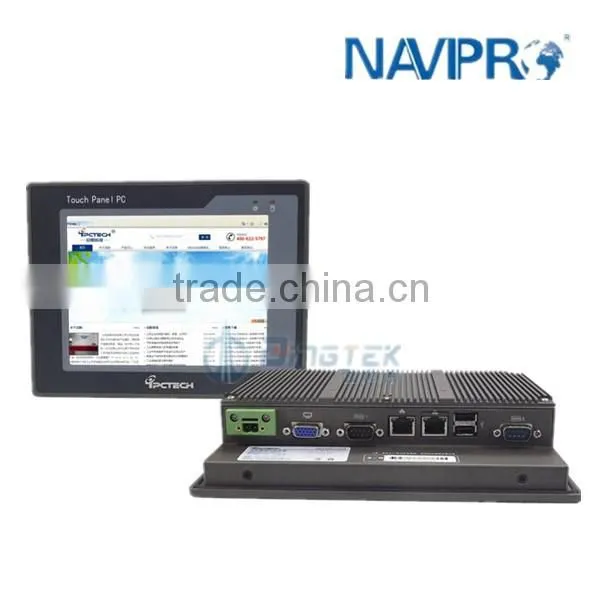

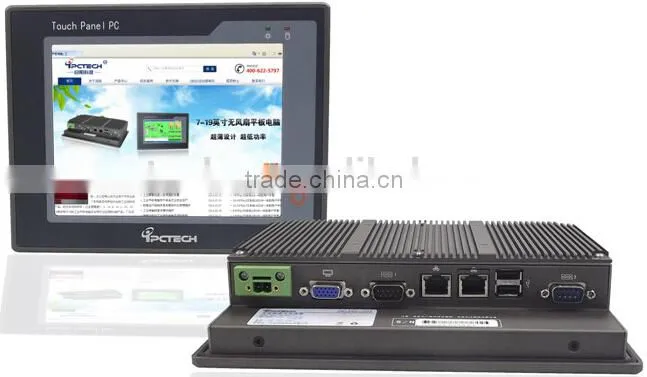

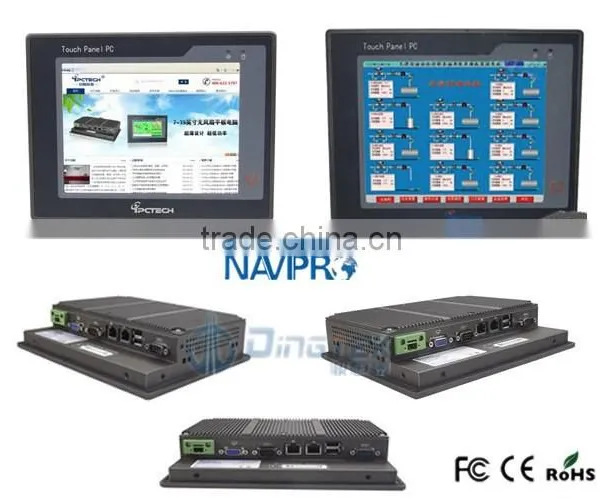

Ports of the touch screen industrial pc showed from different angle

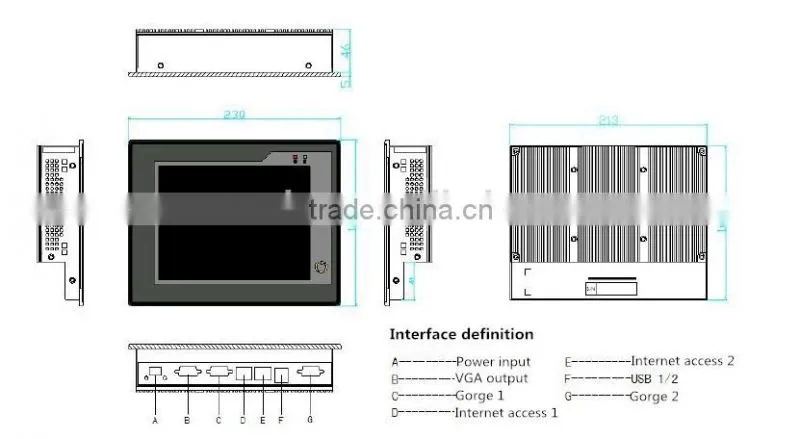

Interface definition of the touch screen industrial pc

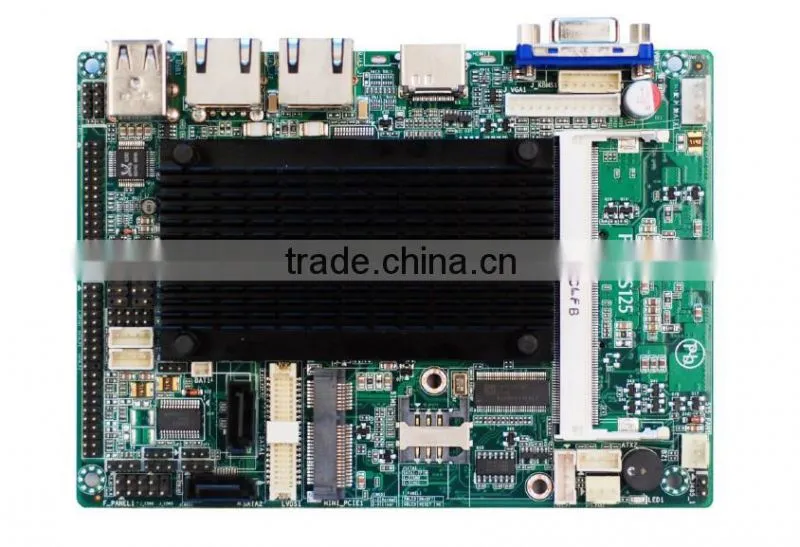

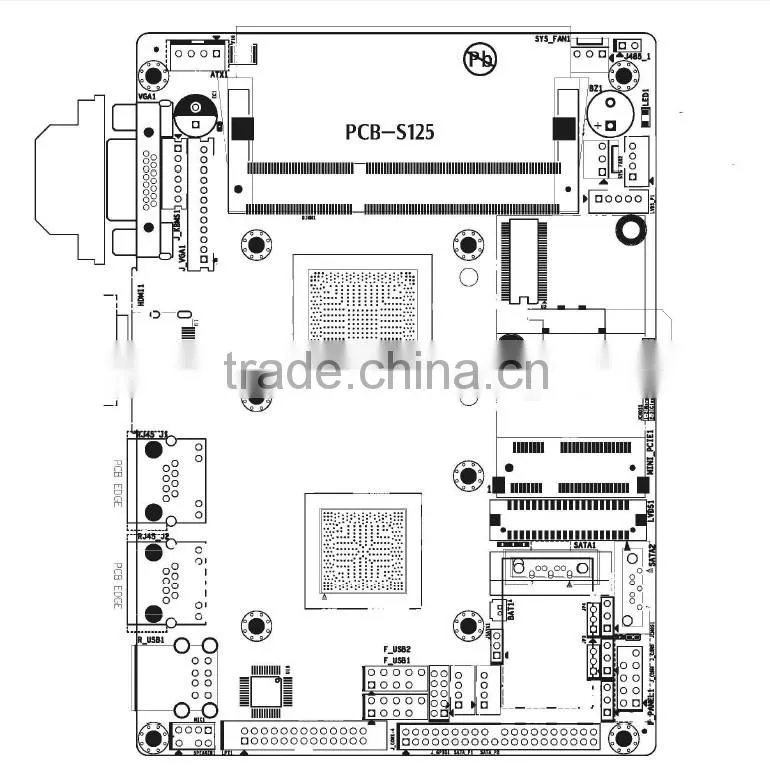

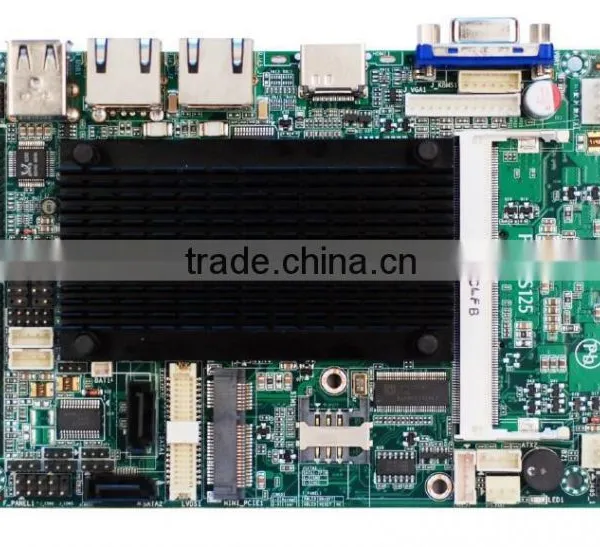

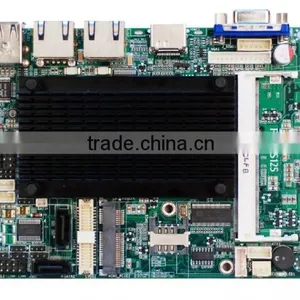

Motherboard and design drawing about touch screen industrial pc
mini touch screen industrial pc
Package of this touch screen industrial pc
Delivery
Delivery :DHL / UPS / FedEx / EMS
Certification
Our service
If you have any confuse or needs about our touch screen industrial pc ,please contact me :
Our company objective
Company division
Our team and factory
