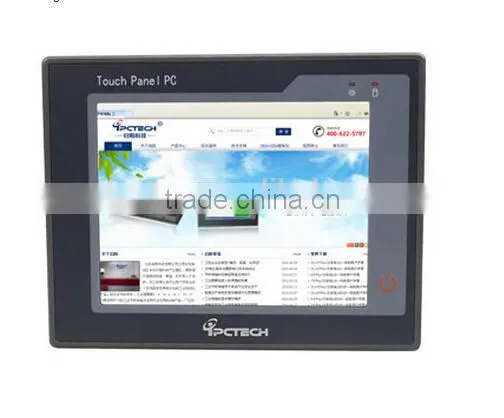

P080S Size customizable China all in one pc industrial embedded fanless window linux system 32g high resolution pc
Overview
P080-S is a touch-screen tablet computer solution which is designed for the the man-machine interface application,it using the latest atom N2600 dual-core 1.6 Hz low power processor,with 2 gb of DDR3 memory, and equipped a 8 " and 800 x600 resolution LCD high temperature resistive touch screen .The whole machine apply 12 v dc power supply, which can effectively control internal heat of the computer ;This industrial computor can provide more diversified data storage device,at the same time, support DOM/SSD and SATA 2.5 "notebook hard disk; integrated rich I/O interface, a RS232 serial port,a RS232 / serial port 485, two 10~1000m ethernet front-end ports and 2 usb ports.
P080-S apply panel embedded installation, only need four tighten clamp to complete installation, it is very convenient;The front panel operator meet the requirement of NEMA/IP65 waterproof and dustproof,which can effective control the splash water and steam into the host sleep,which will influence equipment normal work;The equipment can adopt fanless design,which can limited dust inter equipment, and ensure the machine more stable operation through the faster cooling of external surface, make sure it can adapt to a harder environment;This P080S is very suitable for applied in factory automation, machinery manufacturing, numerical control equipment, textile equipment, intelligent power, food traceability and other PC monitoring and control.
P080-S can compatible with Windows 2000, Windows XP, Windows VISTA, Windows 7, Linux and other major operating systems and embedded system.Moreover,it can run some procedures and software which is designed by customer and based on the above operiating system.It can be formed a powerful man-machine interface after install a industrial automation configuration software.
Specificatiion:
| System parameters | CPU | Atom N2600 dual-core 1.6Hz low-power processor (3W), 533MHz front side bus |
| Chipset | Intel® NM10 | |
| RAM | 2GB DDR3 1066MHz SDRAM | |
| Disk | SATA 2.5"SSD,HDD and DOM | |
| Display | Intel GMA950 224MB ( Shared memory, dual display support ) | |
| I / O Interface | Network Port | 2*RJ-45 |
| Audio | RTL ALC883 , | |
| USB | 2*USB2.0 | |
| Com Port | 2* DB-9 , 1 * RS-232 , 1 * RS232/485 | |
| LED Screen |
Display | 8”VGA TFT LED |
| Resolution | 800x600 | |
| Brightness | 350cd/m2 | |
| Contract Ratio | 600:1 | |
| Max Colors | 16M | |
| Display Area | 164.5X124.5mm | |
|
Response Time |
8ms | |
| Pixel Distance | 0.297x0.297 | |
| View Angle | (H)160/(V)160 | |
| Touch Screen | Type | 5 line resistant |
| Resolution | 4096X4096 | |
| Life time | 250g ,35 million times | |
| Response Time |
<5ms | |
| Surface Hardness | 3H | |
| Light Transmittance | >81% | |
| Stroke Life | 250g, 5 million times | |
| High Temperature Test | 85℃/1000hrs | |
| Constant Temperature And Humidity test | 85℃/90%RH/1000hrs | |
| Agencies Parameters | Panel Box | Panel molding process using aluminum-magnesium alloy, magnesium alloy shell with overall heat the entire surface machining. Panel molding process using aluminum-magnesium alloy, magnesium alloy shell with overall heat the entire surface machining. |
| Installation | Panel embedded, with bracket VESA mounting | |
| Power | 12/24V | |
| Color | Black | |
| Weight | 3KG | |

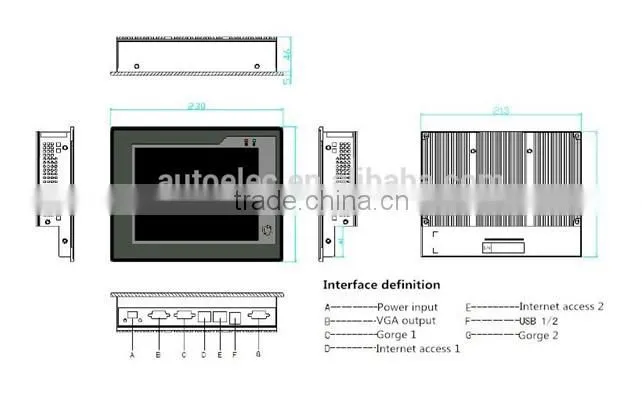

| Panel Dimension | 230X180X51mm | |
| Carton Dimension | 213X167X46mm | |
| Hole Size | 215X169mm | |
|
Environment Parameters |
Working Temperature | 0~60℃ |
| Storage Temperature | -20~70℃ | |
| Humidity | 0~95%@40℃ | |
| Vibration | 50 ~ 500Hz , 1.5G.0.15mm | |
| Impact | 10G(11ms) |
Features and advantages:
- Ultra-thin design, control the overall thickness of 50 mm
- 8 "true color LCD display, 800 x600 resolution, the service life of the backlight for up to 50000 hours
- Built-in atom N2600 dual-core 1.6 Hz low power processor, Intel ® NM10 chipset, support 224 MB of Shared memory
- Equipped with rich industrial control interface, commonly used maximum six RS232 serial port, 2 to 10 ~ 1000 m ethernet front-end ports and 4 USB ports.
- Touch screen with five line high temperature resistance type . Click number up to 35 million times
- 12/24 v dc power input, meet the industrial field power supply
- Support with built-in wireless network card and bluetooth device
- Large area of aluminum fin active cooling design, ensure that the tablet can under work in bad industrial enviroment.

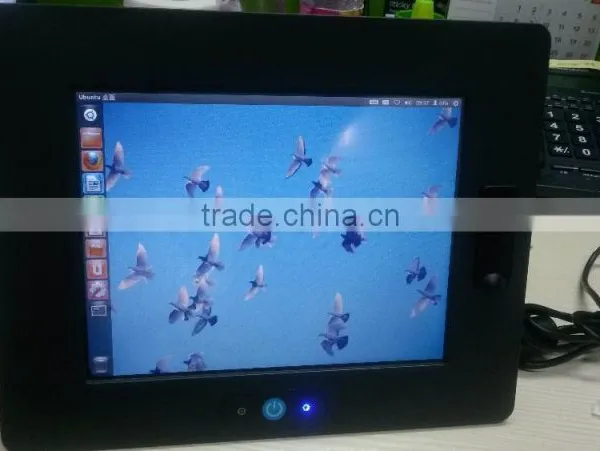

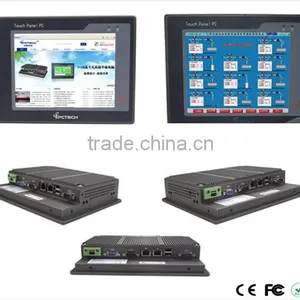

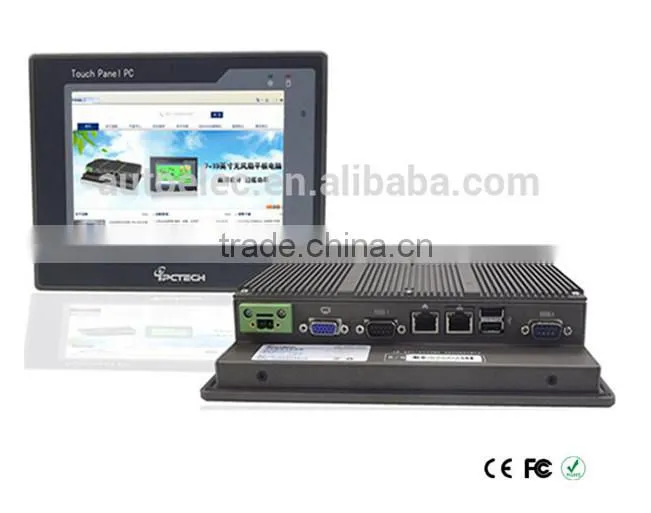

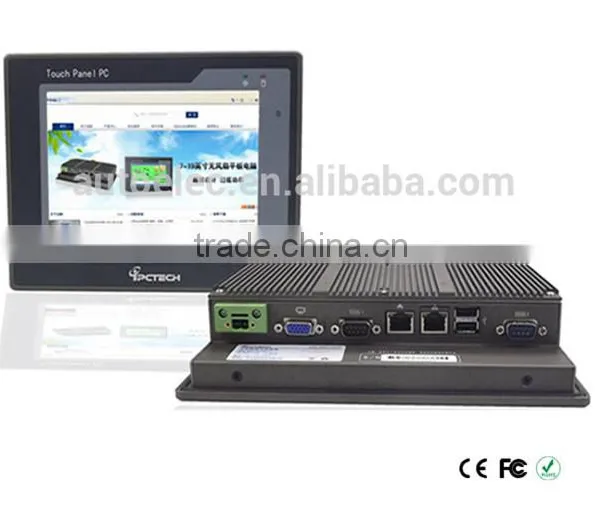

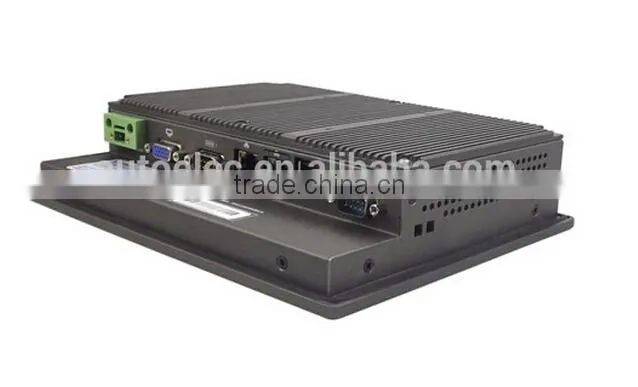

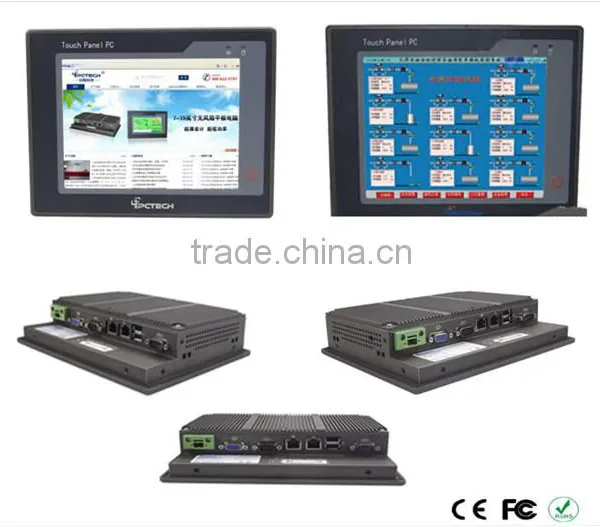

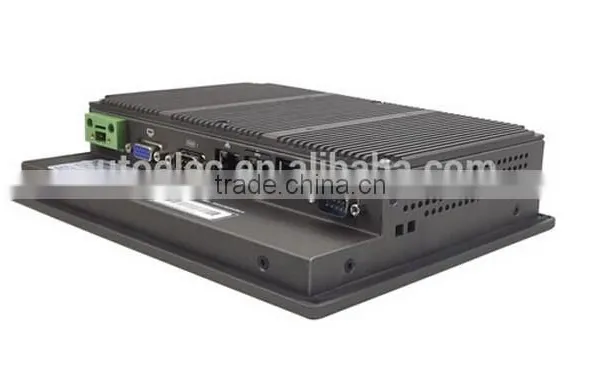

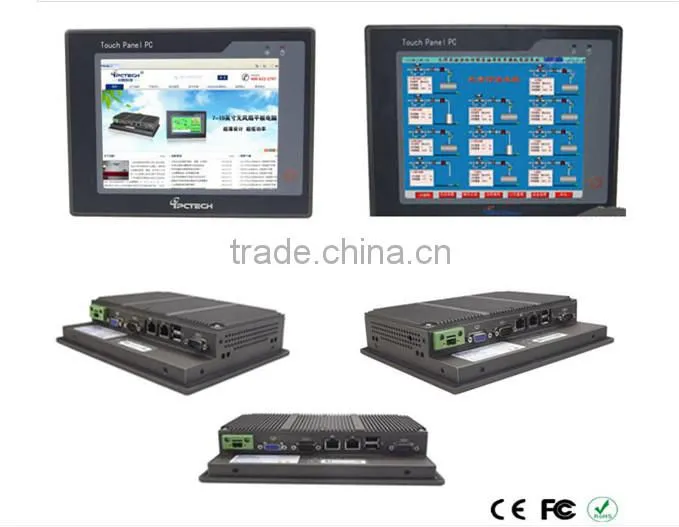

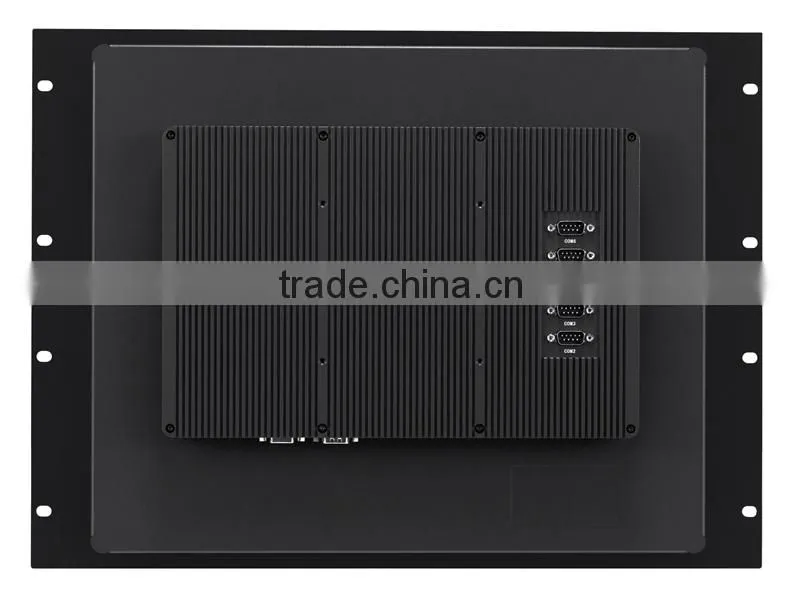

We have pictures from different angles of the product
china all in one pc
| Items per Carton: | 6 Pieces / Carton |
|---|---|
| Package Measurements: | 120X30X30 CM |
| Gross Weight: | 25.00 KG |
| Package Type: | Industrial computer package is standard carton . |
We provide many kinds of economic and express shipping method for your selection.
We are Beijing Dingtek Technical Co.,Ltd.We especially engaged in personal gps tracker,vehicle/automotive gps tracker,liquid level sensors,industrial all in one pc.We have been in this line for many years.We provide competitive quality products and powerful customer service,and has receive high reputation from customers all over the world.
Welcome to contact us for cooperation.
our service:
- we are committed to providing a high quality,and responsive services to all clients
- The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
- Excellent package: each unit has individual box and all boxes are packed in standard packages.
- OEM available
china all in one pc
We warrants this quality product to be free of defects in material and workmanship for a period of one year from the date of purchase. During the period, we will repair or replace the product at no charge for parts or labor. But the shipment fee will be shared by the buyer (one party 50%).
The time period of this warranty starts from the date of the original purchase and expires on the first anniversary date of purchase.
No express or implied warranty is made for any defects in this product which result from accident, abuse, misuse, failure to operate the product in accordance with relevant instructions, neglect, immersion in or exposure to chemicals or liquids, extremes of climate, fungus, excessive wear and tear/cosmetic damage and defects resulting from other extraneous causes such as unauthorised disassembly, repair or notification.
This warranty shall not extend to any incidental or consequential damages arising from the purchase, use or inability to use this product.
The laws of some countries and some States thereof do not allow the limitation of incidental or consequential damages, so the above limitation or exclusion may apply to you.
If you have any questions about our products,welcome to contact me,I will do my best to help you :)
