S1000 Vehicle gps tracking system software for oil level monitoring with alarm
Background (GPS tracking system)
This is specifications of GPS tracker software , includes configuration of server, configuration of client
PC, and tracking software functions.
Please kindly notified that the server is C/S and B/S server at the same time as we storage the database
at the same hardware.
Specification (GPS tracking system)
This GPS tracker software ,support IE, Opera, firefoxe, chrome and etc.
Design for industrial complicated applicaiton, fuel level sensor, temperature sensor, ic card, electronic lock and other accessories.
Multilingual support;
| Feature | Status | |
| Basic | Real time Monitoring | Yes |
| Historic Tracking | Yes | |
| SOS | Yes | |
| Overspeed Alarm | Yes | |
| Power Alarm | Yes | |
| Region In/Out Alarm | Yes | |
| Long Parking Alarm | Yes | |
| Off-route Alarm | Yes | |
| Remote Control | Oil Pump/Startor Cut | |
| Yes | ||
| Statistics&Reports | Mileage Statistics | Yes |
| ACC Status Statistics | Yes | |

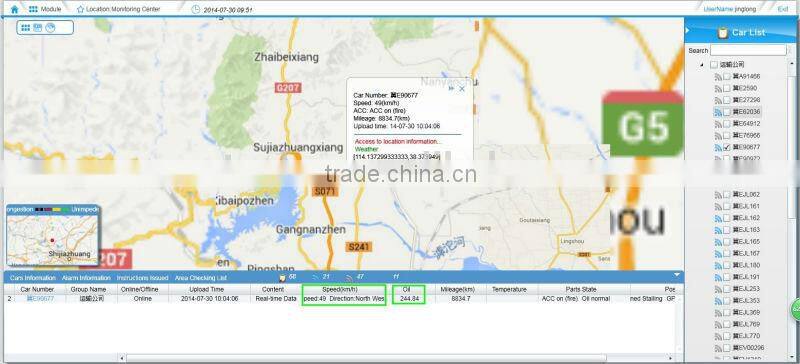

| Oil Level Statistics | Yes | |
| Alarm Report | Yes | |
| Parking Reort | Yes | |
| Sensor&Extended Device | Photo | Yes, device dependent |
| Temperature | Yes, device dependent | |
| Door Status | Yes, device dependent | |
| Cement Drum Status | Yes, device dependent | |
| Map | Normal Map | yes |
| Satellite Map | yes | |
| Region Operation | yes | |
Google maps platform (GPS tracking system)
Configuration of Server (C/S & B/S) (GPS tracking system)
The Minimum Configuration of Server is Dell PowerEdge M610x Blade Server
(/us/business/p/poweredge-m610x/pd ) as below.
Quad-core Intel® Xeon® 5520 2.4G;
8GB DDR3 RAM
2.5" SATA 1TGB
Two embedded Broadcom® NetXtreme II™ 5709 Gigabit Ethernet NICs with failover and load balancing.
Dell™ PowerEdge™ M1000e Blade Chassis
Microsoft® Windows Server® 2003 Enterprise Edition
Microsoft® SQL Server 2005
20Mb Network Bandwidth
Configuration of Client PC (GPS tracking system)
The Minimum Configuration of Server is as below.
Intel Celeron 1.8G
1GB DDR2 RAM
80G Hard Disk
Microsoft® Windows XP
Application (GPS tracking system)
Fleet or logistics company vehicle management; ERP, OA, express delivery system integration.
Demo Platform (GPS tracking system)

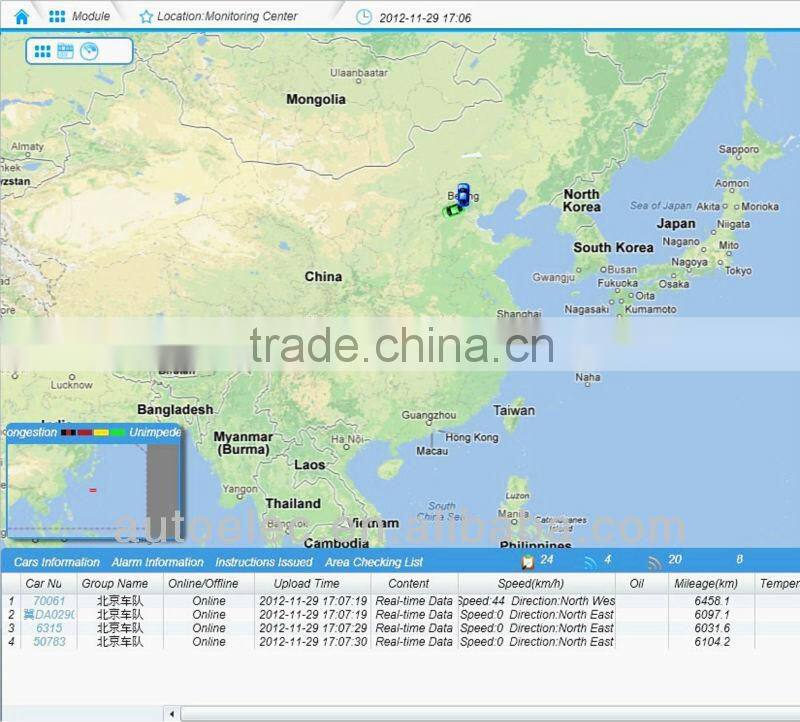

1.Our web monitoring platform: demo address is http://122.115.60.186:8086
Please be kindly notified that, the system is developed by Microsoft Silverlight. So you need to install silverlight for the first time login. The version 4.0 is fit for this system.
The download address is /download/6/A/1/6A13C54D-3F35-4082-977A-27F30ECE 0F34/10329.00/runtime/Silverlight.exe.
Other version may cause some bugs.
Notes
This is server edition for user build server for themselves. It is not client monitoring software.

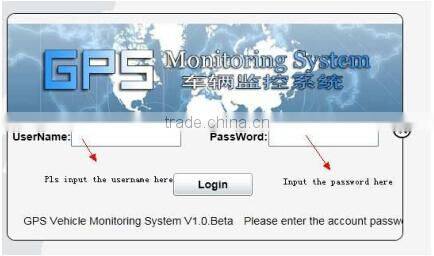

2. Input username and password. Please click user name and input demo account and password.Demo account is test, password is 123456. If failed, please contact us for updated account.

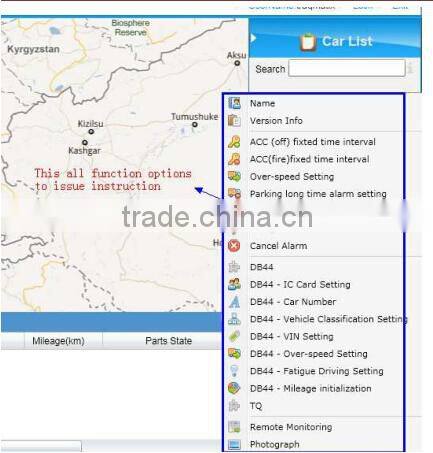

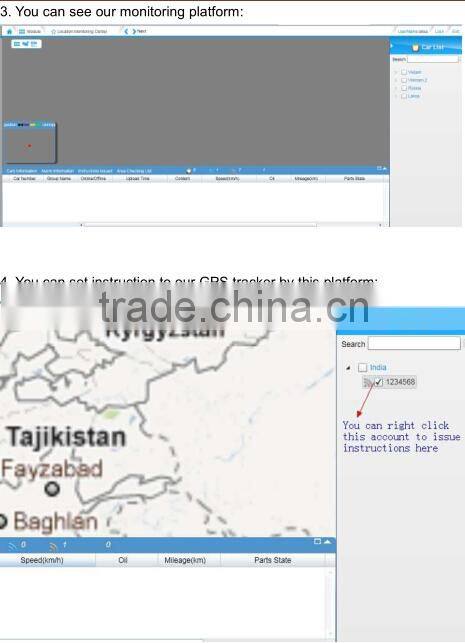

5. You can send instruction to control the GPS tracker remotely by these functional instructions

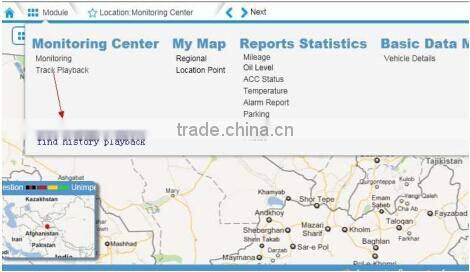

6. You can check history playback by this menu.

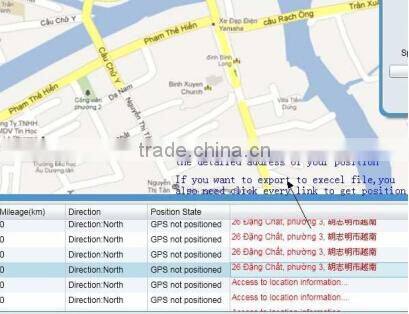

7. You must choose a car to see track playback, you must click every location one by one, it show the detailed address of every position.

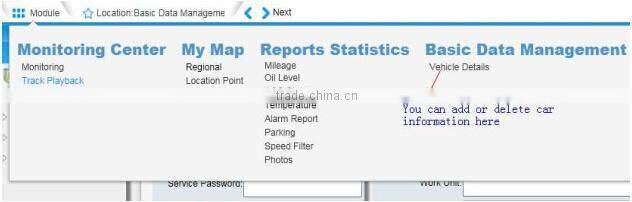

8. You can check vehicle details to add or delete the car information

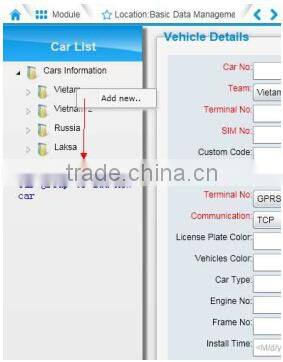

9. You can add new car here, you should right click car group to add new car.

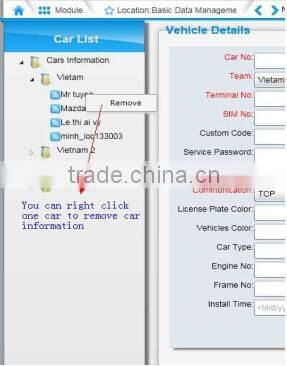

10. You can click here to delete old car information, you should right click one car to delete it.
This is a short descprition and some specifications about our online-tracking software,if you have any other questions,you can contact me,I can explain more about our software,and I can send you detailed user manuals for your reference.
Vehicle gps tracking software
For this software,we usually send it to our customers after the payment is cleared.We also provide powerful technical support to our customers if you have any problems during any time cause we have a powerful technical service team:)
1. Q: Is it possible to use this software to monitor people and car?
A: Yes, this GPS tracker software can monitor people and car with GPS tracker or mobile phone software.
2. Q: Can the program work on a PDA?
A: Yes, it can be managed on pc, also there is an Android software to install on your PDA to minitor car and people.
3. Q: How many signals at the same time can be of the software?
A: This GPS tracker software has a record of maximum 7000 terminals online at the same time.
4. Q: How many trackers can connect to the program?
A: Normally, one account observe 1-several handred vehicles.
5. Q: Does this software works in English Language?
A: Yes, the demo software is http://122.115.60.186 :8086 name: jinglong password: 123456 ( if mistake, please contact this skype:angel.cai609 )
We are Beijing Dingtek Technical Co.,Ltd.We especially engaged in personal gps tracker,vehicle/automotive gps tracker,liquid level sensors,industrial all in one pc.We have been in this line for many years.We provide competitive quality products and powerful customer service,and has receive high reputation from customers all over the world.
Welcome to contact us for cooperation!
