Remotely Fuel Management Solution for Fixed Tank, Underground Tank
US$ 120 - 300
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
navipro
Model Number:
F300+D100
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
S1000 Vehicle Gps Tracking System Software for Oil Level Monitoring With Alarm and Real Time Monitor Fuel Level Vehicle PositionUS$ 1,999 - 2,000MOQ: 1 Piece -
S1000 Car Gps Tracking Software for Car Position Monitoring and ManagementUS$ 1,999 - 2,000MOQ: 1 Piece
-
S1000 Automotive Gps Tracking System for Car Position Real Time Monitoring and Controlling With High AccuracyUS$ 1,999 - 2,000MOQ: 1 Piece
-
S1000 Vehicle Gps Tracking System Software for Oil Level Monitoring With Alarm and Many FunctionsUS$ 1,999 - 2,000MOQ: 1 Piece
-
S1000 Google Map Positioning System for Vehicle Position Monitoring With High AccuracyUS$ 1,999 - 2,000MOQ: 1 Piece
Place of Origin
Beijing, China
Brand Name
navipro
Model Number
F300+D100
Specifications
high resolution fuel level sensor to measure fuel level of tank.GPRS modem DTU to send data remotely

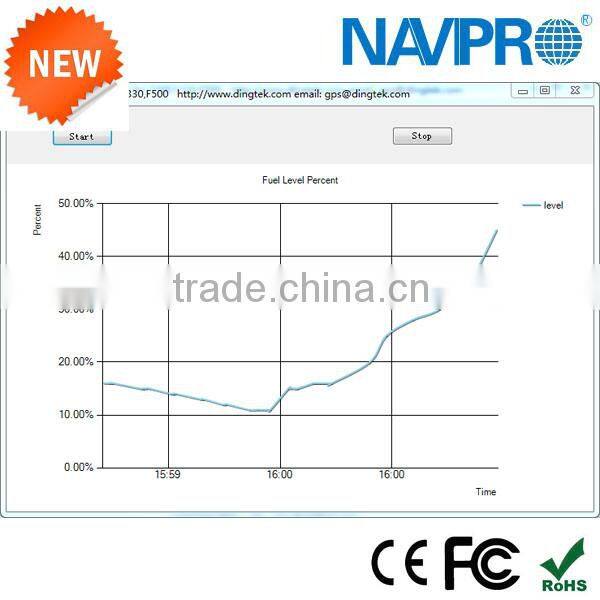

fuel management software
Solution for underground tank, fixed tank fuel management.
Product Description

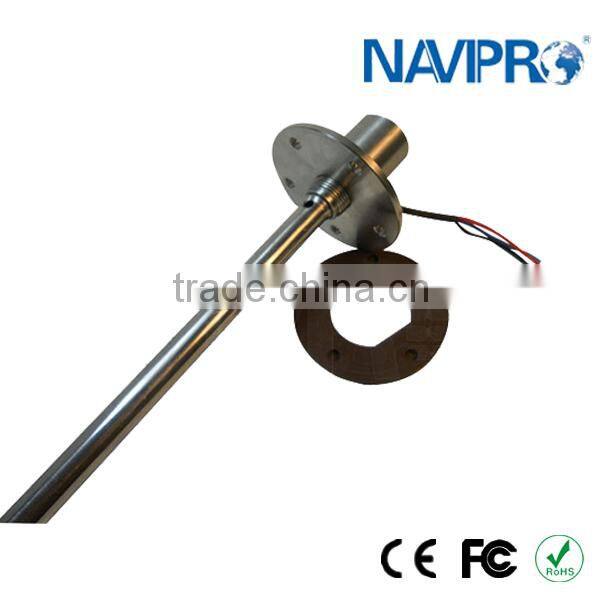

The package includes high resolution level sensor F300 and GPRS DTU.

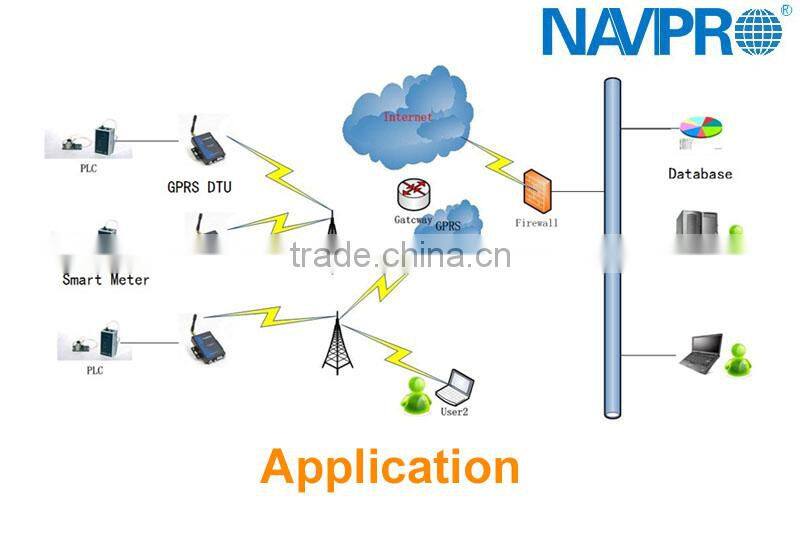

The Diagram is as below.

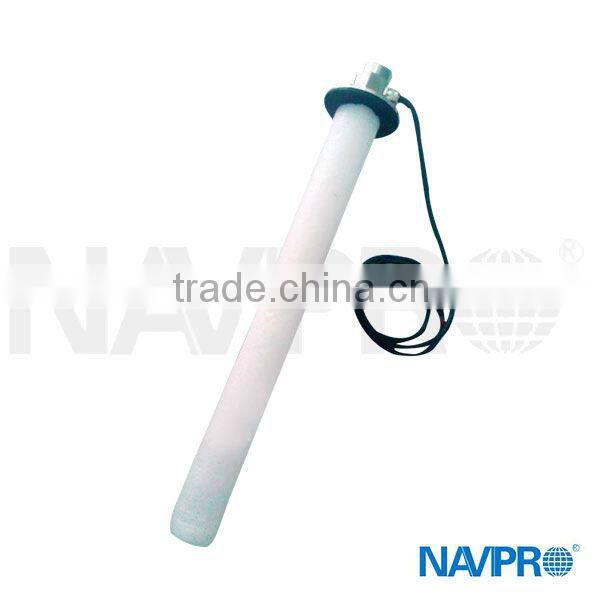

Sepcification of Sensor
| Item | Water Level Sensor |
| Sensor length | 100~ 3000mm |
| Resolution | 1mm |
| Power Supply | 10-32V DC |
| Output Signal | Digital output RS232 or RS485 (or 0-5V analog output) |
| Sample Time | 5s or customerized value |
| Working Temperature | -40 ~ 85°C |
| Material | Stainless Steel |
| Media | any liquid |
| Protection Rank | IP65 |
| Mounting | SAE 5 blot flange |
| User Cut Short | No, customize |

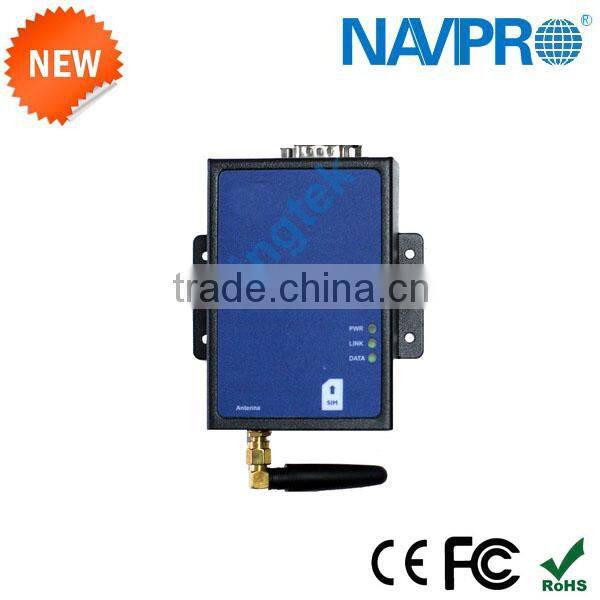

Sepcification of DTU
| Spec | Description |
| GSM/GPRS | GSM/GPRS |
| Quad Band 850/900MHz/1800/1900MHz | |
| GPRS Multi-slot Class: Class 10 | |
| GPRS Terminal Device Class: Class B | |
| GPRS Coding Schemes: CS1 to CS4 | |
| Com Port Type | RS-232 |
| Com Port | BaudRate:1200-115200 |
| Databit:8, 9 | |
| Stopbit:1,2 | |
| Checksum bit:NONE, EVEN, ODD | |
| Com Port Pin | RS-232: TxD, RxD, GND |
| MCU | 16bit MCU |
| Protocol | TCP/IP, UDP |
| Material & Dimension | Alumunium alloy, 80x51x16mm (not including antenna or fixing hole) |
| Weight | 120g |
| Environment | Working temperature:-25~75°C |
| working moisture:5 ~95%RH | |
| Power | 8 - 30 VDC |
| Mean working current: 35mA@ 12VDC | |
| Max working current 100mA@ +12VDC | |
| standby current 20mA @+12VDC |
Packaging & Shipping
Our Services

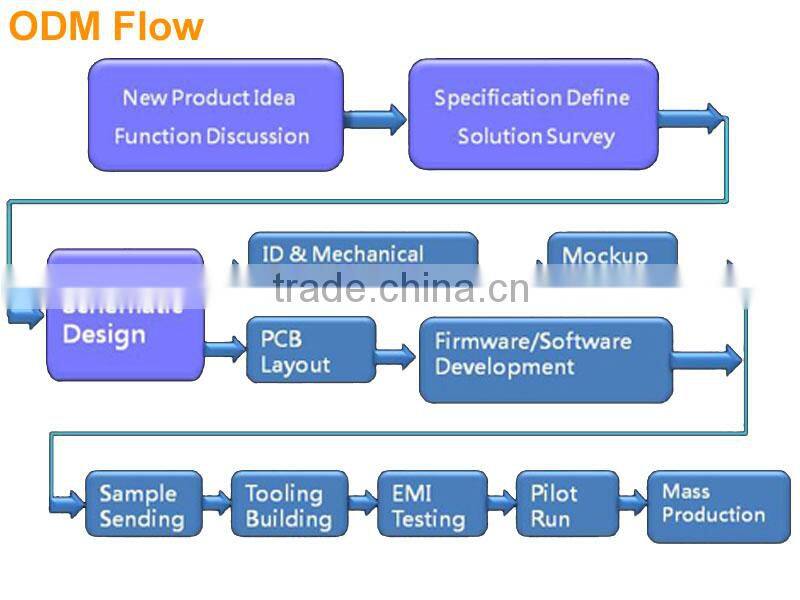

Customer Design
Service
Company Information
Feedback
FAQ
1. How do we use the system?
Install sensor into tank, connect sensor with DTU, install software on pc. Then you can monitor it.
2. Do we need to insert sim card into the DTU?
Yes, it need one gprs sim card with datagram business.
3. Do you offer software to monitor the fuel?
Yes, we offer the software freely. And if you need customerzied requirment, we can specially design for you.
