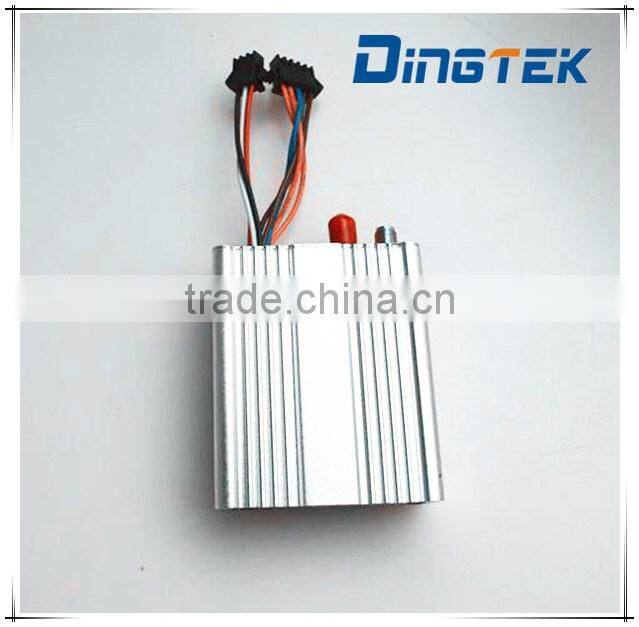

The GPS Tracker A200 can realize realtime monitoring of vehicle as well as fuel pump or starter stop. It is equipped with ublox GPS module and huawei quad band GSM/GPRS module. It is worldwide applicable for fleet management.
Dimension | 65*45*25mm |
GPS | UBlox |
GSM/GPRS | EM310 |
Current | 50MA |
Voltage | 9-36V |
Backup Battery | Yes |
ACC Detection | Yes |
SOS | Yes |
Fuel pump stop/starter stop | Yes |

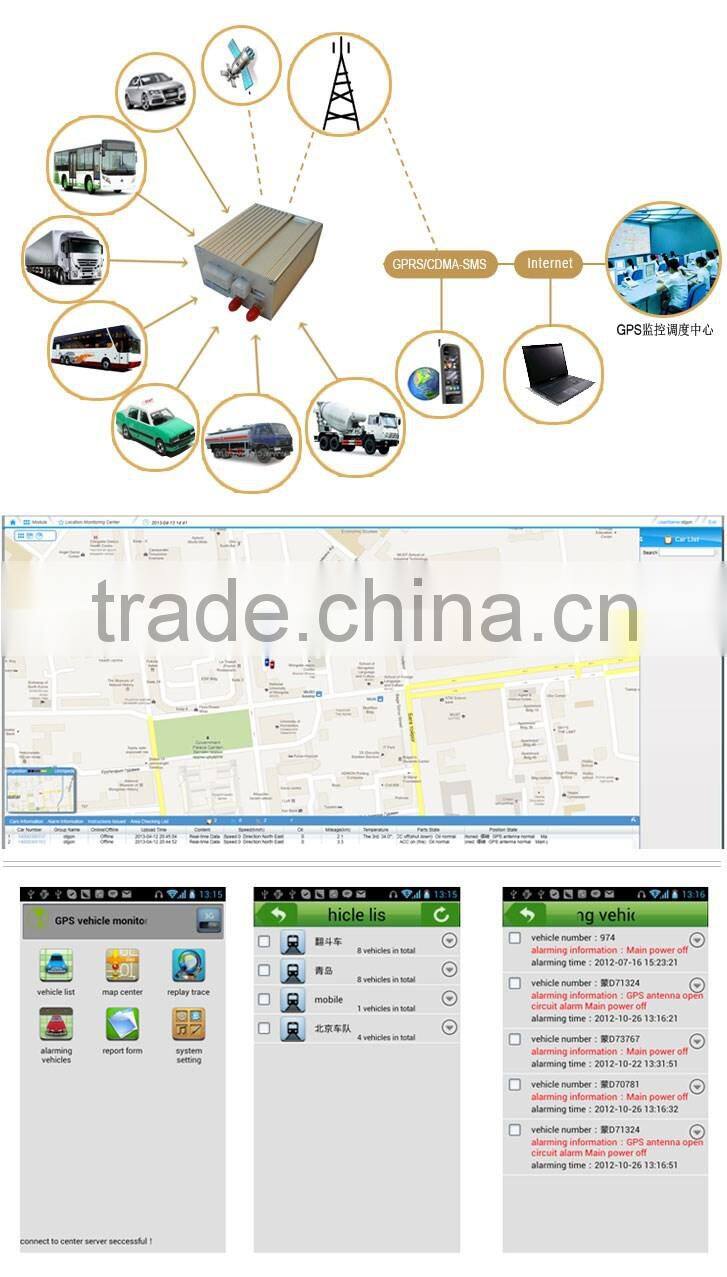

System Diagram
Interface Definition
Pin Definition
3 Pins Connector:
Red: +12V/24V
Black:GND
White:ACC
5Pins Connector:
Purple: Oil cut
Brown: Self-defined high input
Green: Self-defined low input
Orange (2 lines): SOS

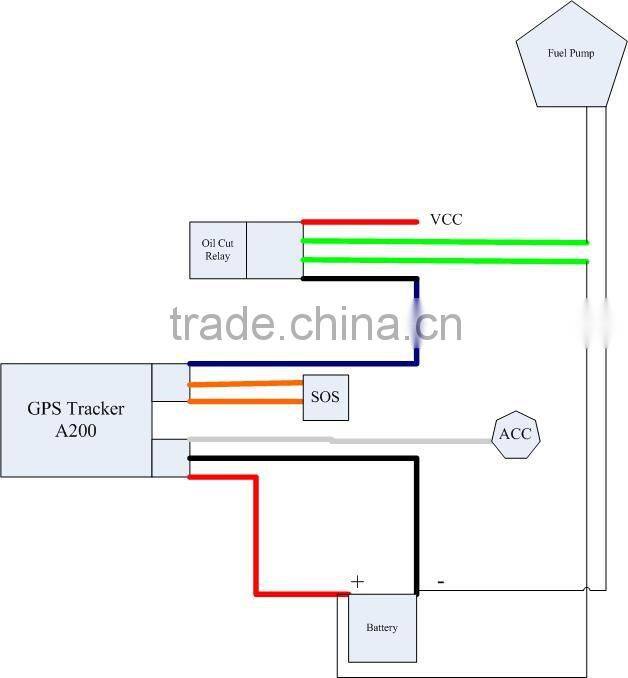

Connection with Fuel Pump/Starter
Relay wire:
Red wire--------VCC
Black wire------GND---------------A200E purple wire in the extened wires.
Green wire insert into the fuel pump line, one end to power, one end to fuel pump.
Part List
Part List | |||
NO. | Item | Quantity | Remark |
1 | GPS Tracker Body | 1 | Silver or Blue |
2 | GPS Tracker SIM Card Cover | 1 | Usually already screwed with the body |
3 | Screw | 4 | Usually already screwed with the body |
4 | Power Cable | 1 | 3 pin |
5 | Fuel Cut Cable | 1 | 5 pin |

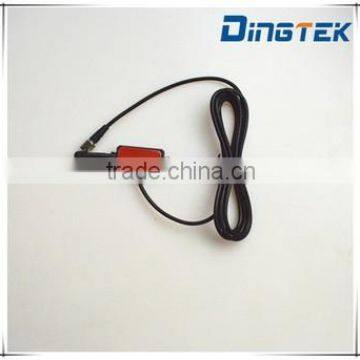

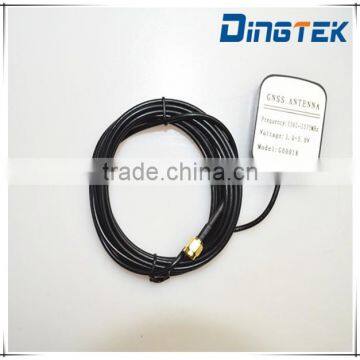

6 | GPS Antenna | 1 |
|

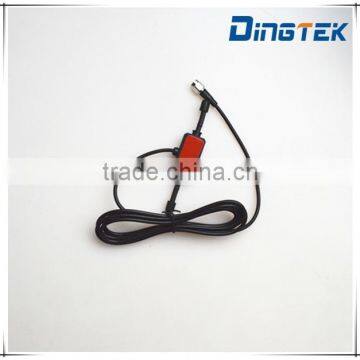

7 | GSM/GPRS Antenna | 1 |
|
8 | Double side stick | 1 |
|
9 * | Relay | 1 | Optional |
Installation
Before installation, please check the part list. Make sure that you already have the total package of our tracker and one sim card which is enabled with GPRS data and sms.
Notes:The sms function is used to debug while tracker failed to be online, such as set the apn/user name/password.
Find Position to Install
Before installation, please check the vehicle to find the appropriate position to install the gps tracker body. Usually the tracker should be install under the dashboard which is hide to the driver or passenger. But make sure that the gps antenna should not be masked by metal and the side with label is facing to ground, otherwise gps will not be fixed.
The fuse box is one option for power to the gps tracker. But make sure that the inserting of gps tracker does not change the behavior of the fuse box. Please make sure the gps tracker power supply do not interfere with the security and safety system.
Insert SIM Card
Before insert or remove sim card, please make sure power off
1. Open the cover.
2. Unlock sim card slot.
3. Insert sim card. (The SIM card should be enabled with GSM/GPRS business.)
4. Lock sim card slot.
5. Restore the cover.
Wire Connection
Connect GPS antenna.
Connect GSM antenna.
Connect power line with GPS tracker.
Connect power line with battery or other power supply (12V or 24VDC).
Red wire: +VCC (12/24VDC)
Black wire: GND
White wire: vehicle ACC line.
Check LED Status
After power on, please wait for about 1 mintue later, then watch the led status.
If red led slow flash, please send sms message to set ip, port ,apn.
If yellow led slow flash, please put gps antenna to opensky.
If any led always on or off, please power off and check sim card and antenna. If still same problem, please contact us for maintainance.
SMS Configuration
Only if red led slow flash, sms configuration can be helpful.
Please make sure sim card is enabled with sms and gprs business.
Below format is the standard SMS to configure server, port, apn, tracker id and etc.
Wire Routing and Restore
After installation, please restore the vehicle cover, use stick to fix the gps tracker with vehicle. And make sure that the gps antenna side with label is facing to ground. And the gps antenna is not masked by metal. Plastic or glass does not matter.
If you can monitor it on the tracker platform, then the installation is done.
GPS Platform
Usually the user account and password is send to you while we send out the package. If not, please contact with our sales agent or engineer about this info.
Dingtek Technology Group locates in china and has three branches in Beijing,Qingdao,and Hongkong.It has independent R&D center,production center and 24 hour quick response service network.
Since 2006,Dingtek has been focused on embedded system development,automation research and application.Our main business covers sensors design and manufacturing,embedded system design and development,complicated system integration and etc.the application covers automation,automotive,locomotive,new energy.
Besides the standard products,we also offer ODM/OEM for customers’ special requirement.Not only software design,but also hardware design.we provide not only products,but also satisfactory service!
We warrants this quality product to be free of defects in material and workmanship for a period of 12 months from the date of purchase. During the period, we will repair or replace the product at no charge for parts or labor. But the shipment fee will be shared by the buyer (one party 50%).
The time period of this warranty starts from the date of the original purchase and expires on the first anniversary date of purchase.
No express or implied warranty is made for any defects in this product which result from accident, abuse, misuse, failure to operate the product in accordance with relevant instructions, neglect, immersion in or exposure to chemicals or liquids, extremes of climate, fungus, excessive wear and tear/cosmetic damage and defects resulting from other extraneous causes such as unauthorized disassembling, repair or notification.
This warranty shall not extend to any incidental or consequential damages arising from the purchase, use or inability to use this product .
The laws of some countries and some States thereof do not allow the limitation of incidental or consequential damages, so the above limitation or exclusion may apply to you.
