Specifications

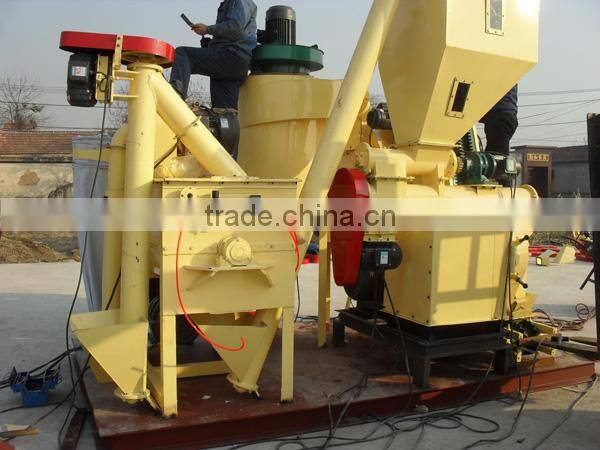

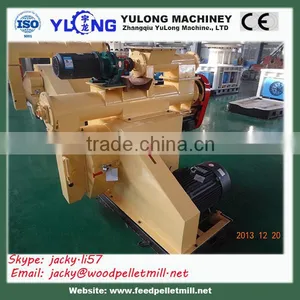

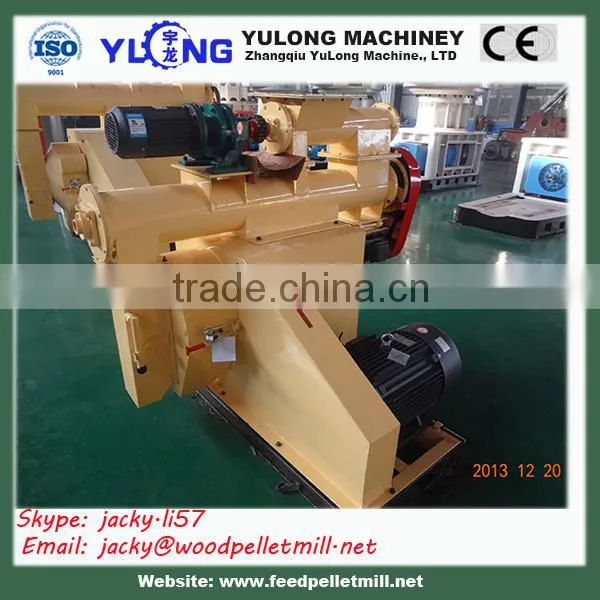

Strong spare parts feed pellet mill1. high efficiency feed pellet mill with CE certification
2. long working time
3-5T/H Capacity livestock feed pellet mill
Ring die livestock feed pellet mill is specialized in producing animal feed, long working lifetime ,high capacity ,CE certificate approved.
Ring die livestock feed pellet mill is on the basis of absorbing advanced technologies domestically and abroad, the livestock feed pellet mill group has adopted mosaic rotating roller. During working process, the press roller can be adjusted at will. And all functions have reached advanced world standard.
The ring die livestock feed pellet mill has forced material-entrance and overload protection device, which makes it work much safer.
Modulator with large diameter has been used in this machine to make materials fully cured, and make the pellet smoother. The formation rate reaches 98% and the equipment wear rate has been fallen to the bottom.
Speed-adjust feeding, adopted by this machine, can control the feeding capacity correctly to fit for different materials and meet the production requirement of pellets with different diameters.
the parameter of the livestock feed pellet mill:
Parameter |
HKJ 250 |
HKJ 300 |
HKJ 350 |
HKJ 450-A |
HKJ 450-B |
HKJ610 |
Capacity(t/h) |
0.5~1.5 |
1~3 |
3~5 |
4~6 |
5~8 |
7~12 |
Power of main motor(kw) |
22 |
37-45 |
2×30(55) |
45×2 |
110 |
150 |
Power of feeder(kw) |
0.55 |
0.75 |
0.75 |
1.5 |
|
|
Power of conditioner(kw) |
2.2 |
2.2 |
3 |
5.5 |
|
|
Inner dia of die(mm) |
Φ250 |
Φ300 |
Φ350 |
Φ450 |
|
|
Rotate speed of die(mm) |
348 |
348 |
348 |
348 |
|
|
Quantity of rollers |
2 |
2 |
2 |
2 |
|
|
Out dia of die(mm) |
Φ103 |
Φ132 |
Φ160 |
Φ204 |
|
|
Rotate speed of feeder(r/min) |
12~120 |
|
|
|||
Rotate speed of feeder(r/min) |
350 |
|
|
|||
Pellet spec(mm) |
Φ1.5 ,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ4.5, Φ5,Φ6,Φ8,Φ10,Φ12 |
|||||
Pressure of steam(mpa) |
0.1~0.4 |
|||||
Steam using(t/h) |
≥0.3 |
|||||
Temperature of steam(°C) |
130~150 |
|||||
