HAS VIDEO Automatic Candy Lollipop Stick Making Machine With Notch And Gathering Device
- ningbo
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Granules | |
| Plastic Processed | PP | Screw Design | Single-screw | |
| Automatic Grade | Full Automatic | Place of Origin | Zhejiang, China | |
| Brand Name | XIAOHAI | Model Number | XG-1 | |
| Voltage | 380v | Power(W) | 7.5kw | |
| Dimension(L*W*H) | 15*2*2m | Weight | 800KG | |
| Certification | CE ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

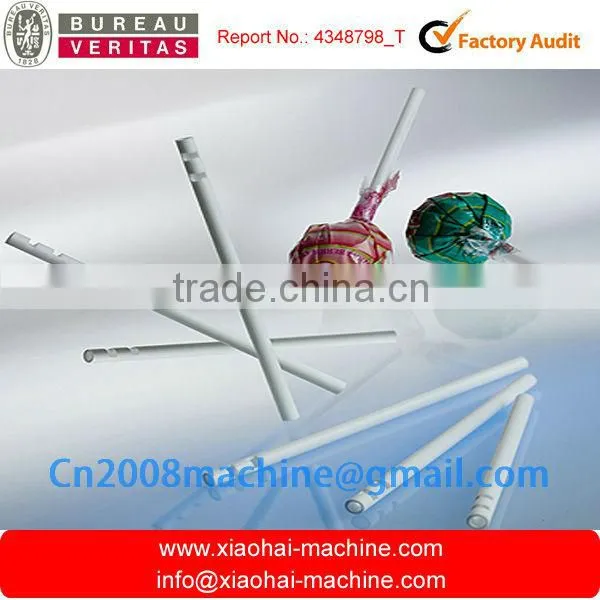

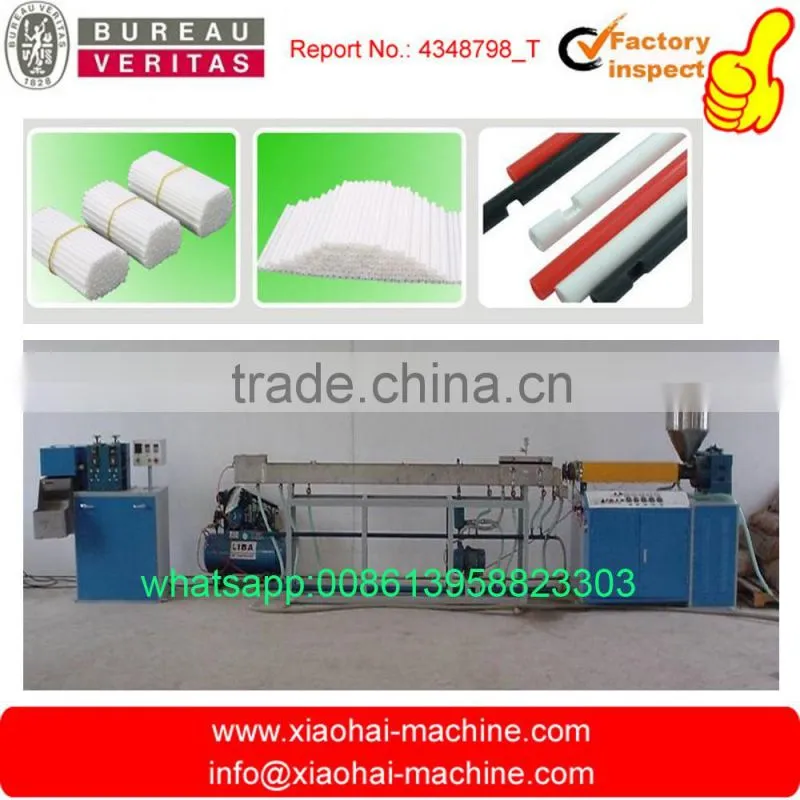

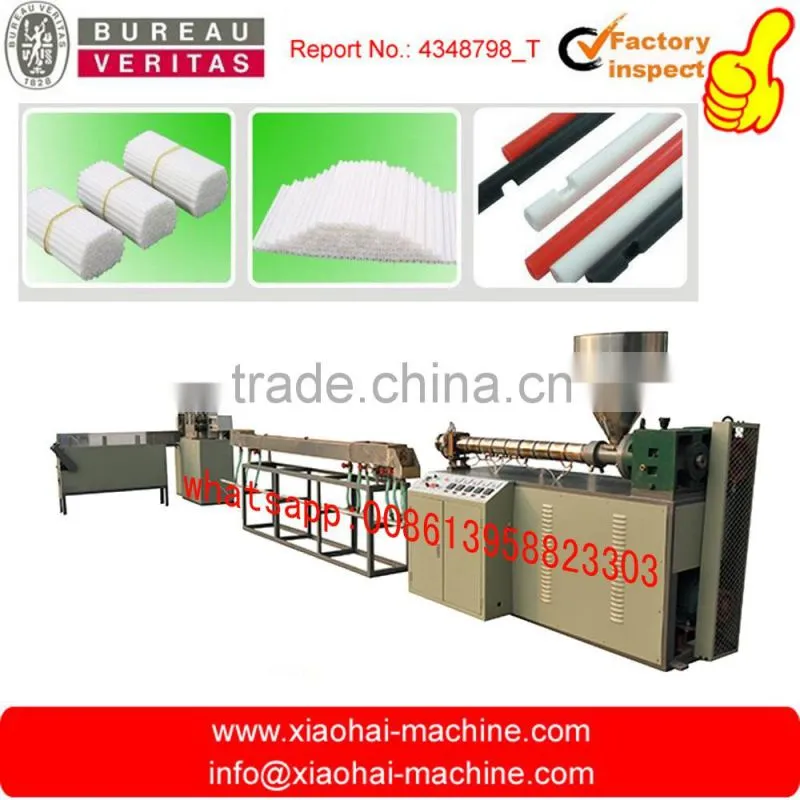

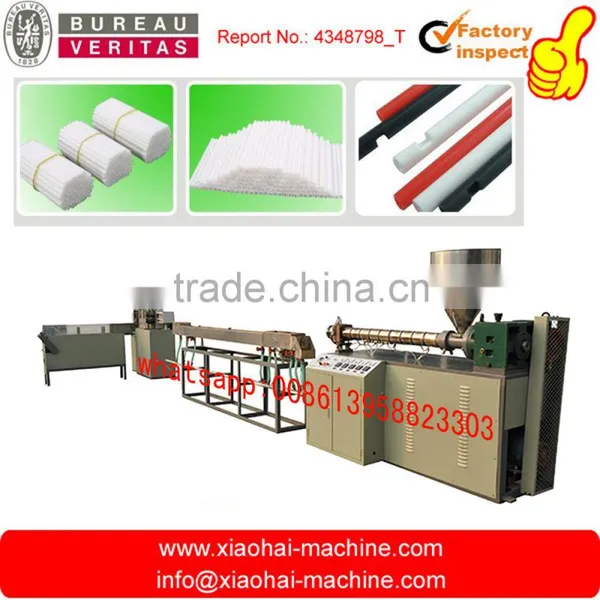

AUTOMATIC LOLLIPOP STICK MAKING MACHINE can use to produce lollipop candy stick . If you change the moulds. It can also produce the plastic cotton swab stick ect. The plant mainly consists of extruder, vacuum calibration and cooling unit, hauling and cutting device. Mainframe of the machine is of a compact, robust construction. The screw and the tubes is optimization designed , using the high performance alloy 38CrMoAiA, all these make the machinecharacterized by plasticizing uniform, extrusion quantity stability, high productivity, long using life ect. All the driving motors of the extruder, the hauling & cutting machine are stable in operation and exactly controlled,
With compact structure and unique reliability, the plant is one of the most preferred equipments in lollipop stick processing.
PROCESSING CHART:
Extruding → Vacuum cooling → hauling & cutting
MAIN TECHNICAL PARAMETERS:
Extruder | |
Screw(suit PP,PE) | |
Dia | 50mm( special purpose screw) |
L/D | 28:1 |
Material | professional 38CrMoAlA |
Screw heat treatment | Nitrogenized and polished Cr plated |
Gearbox | |
Box material | 40CrMnMo |
Gear type | helical gear |
Gear material | 20CrMnTi |
Roller material | 40Cr |
Lubrication system | pressure lubrication system |
Controlling system | |
Controlling power | 11kw |
Controlling type | frequency transmitting |
Electrical control cabinet | |
Heating control area | 5 |
Barrel heat dissipation area | 3 |
Cooling system | cooling fan (80W*3) |
Cover material | stainless steel |
Electric cabinet form | Couplet body type electric ark |
Electrical source | Three-phase five line 380V*50HZ |
5 meter stainless steel spray-type cooling tank | |
Water cooling tank material | SUS304 stainless steel. |
Tractor | |
Controlling power | 1.5kw |
Controlling type | frequency converting control |
Cutting device | |
Controlling power | 0.75kw |
Controlling type | frequency converting control |
Range of application

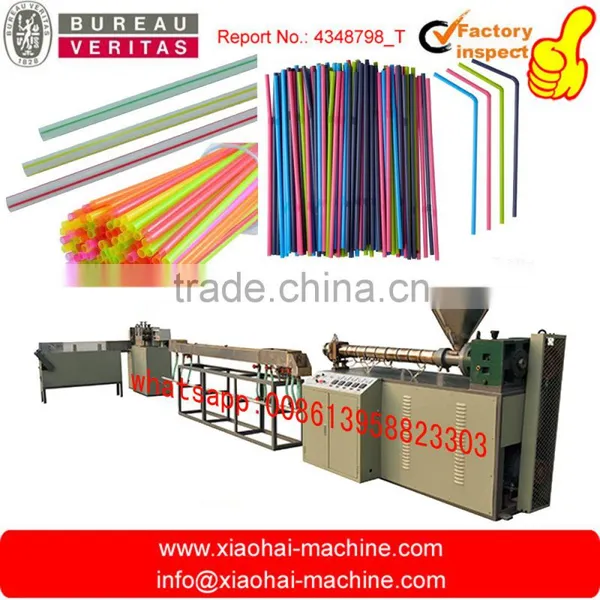

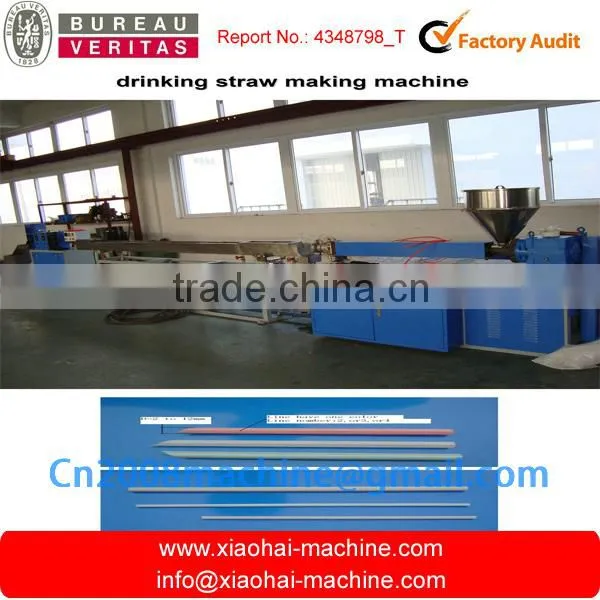

Food industry : drinking straw , candy stick , coffee stick .etc
Other industrial fileds : pen refill , medical pipe , small diameter tube .etc
Main technological parameter
Capability: 25-35kg/h
Power supply:7.5KW 380V
Length of cooling container: 3400mm
Features:
Materials: PP, PE
Diameter range for the stick: 2.5mm - 4.0mm
Length range for the stick: 75mm-115mm
Diameter (mm): 2 – 12mm(the diameter of tube within 12 mm that all can be make by change mould)
Length (mm): 5 - 1,000 (can be adjust)
Production capacity: 1000-1800pcs/h (standard)
Line speed: max. 250m/min
Colours:One colour.
Notch cutter:One side one notch,one side two notches,each side one notch ,no notch.

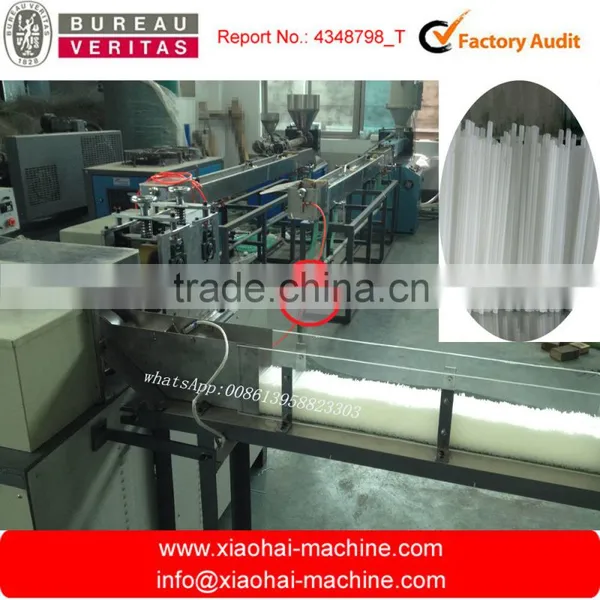

The cutting unit adopted the big plate cutter and with automatic gathering system.
