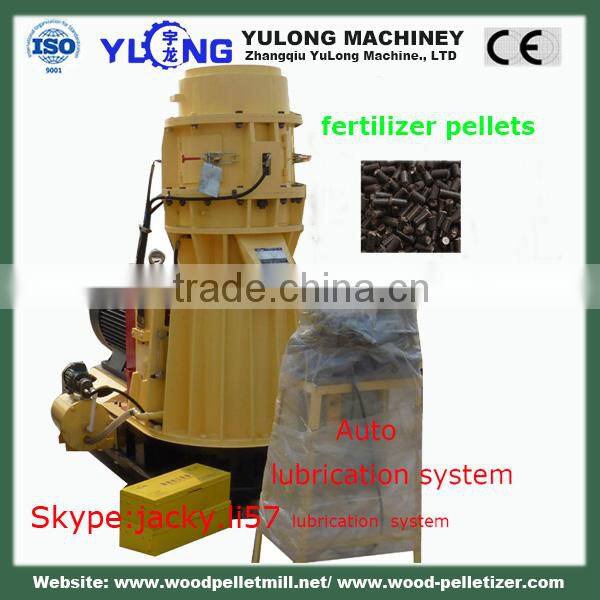

fertilizer pellet plant making organic fertilizer
- 100 Set / Sets per Month
- Qingdao port
- T/T
Product Details
Condition: | New | Product Type: | Fertilizer | Place of Origin: | Shandong, China |
Brand Name: | YULONG | Model Number: | SKJ350 | Voltage: | 380v50hz3phase or others |
Power(W): | 37kw | Weight: | 2200kg | Certification: | CE ISO SGS |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
iron sheet case
Product Description
Specifications
fertilizer pellet plant1.suitable different materials
2.high efficficiency low consumption
2-8mm pellets

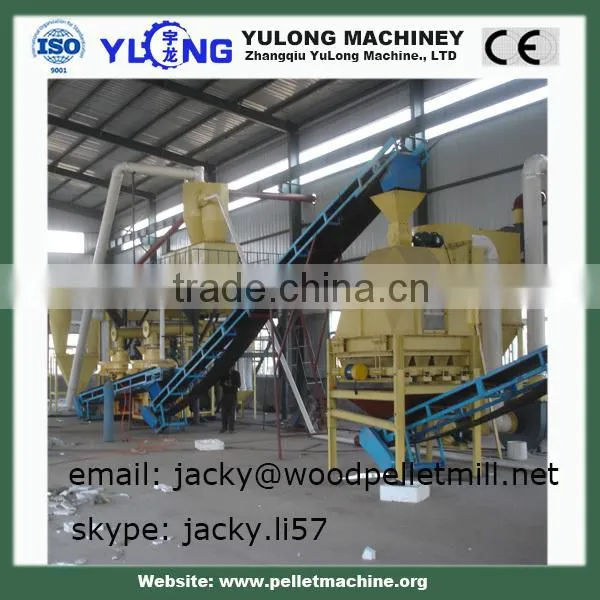

complete Organic fertilizer plant:
Organic fertilizer plant make ball or pellets fertilizer, the raw material is different from animal manure, humic acids, animal organic waste, and mix straw, agriculture stalk, ext, or little chemical material, and other additives etc. the finished fertilize granule diameter is 2-8mm diameter, it can be adjust to meet your requirement.
Process of the organic fertilizer making:
1,First process: raw material fermentation. our main machine used for material fermentation is Upender.Feeding materials and outlet materials way are both very flexible from the front of fermentation tank ,The leavening such as manure can stay inside for long time,and compost can be used as moisture adjusting materials.
Due to high temperature ferment (chicken manure around 80°C centigrade,pig manure around 75°C,cattle manure around 70°C) and long time remaining,it can produce high quality compost fertilizer without the second ferment. It is greatly helpful for renewing the earth.
2,Second process: material batching and mixing:
after fermentation, if any other material or additives need to add, we match the batcher and mixer equipments for making good and different kind organic fertilizer for different agriculture.
3,Third Process: crusher material
we use the horizontal chain hammer mill- Specifically Designed-For crushing oversize compound and inorganic materials efficiently and at high rates of production.. Non-Clogging Design - Ample clearance throughout the flow of material, prevents build-up and production down time.. Easy Access-Quarter section of housing can be removed by taking out bolts which provides good accessibility.. Simplified Maintenance -All component parts can be easily removed and replaced.
4,Forth process: granulating
Ball shaper adopts press pelletizer, polishing and shaping new technology which completely changes processes such as large investment, complex technology etc. it can change pellet size by changing die diameter, change the die for different pellets sizes.
Pellets are uniform, smooth, round, high-strength and good flow ability, pellet-forming rate is above 95%. The machine combined three in one make the low temperature drying, cooling, screening finished together. The whole process is of low investment and low operation cost. Microorganisms survival rate>90%.
It is widely used in animal breeding, brewing, sugar producing, paper making,
medicine, cigarette factory etc organic waste pelletizing. It can produce round pure organic fertilizer, inorganic fertilizer, bio-organic fertilizer. It is the most ideal equipment for (Biological) organic fertilizer factory.
5,Fifth process: drying and cooling finished granules
dry and cool the granules for packing. GHG Series Rotary Dryer adopts low-speed rotarying, curved plate hammering, dispersing raw materials to make the high temperature air flow current mixed with raw materials to achieve the drying effect.
This machine adopts counter flow cooling theory,making pellets cooling enough and evenly. The special discharging of slide value type structure make the machine operate smoothly and unload fluently. After cooling ,the pellets temperature is not higher than +3-5°C of room temperature.
6,Sixth process: packing fertilizer
Adaptive software, with control parameters automatically setting, automatic fall correction, ultra poor alarm, fault diagnosis, and other functions. packing bags for 3-50kg/bag.
Technical parameter of the granulator:
model | Output(t/h) | Power(kw) | Specification(mm) | Weight(t) | Size(mm) |
SKJ2-250 | 0.1-0.2 | 15 | φ4-6 | 0.5 | 1400X600X1000 |
SKJ2-280 | 0.2-0.3 | 22 | φ4-8 | 0.65 | 1760X670X1600 |
SKJ2-300 | 0.3-0.6 | 30/22 | φ4-8 | 0.76 | 1760X670X1600 |
SKJ2-350 | 0.5-1 | 37 | φ4-10 | 1.2 | 1800X800X1700 |
SKJ2-450 | 0.8-1.2 | 45 | φ4-10 | 1.8 | 1800X850X1750 |
SKJ3-350 | 0.6-1 | 37-4 | φ4.5-10 | 2.2 | 1900×850×1750 |
SKJ3-450 | 1-1.5 | 45/55-4 | φ4.5-10 | 4.3 | 2300×1100×1900 |
SKJ3-550 | 2-3 | 75/90-6 | φ4.5-12 | 5.5 | 2350×1000×2050 |
SKJ3-800 | 3-5 | 130-160 | φ4.5-12 | 6.8 | 3200×1235×2700 |
SKJ4-1200 | 5-8 | 280-320 | φ4.5-15 | 19 | 3800×1700×4200 |
Zhangqiu Yulong Machine Co.,Ltd
Add: Xiuhui, Zhangqiu, Jinan, Shandong Province, China
contact:jacky li
mp:0086-18615685055
skype:jacky.li57
Tell: 0086-531-83483997
Fax: 0086-531-83483378
Company Profile
Zhangqiu Yulong Machine Co., Ltd. is located in Zhangqiu - an ancient city in Shandong Province of China.
Our company is a hi-tech enterprise that integrates research, development, manufacturing, training and trading, and has been involved in the industry of biomass energy, animal feed, fertilizer and environment protection for many years. Through our effort and constant technology innovation, we are manufacturing wood pellet mill, feed pellet mill, fertilizer pellet mill, hammer mill, wood chipper, crusher, dryer, cooler, screener, and other assistant equipments, besides this, we also have more experience and mature technology to design and install all kinds of complete production line as per different customer's situation. Except for domestic market, our machines were exported to Southeast Asia, Middle east, Europe, American, and we also have successfully developed long term dealers in Thailand, Vietnam, India, Russia, Poland, Romania, Bulgaria, Greece, Netherlands, Egypt, South Africa, Argentina.
We are always improving our designs and patterns to confirm to the world market. And by now we have established quality assurance system and professional service centers in China and some countries. High quality, creativeness and reliability are our strong points.
Your satisfaction is our permanent pursuit! Hope we could cooperate together and create a better tomorrow.
