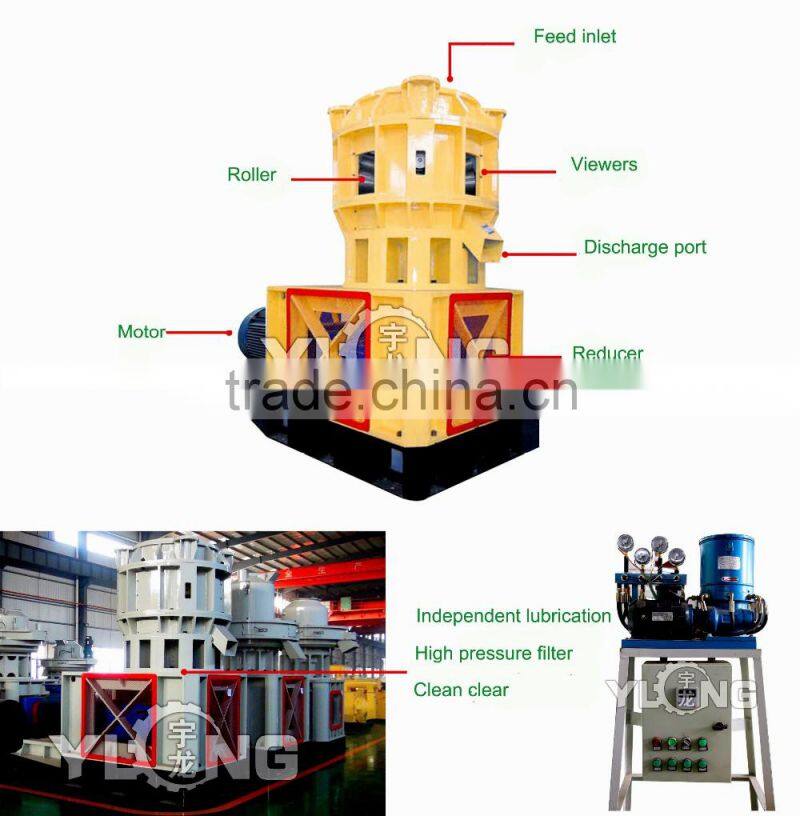

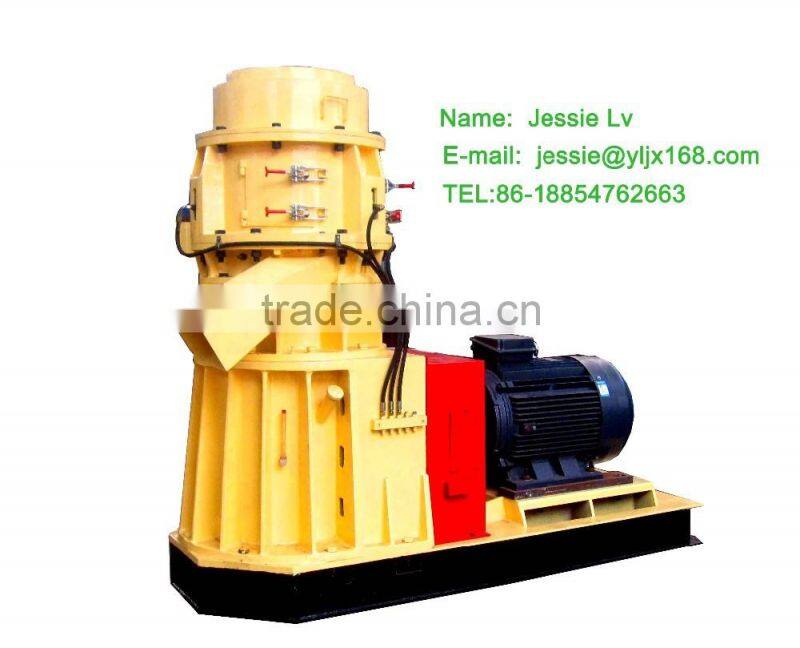

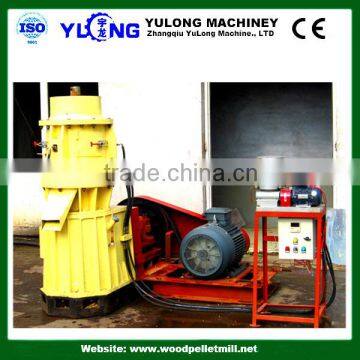

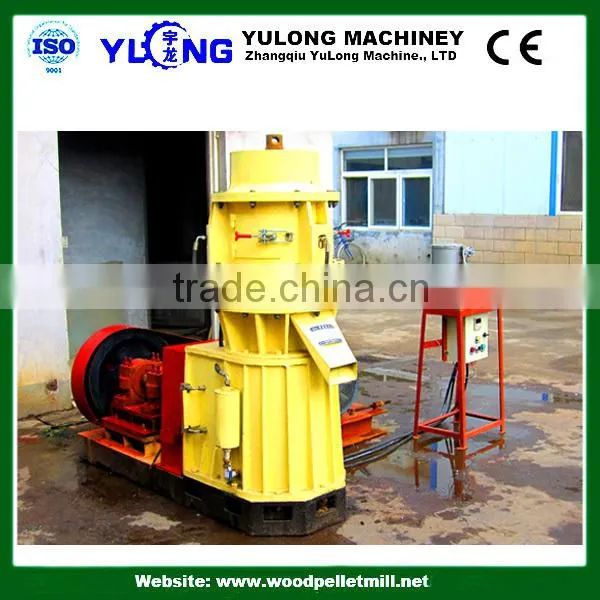

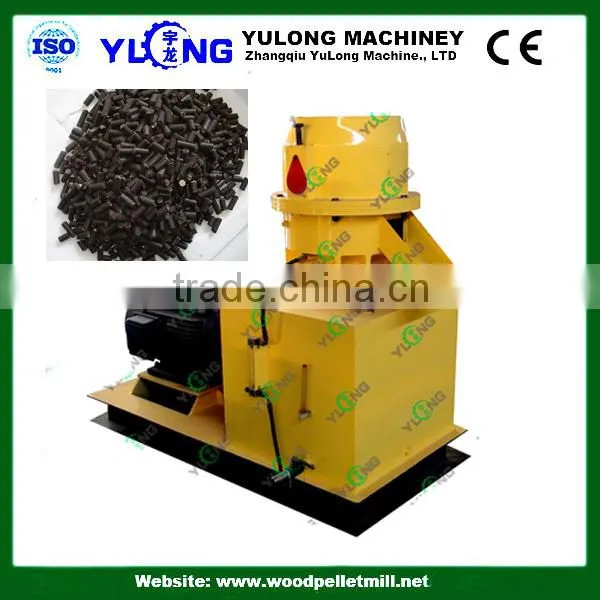

Organic fertilizer pellet machine introduction:
Fertilizer pellet machine rollers adopt taper shape, which makes their ends rounding linear speed
consistent with flat die, so it avoid dislocated friction which maybe created between rollers and
die. In this way, it can reduce friction and save much energy consumption, lengthen die and
rollers life. This is significant difference between the similar compression formation machinery.
Body of the rollers is large and groove is broad. Bearing pressure and wear resistant.
Fertilizer pellet machine advantage :
1. rollers being enlarged, the bearing enlarged, so it can withstand bigger standing ability.
2. roller being enlarged, the temperature caused by extrusion friction not to be easy to transmit the
bearing room to guarantee the bearing work in the low temperature and the lubrication grease not easy to overflow.
3.rollers being enlarged, rollers can be repaired 2-3 times, the lifetime is longer,so that the production cost is reduced,
and the project profit space is enlarged.
Technical parameters:
model |
Output(t/h) |
Power(kw) |
Specification(mm) |
Weight(t) |
Size(mm) |
SKJ2-250 |
0.1-0.2 |
15 |
φ4-6 |
0.5 |
1400×600×1000 |
SKJ2-280 |
0.2-0.3 |
22 |
φ4-6 |
0.65 |
1760×670×1600 |
SKJ2-300 |
0.3-0.6 |
30/22 |
φ4-8 |
0.76 |
1800×700×1650 |
SKJ2-350 |
0.5-1 |
37 |
φ4-8 |
1.2 |
1800×800×1700 |
SKJ2-450 |
0.8-1.2 |
45 |
φ4-10 |
1.8 |
1800×850×1750 |
SKJ3-350 |
0.6-1 |
37-4 |
φ4.5-10 |
2.2 |
1900×850×1750 |
SKJ3-450 |
1-1.5 |
45/55-4 |
φ4.5-10 |
4.3 |
2300×1100×1900 |
SKJ3-550 |
2-3 |
75/90-6 |
φ4.5-12 |
5.5 |
2350×1000×2050 |
SKJ3-800 |
3-5 |
130-160 |
φ4.5-12 |
6.8 |
3200×1235×2700 |
SKJ4-1200 |
5-8 |
280-320 |
φ4.5-15 |
19 |
3800×1700×4200 |
