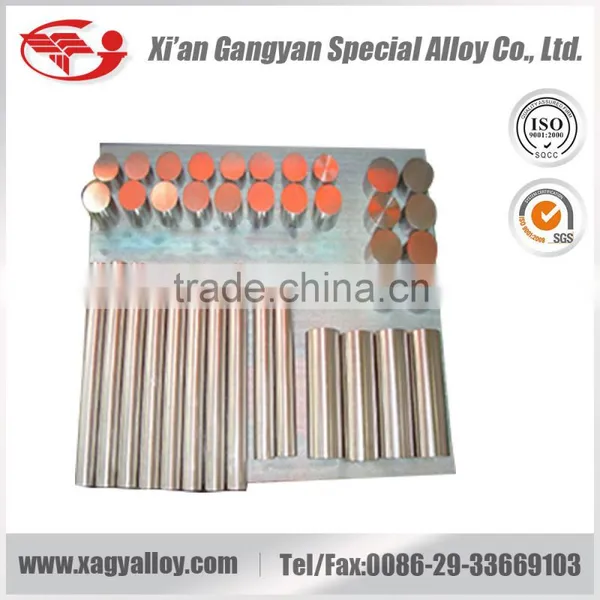

High Quality Invar 36 Alloy Bar With ASTM F1684

High Quality Invar 36 Alloy Bar With ASTM F1684 thumbnail-1
High Quality Invar 36 Alloy Bar With ASTM F1684 photo-1
US$ 30.00 - 30.00 MOQ: 50 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
XAGY
Model Number:
Invar 36 4J36
Contact Supplier Request Quote Chat Now
Xi'an Gangyan Special Alloy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an airport; Beijing airport; Shanghai airport; Tian jin port; Qingdao port etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name XAGY
Model Number Invar 36 4J36
Application Instrument and meter and hermal bimetal passive layer
Shape Bar Plate Strip Sheet and Pipe
Material FeNi alloy
Dimensions Round Bar
Chemical Composition Ni 36% Fe Bal.
Product Description

 *Invar 36 alloy, ASTM F1684, UNS k93600 (FeNi36), Chinese 4J36



Invar alloy is  A Nickel Iron, low expansion alloy containing 36% Nickel. It maintains nearly constant dimensions over the range of

normal atmospheric temperatures and has a low coefficient of expansion from cryogenic temperatures to about +500°C. Nilo 36 also retains good strength and toughness at cryogenic temperatures. Applications include standards of length,

thermostat rods, laser components and tanks and piping for the storage and transportation of liquefied gasses.





Grade & Chemical Composition (see Table 1)

Table 1 Grade & Chemical Composition



Grade

Chemical Composition (%)



C

Si

P

S

Cu

Se

Mn

Ni

Co

Fe



≤













4J32

0.05

0.20

0.020

0.020

0.40~0.80



0.20~0.60

31.5~33.0

3.20~4.20

Balance

4J36

Invar 36

0.05

0.30

0.020

0.020





0.20~0.60

35.0~37.0



Balance

4J38

0.05

0.20

0.020

0.020

-

0.10~0.25

0.80

35.0~37.0

-

Balance

4J40

0.05

0.15

0.020

0.020

-

-

≤0.25

32.4~33.4

7.00~8.00

Balance



Notes:1. Under condition that the average coefficient of the linear expansion meets the requirements of the standard, the content of nickel and cobalt

are allowed to deviate from the stated range.

2.  The shape and dimensions of the alloys are in compliance with GB/T14985.We could do any other products with specified technical standard, say,

 ASTM,SAE,DIN,S.E.W.,JIS,ISO,IEC,NF,BS.PLS email us about your standard requests.



                                                         Physical Property (see Table 2 –Table 3)



Grade

Heat Treatment of the Samples

Mean Coefficient of Linear Expansion

20~l00℃

20~300°C

4J32

To heat the semi-finished products samples to 840±10°C, hold for 1hour,

and quench in the water. Machine the samples to finished samples.

And heat at 315±10℃ for 1h, furnace or air cool.

≤1.0



4J36

Invar 36

≤1.5



4J38

4J40



≤2.0



                                                     Table 3 Typical Expansion Coefficient



Grade

Mean Coefficient of Linear Expansion

20~50℃

20~100℃

20~200℃

20~300℃

20~400℃

20~500℃

4J32

0.7

0.8

1.4

4.3

7.2

9.3

4J36

Invar 36

0.6

0.8

2.0

5.1

8.0

10.0

4J40

1.4

1.3

1.2

1.7

4.5





Note: The data in the tables are just for reference.



Usage: Grade 4J32 and 4J36 Invar 36 are suitable for environmental temperature, make dimensional precision parts for

            instrumentation.

            4J38 are used for easy to cut alloys.

            4J40 are used for parts that require low expansion at high temperatures.



Specification: Sheet/Plate, Bar/Rod/Wire/Coil,Capillary/Pipe/Tube



Note: We could do any other products with specified technical standard, say, ASTM,SAE,DIN,S.E.W.,JIS,ISO,IEC,NF,BS.PLS contact us for more information: Tel: +86-29-33669103 or e-mail us at: webmaster@
