Home > Products > Expansion alloy > High quality 4J29 Kovar pipe tube with ASTM F15
High quality 4J29 Kovar pipe tube with ASTM F15
- 0 per Month
- Xi'an port; Xianyang port; Tianjin port; Shanghai port
- T/T
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | XAGY | Model Number: | 4j29 kovar material |
Application: | glass-to-metal seals / ceramic-to-metal seals, Kovar sealing with glass tube | Shape: | Square, Rectangle | Material: | Kovar Alloy Plate |
Dimensions: | Thickness ≥3 mm | Chemical Composition: | FeNi29Co17 |
Product Description

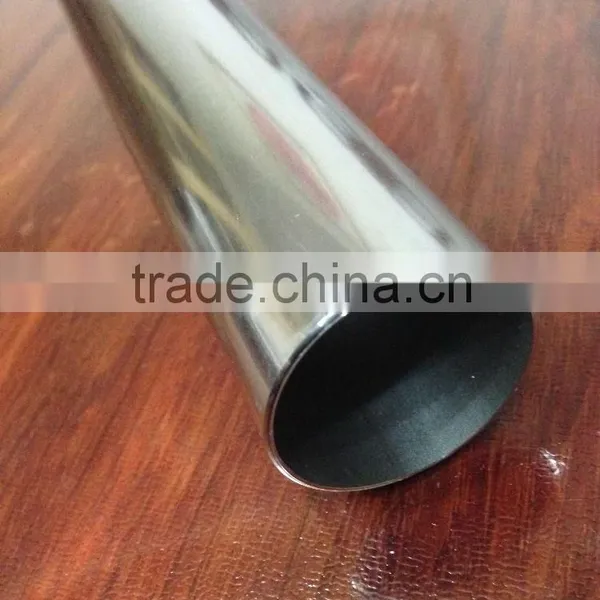

High quality 4J29 Kovar pipe tube with ASTM F15
4J29 Kovar is A Nickel-Iron-Cobalt, controlled expansion alloy containing 29% Nickel. It’s coefficient of expansion (which decreases with rising temperature to the inflection point), matches the expansion rate of borosilicate glasses and aluminia ceramics. Applications include glass to metal seals in applications requiring high reliability or resistance to thermal shock, ie. high-power transmitting valves, transistor leads and heaters and photography flash bulbs.
Grade | Chemical Composition (%) | ||||||||||
C | P | S | Mn | Si | Cu | Cr | Mo | Ni | Co | Fe | |
≤ | |||||||||||
4J29 Kovar | 0.03 | 0.020 | 0.020 | 0.5 | 0.30 | 0.20 | 0.20 | 0.20 | 28.5~29.5 | 16.8~17.8 | Balance |
