CE ISO SGS Approved SG65*55 High Quality Tapioca Powder Grinding Machine (GRIND TAPIOCA CHIP) for Fish,Cattle,Pig Animal feed
- 60 Set / Sets per Month
- Qingdao
- T/T
- CE ISO SGS Approved SG65*55 Groundnut or Peanut Shell Grinding Machine
- SG60*27 Rice Husk Grinding Machine with 22kw Power for 0.5-0.8t/h sawdust and 1-2t/h cereal or manure grinding
- SG50 Small Grinding Machine for Sale with 11kw Power for 0.2-0.4t/h biomass wood and 0.6-1.0t/h corn or manure grinding
- Herb Grinding Machine Price List
- CE,ISO,SGS Approved High Efficiency Wood Sawdust, Corn Stalks, Soybean Straw Industrial Wood Hammer Mill
- YULONG SFSP Multifunctional Wood Hammer Mill Price
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | YULONG |
Model Number: | SG | Voltage: | 380V,50Hz | Power(W): | 45 |
Dimension(L*W*H): | 1700*1000*1100mm | Weight: | 1.5t | Certification: | CE ISO SGS |
Warranty: | 13 months | After-sales Service Provided: | Overseas service center available |
Packaging Details
seaworthy packing
Product Description

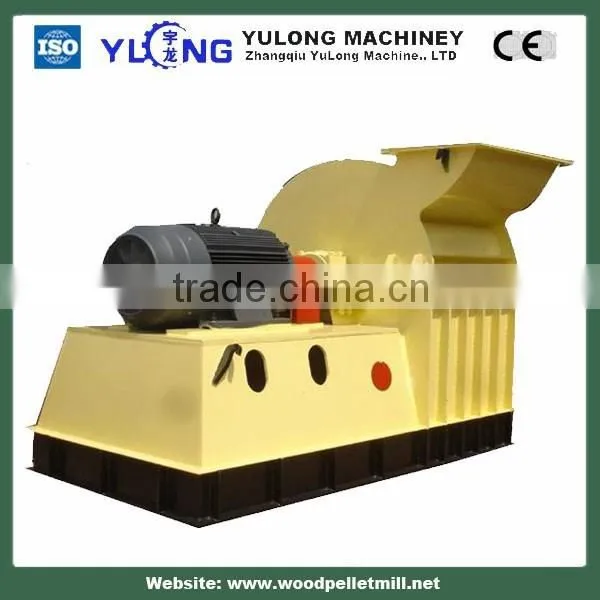

YULONG CE ISO SGS Approved SG65*55 High Quality Tapioca Powder Grinding Machine (GRIND TAPIOCA CHIP) for Fish,Cattle,Pig Animal feed
YULONG Brand Multifunctional Hammer Mill SG40,SG50,SG65,SG130 is our approved products and it has water cooling system.It mainly grinds the WASTE RUBBER,PVC FOAMING BOARD and all kinds of WOOD PLECES,STALK,etc.Reasonable structure,durable firm,reliable safe,easy operation,small vibration and high efficiency.It is widely used in the biomass fuel factory,power station,fodder factory,cultivation factory,organic fertilizer factory,Chinese medicine,chemical industry and so on.
Hammer Crusher working principle:
Groups hammer through the power transfer turned, after a certain speed is reached, the feeding material repeatedly broken large into small .As the function of blower, the crushed material through the hole outside of the screen.It is called a hammer mill. (Note: this grinder is not a fine grinding);
In terms of layout, mill needs suction system discharge ( cyclone and fan). The centrifugal force of the rotor production is not sufficient to properly discharge.
Mill structure: (core)
Mill cores are the rotor, shaft, rotor plate, pin shaft , hammer, and spacer components
SG series multi-purpose hammer mill features:
1. reasonable structure, the rotor is measured by Dynamic Balance, smooth operation;
2. shell increased stiffener rib, guarantee the stability of operation;
3. inlet over welded deformed bar, improving production efficiency.
The function: a. Increase collision rates, efficiency;b. protection screens;
4. a wide range of feeding can be selected facing up or on one side according to the material the size, so you can crush some long and thin materials, such as tree branches, straws;
5. this machine can be added water cooling systems,while the working machine is cooling.Guarantee stable long-term work; this function only should be used for PVC plate smashing
6. this series of crusher is mainly applicable to biomass energy pellet industries.
Versatile hammer mill for raw materials:
1. feeding inlet facing up, suitable for crushing small size material, such as wood chipper cut out of wood, hay cutter or rotary cutter cut out of straw/stalk ;
Dimensions : 3cm-5cm long, width 3cm-5cm ,thickness does not exceed 2cm;
2. feeding inlet on one side, suitable for relatively large size items, such as small branches, splint, thin veneer, all kinds of crop straw, waste paper, waste paper cartons;
Length is not restricted, width not exceeding inlet width, diameter or thickness does not exceed 2cm
Note: the feed size larger, production would be reduced
We produce biomass pellet making line machines, such as wood logs debarking machine, wood logs splitter,wood sawdust making machine ,wood chipper, hammer mill, grass/straw cutter ,
straw bale crusher ,pellet machine and briquette machine, dryer and cooler, screener, mixer ,
biomass pellet boiler ,pellet packing machine and all conveyors e. c. t. Our factory has more than 17 years history, CE, ISO9001 high quality certificate, for sawdust wood crusher/wood chip crusher/wood crusher machinedetails, as below :
1. sawdust wood crusher/wood chip crusher/wood crusher machine is the most ideal grinding equipment for all kinds of wood chips,wood shavings,grass,straw,stalk, rice husk,palm fiber and so on.when crush plastic, PVC, rubber e.c.t ,it adpopts water cooling structure , avoiding the damage to spare parts due to long time working friction .except biomass , it also can crush animal feed materials such as soybean, maize, cereal and fertlizer materials from animal manure , chemical e.c.t which is mainly used in wood factory,feed factory, organic fertilizer factory, and so on.
2.we will install fit hole screener sieve at the sawdust wood crusher/wood chip crusher/wood crusher machinebottom according to materials humidity .if raw materials were high humidity , then we will install 10-30mm hole screener even no screener at the bottom, if dry, then will install 2-4mm hole screener, which means will outlet smaller than 2mm fine powder.
3. The sawdust wood crusher/wood chip crusher/wood crusher machinekey spare parts such as hammers and screener are made by our CNC systems, through high technical heat treatment, standing out from other suppliers is that we could ensure the parts high precision and good quality.

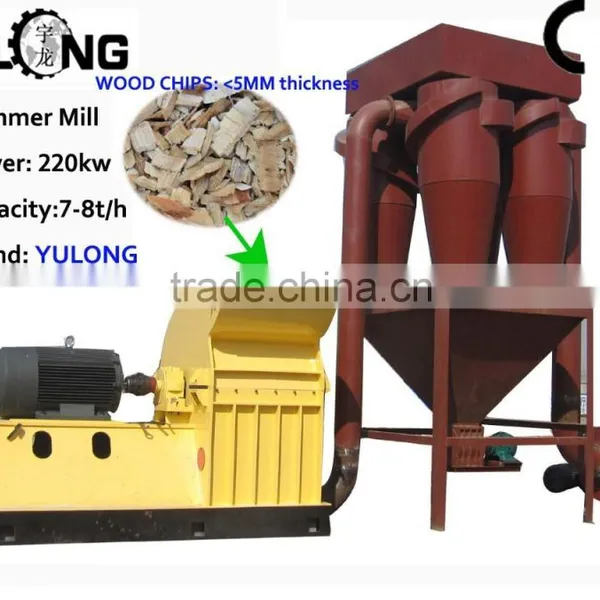

4.sawdust wood crusher/wood chip crusher/wood crusher machine works connect with air fan and cyclone,air lock ,dust filter ,after crushed ,the powder will outlet from cyclone bottom, which is very environmental protection and easy to collect dust
5.sawdust wood crusher/wood chip crusher/wood crusher machineis hot selling 9000 sets per year , we have big discount at this moment , for any questions, please feel free to ask.
Application:
Zhangqiu Yulong Machine Co.,Ltd
Add: Nanguan Industrial Park,Xiuhui Town,Zhangqiu District,Jinan City, Shandong, China
Tel: +86-15550075816
Fax: +86-531-83483378
Mail/Skype: linda(@)
Web:
Whatsapp/Wechat:0086-15550075816
QQ:2192760470
Company Profile
Zhangqiu Yulong Machine Co., Ltd. is located in Zhangqiu - an ancient city in Shandong Province of China.
Our company is a hi-tech enterprise that integrates research, development, manufacturing, training and trading, and has been involved in the industry of biomass energy, animal feed, fertilizer and environment protection for many years. Through our effort and constant technology innovation, we are manufacturing wood pellet mill, feed pellet mill, fertilizer pellet mill, hammer mill, wood chipper, crusher, dryer, cooler, screener, and other assistant equipments, besides this, we also have more experience and mature technology to design and install all kinds of complete production line as per different customer's situation. Except for domestic market, our machines were exported to Southeast Asia, Middle east, Europe, American, and we also have successfully developed long term dealers in Thailand, Vietnam, India, Russia, Poland, Romania, Bulgaria, Greece, Netherlands, Egypt, South Africa, Argentina.
We are always improving our designs and patterns to confirm to the world market. And by now we have established quality assurance system and professional service centers in China and some countries. High quality, creativeness and reliability are our strong points.
Your satisfaction is our permanent pursuit! Hope we could cooperate together and create a better tomorrow.
