Wood Pellet Making Line

Wood Pellet Making Line photo-1
US$ 9,000 - 89,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
yulong
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao CHINA
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name yulong
Model Number XGJ560
Voltage optional
Power(W) 90kw
Dimension(L*W*H) 2600*1300*2300mm
Weight 6.5ton
Certification CE,ISO9001
Warranty 1 YEAR
After-sales Service Provided Overseas service center available

Wood Pellet Making Line



My company receives many years of manufacturing production, installation and commissioning of experience, the products have won universal praise shares of large customers.



Wood Pellet Making Line

Wood Pellet Making Line

Wood Pellet Making Line

Wood Pellet Making Line

Wood Pellet Making Line



Wood Pellet Making Line



Wood Pellet Making Line



All solutions to provide clients with biomass energy equipment





1. wood pellet production line can press 2-8mm diameter biomass fuel pellet and fertilizer pellets ,such as biomass waste from sawdust, rice husk, coffee husk, agricultural stalk, straw, peanut shell, sun flower seed, palm shell, paper, plastic ect, such as fertilizer materials from animal manure ,plant waste ect . there is knives installed nearby our pellet outlet door, which can adjust pellet length.

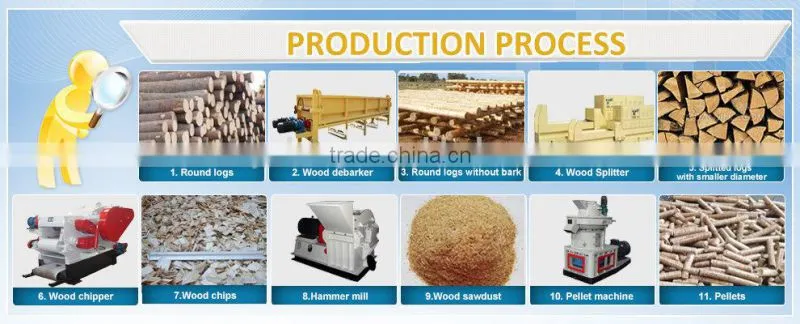

2.full wood pellet production line contains crushing part, drying part ,pressing pellets part, cooling part ,screening part, packing part. invest price is low and working efficiency is high

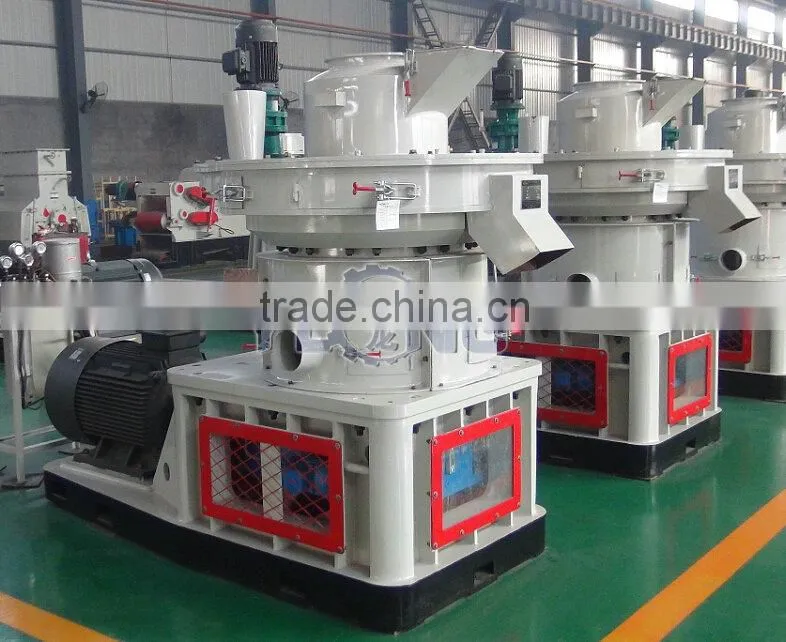

3.wood pellet production line key pellet machine has one two layers ring die inside and roller assemble , when works ,roller assemble will move , ring die keep stable , in this way will produce large pressure and press good pellets . Also the two layers die :top layer and bottom layer, only bottom layer works, when ring die is broken, then take over it and make top layer into bottom, in this way one ring die can use two times , also top layer and bottom layer hole can be different , so one ring die also can press two dimension pellets.but other suppliers pellet machine only can press one type.



4.wood pellet production line capacity is from smaller 500kg/h to bigger 10ton/h ,hundreds of lines are installed in China and abroad, such as Bulgaria, Denmark, Sweden , Romania ,Hungary, Argentina, Belarus,Japan ,Korea,India ,Vietnam Tunisia ,Malaysia, Gdynia ect . greatly welcome to visit .



6.wood pellet production line key pellet machine contains full automatic lubricated spare parts grease systems, which can lubricate spare parts rollers, shaft, bearings and gears automatically , the pressure between rollers and die can be adjusted automatically to fit for different materials pressure ratio ,now it is our national patent product .



7. wood pellet production line machines Spare parts are made by ourselves , mostly are made by CNC systems, through high technology heat treatment , we can ensure its high quality and good precision.



8.if you were interested in our wood pellet production line ,please choose your ideal pellet machine model as below and tell us your materials dimension and raw humidity. Then we will design the full flow chart with best price for you.



9.wood pellet production line is hot selling more than 60 full lines each year, we have big discount for old customer , greatly welcome to call and mail me for details .
