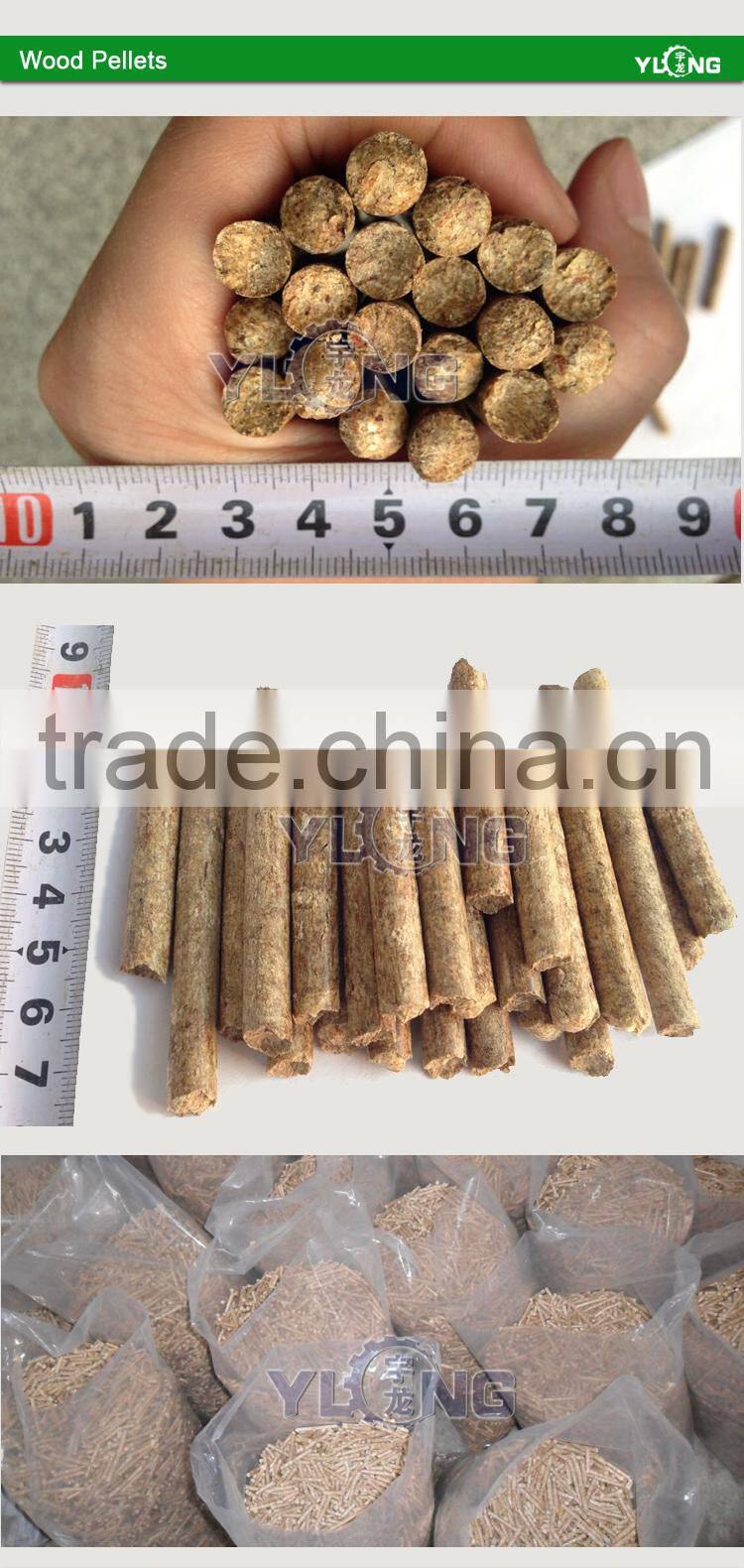

1. complete wood pellet line can press 2-8mm diameter biomass fuel pellet and fertilizer pellets ,such as biomass waste from sawdust, rice husk, coffee husk, agricultural stalk, straw, peanut shell, sun flower seed, palm shell, paper, plastic ect, such as fertilizer materials from animal manure ,plant waste ect . there is knives installed nearby our pellet outlet door, which can adjust pellet length.
2. complete wood pellet line contains crushing part, drying part ,pressing pellets part, cooling part ,screening part, packing part. invest price is low and working efficiency is high
3. complete wood pellet line key pellet machine has one two layers ring die inside and roller assemble , when works ,roller assemble will move , ring die keep stable , in this way will produce large pressure and press good pellets . Also the two layers die :top layer and bottom layer, only bottom layer works, when ring die is broken, then take over it and make top layer into bottom, in this way one ring die can use two times , also top layer and bottom layer hole can be different , so one ring die also can press two dimension pellets.but other suppliers pellet machine only can press one type.
plete wood pellet line capacity is from smaller 500kg/h to bigger 10ton/h ,hundreds of lines are installed in China and abroad, such as Bulgaria, Denmark, Sweden , Romania ,Hungary, Argentina, Belarus,Japan ,Korea,India ,Vietnam Tunisia ,Malaysia, Gdynia ect . greatly welcome to visit .
6. complete wood pellet line key pellet machine contains full automatic lubricated spare parts grease systems, which can lubricate spare parts rollers, shaft, bearings and gears automatically , the pressure between rollers and die can be adjusted automatically to fit for different materials pressure ratio ,now it is our national patent product .

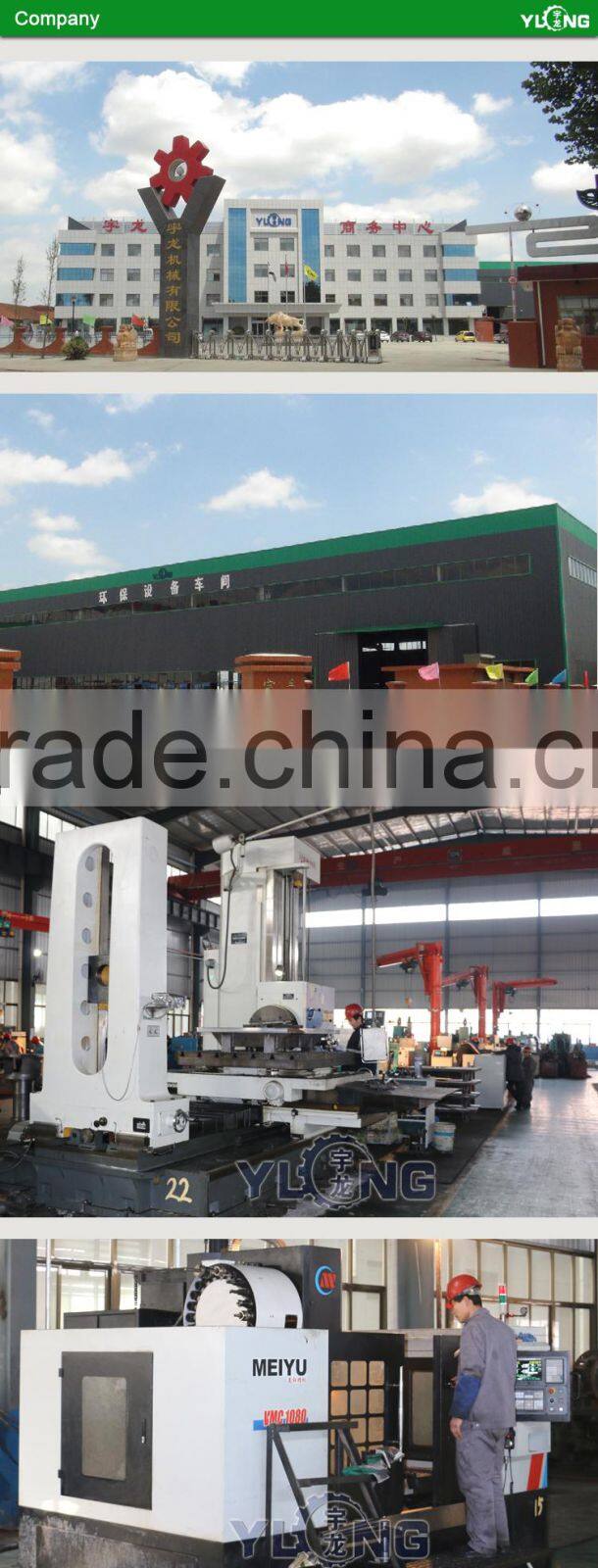

7. complete wood pellet line machines Spare parts are made by ourselves , mostly are made by CNC systems, through high technology heat treatment , we can ensure its high quality and good precision.
8.if you were interested in our wood pellet line ,please choose your ideal pellet machine model as below and tell us your materials dimension and raw humidity. Then we will design the full flow chart with best price for you.
plete wood pellet line is hot selling more than 60 full lines each year, we have big discount for old customer , greatly welcome to call and mail me for details .

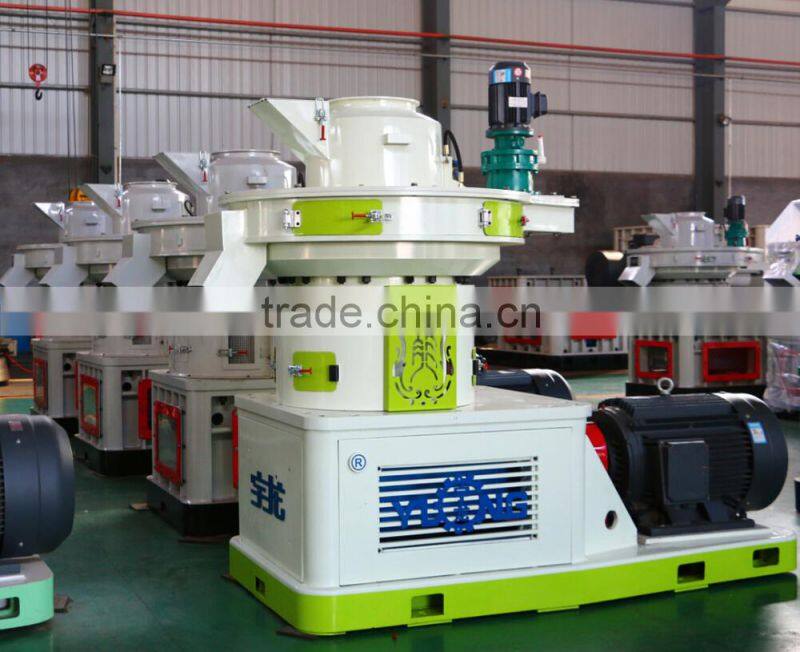

1. Pelet mill is our main product which has adopted the essence of pellet mill in oversea
market.
2. Pelet mill has filled the country blank in vertical feeding for ring die pellet mill and
reached theinternational advanced level.
3. Pelet mill is mainly applicable for difficult molding materials with low adhesion rate,
for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials.
4. Pelet mill can be used in feed mill, wood processing plants, fuel plants,
fertilizer plants, chemical plants etc. Since it requires less investment and yield quicker result and that no risk,Vertial Ring-die Wood Pellet Machine for sale is an ideal dense compression molding equipment.
Different Model Parameter
Model | Power (kw) | Capacity (t/h) | Product spec (mm) | Weight (t) | Dimension (mm) |
XGJ560 | 90+3+0.25+1.5 | 1- 1.5 | Φ4 -12 | 5.3 | 2600x1300x2300 |
XGJ720 | 160+3+0.25+2.2 | 1.5- 2 | Φ4 -12 | 9.5 | 2900x1300x2400 |
XGJ850 | 220+4+0.55+3 | 2- 3 | Φ4 -12 | 14.2 | 3300x1400x3100 |
XGJ920 | 315+5.5+3+0.55+3 | 3- 4 | Φ4 -12 | 18 | 3800x1680x3400 |
XGJ1050 | 360 | 5- 6 | Φ4 -12 | 24.5 | 3800x1880x3500 |
