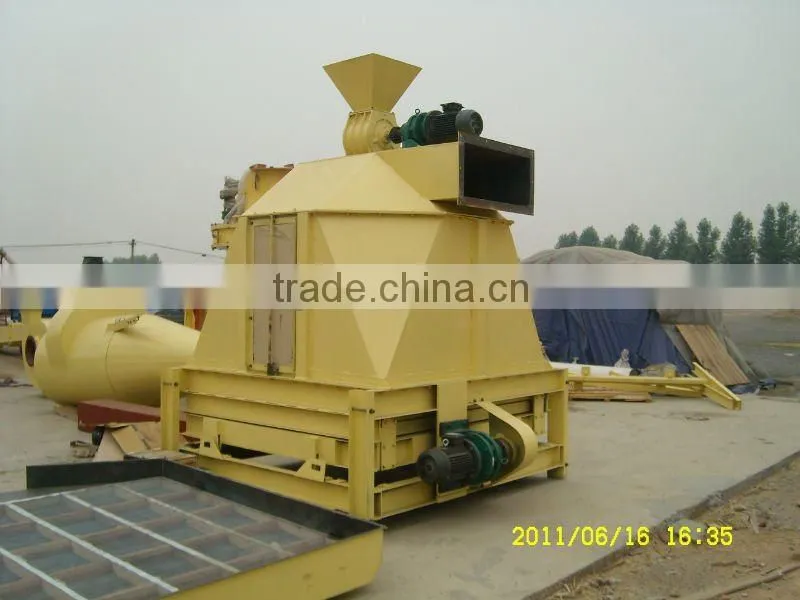

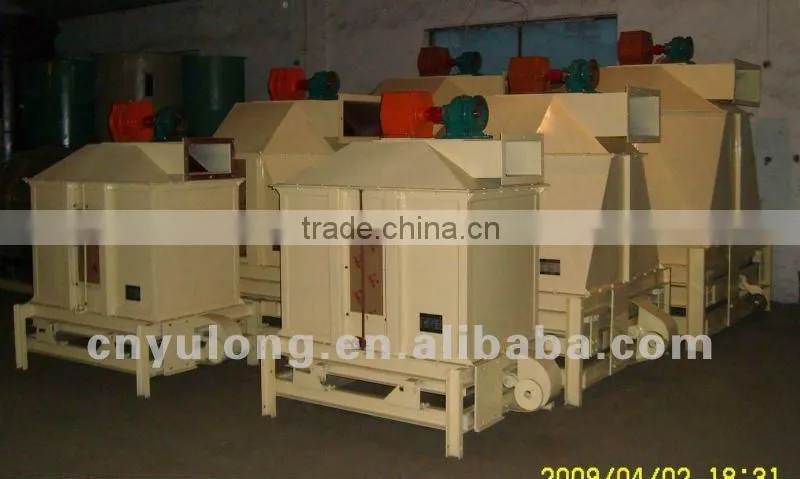

Best Price Wood/Sawdust/Straw Pellet Cooler With CE

Best Price Wood/Sawdust/Straw Pellet Cooler With CE thumbnail-1
Best Price Wood/Sawdust/Straw Pellet Cooler With CE photo-1
US$ 500 - 21,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Cooler
Place of Origin:
Shandong, China
Brand Name:
YULONG
Contact Supplier Request Quote Chat Now
Zhangqiu Yulong Machine Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Cooler
Place of Origin Shandong, China
Brand Name YULONG
Model Number SKLN
Certification CE
After-sales Service Provided Overseas service center available

Specifications

1.Counter flow pellets coller
2.Pellets can be cooled fully, evenly
3.CE SGS ISO9001 approved
4.high efficiency

We produce biomass pellet making line machines, animal feed pellet making line machines, fertilizer pellet making line machines such as wood logs debarker, wood logs splitter, grass cutter, straw bale crusher, sawdust making machine ,wood chipper, fertilizer ferment upender, hammer mill,pellet machine and briquette machine, dryer and pellet cooler, screener, mixer, pellet packing machine and all conveyors e. c. t. for pellet cooler details, as below :



1.pellet cooler is mainly to cool 2-8mm dimension  pellets, when outlet from pellet machines, the hot pellets temperature is about 60-80 centigrade, after cooling, the temperature is not higher than room temperature +3-5.



2.pellet cooler adopts counter flow theory, cold air goes inside of cooler from bottom to top, hot pellets goes to cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will cool them at the bottom gradually, in this way will reduce pellet broken , if cold air also go to cooler from top, which same as pellets, then hot pellets will meet with cold air suddenly ,then pellets will be easily broken, especially pellets surface. In this way can cool fully and equally, pellet broken rate is smaller than 0.2%.

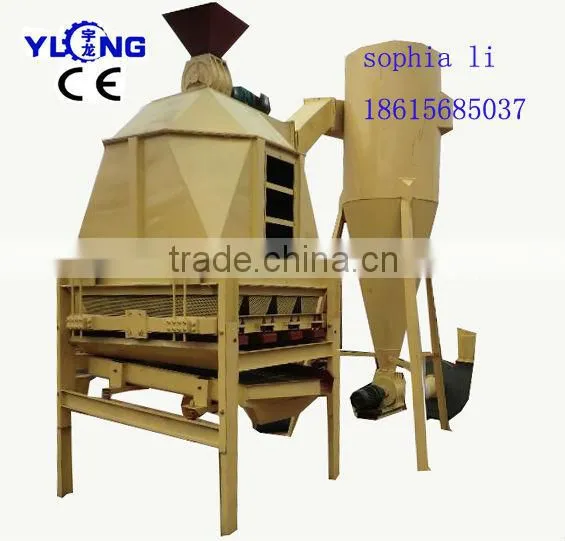

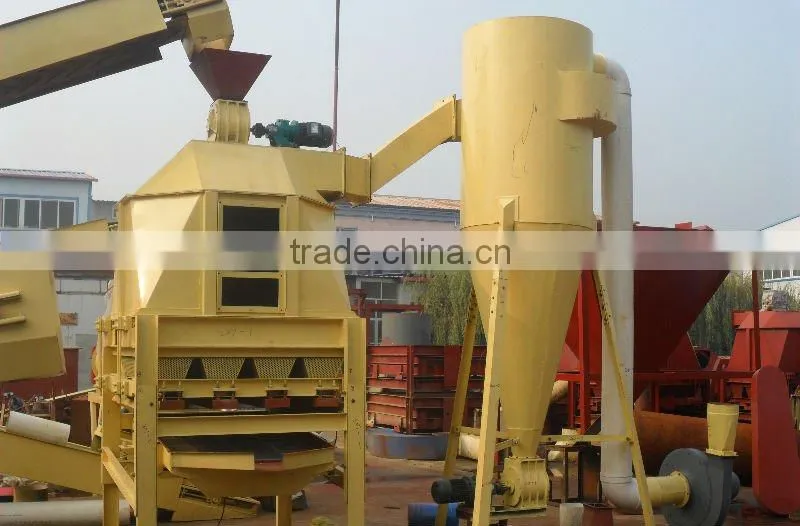

3.pellet cooler generally works with cyclone and air fan, air lock. which is used to clean dust, also it can install a screener at the cooler bottom, which can separate dust and good pellets after cooling.



4.pellet cooler is hot selling more than 5000 sets per year , greatly welcome to ask me for details., we have big discount for old customers.





Model

SKLN1.2

SKLN1.5

SKLN2.5

SKLN4

SKLN6

SKLN8

SKLN10

Output(t/h)

0.8-1.2T/h

1-2/h

3-5T/h

5-8T/h

8-12T/h

12-15T/h

15-20T/h

Capacity (CBM)

1.2

1.5

2.5

4

6

8

10

Cooling Time

Not less than 10 minutes

Cooled Temp (°C)

Room temperature + 3-5°C

Power (kw)

0.18

0.25

0.37

0.37

0.37

0.37

0.37×2

Wind Pressure

Higher than 200mm H2O

Power of Fan(kw)

5.5kw

7.5kw

11kw

18.5kw

22kw

30kw

37kw
