Help CenterSawdust Dryer Machine/rotary Drum Dryer
Related Products
Specifications
1.sawdust dryer machine dry biomass,fertilizer materials2.dry water:1.5t/h
3 45KW
4.CE,ISO9001
5.2.2*12m,3 drying layers
We produce biomass pellet making line machines such as wood logs splitter, wood logs debarker, wood
chipper, hammer mill, straw bale cutter, mixer, dryer and cooler, pellet machine and briquette machine
, pellet packing machine and conveyors e. c. t , for biomass dryer , we have two types, one is air dryer
, the other is rotary drum dryer ,it has more than 15 years history manufacture , all machines got CE,
ISO9001 high quality certificate
To learn our factory office and manufacture equipments , please see video as below:

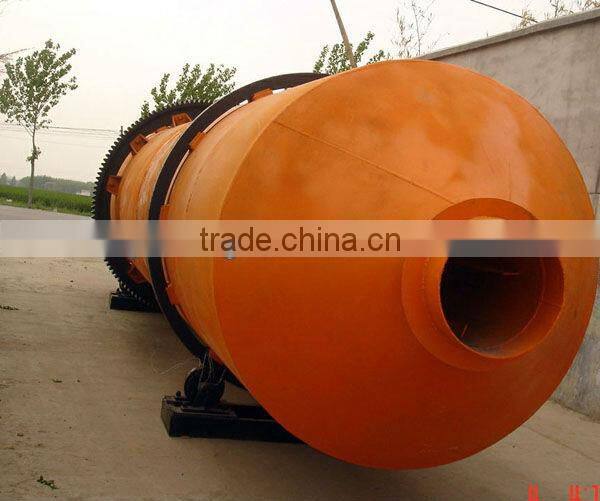

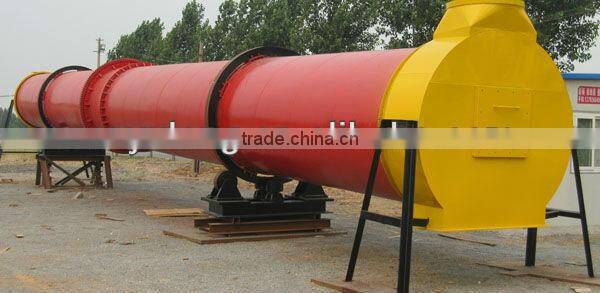

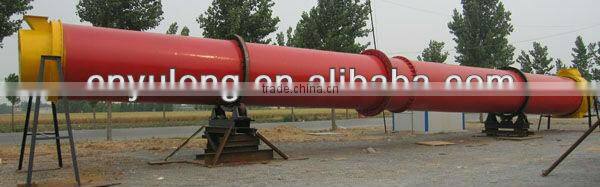

for sawdust dryer machine introduction as below :
1 sawdust dryer machine is mainly to dry biomass or Fertilizer powder materials ,at max feed 15mm
dimension materials, it has changeable speed rotary drum , which can dry high humidity materials, such
as to dry biomass from sawdust, straw, stalk,e.c.t and fertilizer materials from poultry manure , home or
factory waste
2. Sawdust dryer machine drum RPM can be controlled according to raw materials humidity.
If humidity is large, then can control feeding speed and drum RPM lower to make longer drying time.
The longer drum ensure high heat use efficiency.

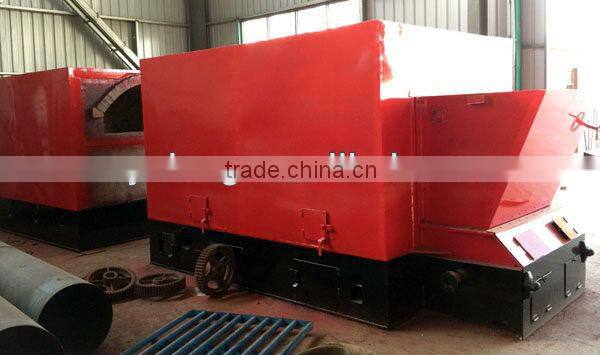

3.sawdust drum dryer has temperature adjusting equipment between stove and dryer,
which can adjust the hot air temperature before feeding to drum according to raw materials humidity
,after adjusting, then feed to dryer drum

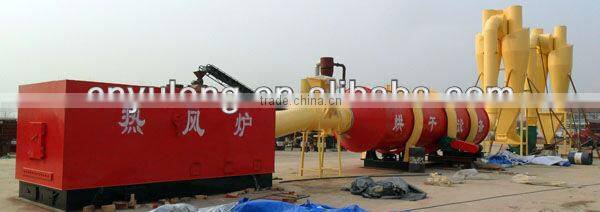

4.sawdust dryer machine has two ways to discharge materials,
one is to outlet from rotary drum bottom, it is mainly fit for large weight ratio materials , the other is to
outlet materials from cyclone bottom , which mainly fits for light ratio materials . On one hand with high
drying efficiency , on the other hand clean dust.
5. sawdust dryer machine is very hot selling more than 200 sets per year, greatly welcome
to ask me for more details , we have big discount at this moment
Model |
Power (kw) |
Steam Evaporation capacity (ton) |
QHG0.8*6*1 |
4+3 |
0.1-0.2 |
QHG0.8*12*1 |
4+5.5 |
0.2-0.3 |
QHG01*6*1 |
4+7.5 |
0.2-0.3 |
QHG01*12*1 |
5.5+7.5 |
0.4-0.5 |
QHG01.2*12*1 |
5.5+7.5 |
0.4-0.6 |
QHG1.4*12*1 |
5.5+11+7.5+3 |
0.6-0.8 |
QHG1.5*12*1 |
5.5+15+7.5+4 |
0.8 |
QHG1.6*12*1 |
5.5+18.5+7.5+4 |
0.8-1 |
QHG1.6*24*1 |
7.5+22+15+5.5 |
1.1-1.2 |
QHG1.8*12*1 |
7.5+18.5+11+4 |
0.8 |
QHG1.8*12*3 |
11+30+5.5 |
1 |
QHG1.8*24*1 |
11+30+4 |
1 |
QHG2*12*1 |
7.5+22+11 |
1.2 |
QHG2*12*3 |
11+45+5.5 |
1.5 |
QHG2*24*1 |
7.5+37 |
1.2 |
QHG2.2*12*1 |
7.5+22+4 |
1.2 |
QHG2.2*12*3 |
11+45 |
1.5 |
QHG2.2*24*1 |
7.5+37 |
1.8 |
QHG2.5*12*1 |
15+22+4 |
1.5 |
QHG2.5*12*3 |
18.5+45 |
1.8 |
QHG2.5*24*1 |
15+37 |
1.8 |
QHG2.8*12*1 |
18.5+30+4 |
1.8 |
QHG2.8*12*3 |
22+55 |
1.8 |
QHG2.8*24*1 |
22+45 |
2.4 |
QHG3*12*1 |
22+45+4 |
2.5 |
QHG3*12*3 |
30+55 |
2.5 |
QHG3*24*1 |
22+45 |
3 |
QHG3.5*24*1 |
30+45+5.5 |
3.6 |
QHG3.5*12*3 |
75+45 |
3.8 |
QHG3.5*24*1 |
22+45 |
3 |
