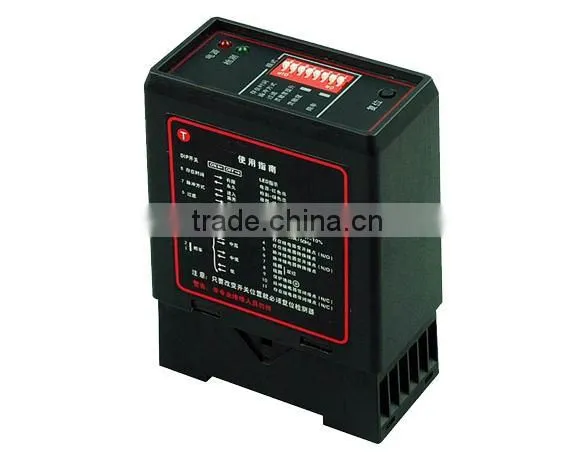

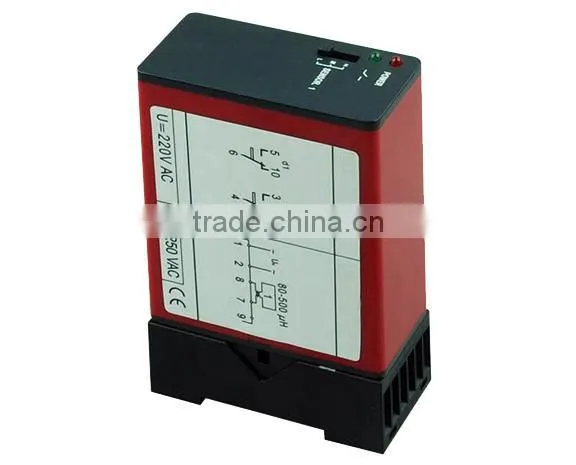

Parking Gate and Automatoc Gate Double Channel Vehicle Loop Detector

US$ 43.9 - 216.8 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HSY

Model Number:

HYS-C88

Shenzhen HSY Security Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HSY

Model Number HYS-C88

Parking double channel vehicle loop detector

Product Description

Introduction

1. Loop detectors are used wherever vehicles have to be detected.

Like monitoring and safe guarding access ways for counting vehicles.

The output signal can be used for controlling door and gate drive mechanisms, road barriers,

controlling traffic light systems in car parks or activating card dispensers in car parks.

2. The Product is a channel inductive loop detectors.

The principle is based on a change in the inductance within the loop which is caused by the metallic

components of passing vehicles.

The changes are picked up and evaluated by a microprocessor.

Ease of use due to the automatic calibration when the operating voltage is applied.

Features

*. Compatible with parking management system

*. Easy installation and operating

*. Best service and factory price and fast shipping

Double Loop detector specifications

Model	HSY-C88
Operation Voltage	AC 220V±10%
Power consumption	<5W
Output	Two-way output relays One is unlimited output when loop is temporarily covered, while the other is multi-mode that can be set by users
Frequency range	20kHz to 170kHz (4 grades adjustable)
Reaction time	20ms
Sensitivity adjusting	10 grades
Loop inductance	Ideal: 100uH to 300uH (include connecting wiring)
Loop inductance	Maximum: 50uH to 1000uH (include connecting wiring)
Loon connection wiring	Recommend down-lead not more than 100 meters, twist 20 times at least per meter for the loop, total resistance ≤10 Ohm
Connection method	11-pin socket
Shell	PC and ABS engineering plastics
Installation	DIN rail
Operation temperature	-30 to 70℃
Storage temperature	-40 to 85℃
Relative humidity	≤95% RH
Dimensions	110 x 60 x 100mm (include base socket)
Weight	500g (include base socket)
