HSY-307 LCD F1-F8 Function Keys 125khz Em4100 RFID Card Biometric Fingerprint Door Access Control System
HSY-307 LCD F1-F8 function keys 125khz em4100 RFID card biometric fingerprint door access control system
Features:
1.Standalone fingerprint time clock along with Attendance Management System (RAMS Software).
2. Fast speed for verification(Up to 200MHz CPU CLK and 100MHz system operating frequency.)
3. Support USB HOST and USB CLIENT and TCP/IP communication.
4. Three authentication mode: Fingerprint, RFID card(125Khz) and Password.
5. Special for HSY-307: 3.2inch LCD screen with F1-F8 function keys,
Could be customized RFID card + MIFARE card function.
Access Control System Sepc:
Model |
HSY-307 |
LCD Screen |
3.2 inch TFT Color Screen |
Fingerprint Sensor Resolution |
500DPI (Optical sensor) |
CPU |
ARM926EJ CPU, Running Frequency: 200MHZ |
Communication |
TCP/IP, USB Memory Disk, USB cable |
User Capacity |
3,000 |
Records Capacity |
100,000 |
Software OS |
XP/Win2003/Vista/Win7/Win8 (32bit / 64bit) |
Identification Time |
< 1 S |
Authentication Method |
Fingerprint/ RFID Card (125Khz, EM4100) /Password |
Language |
Chinese / English / Spanish/ |
Bell |
Built-in timing bell |
Operation Mode |
Off-line/Online |
Power |
DC 12V/0.5A |
FRR |
<1% |
FAR |
<0.00001% |
Operating Mode |
Off-line/On-line |
Authentication Mode |
1:1, 1:N |
Operating environment |
Operating Temp: 0°C-50°C, Humidity:80% |
Certificates |
CE |
|
Dimension(L*W*H)mm
|
Terminal – 190*140*37mm Package –325*105*258 mm |
Weight |
Terminal – 0.453Kg Package – 0.98Kg |

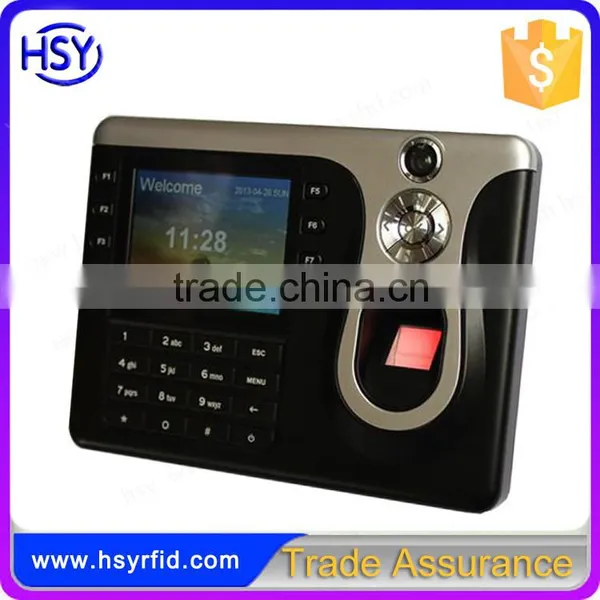

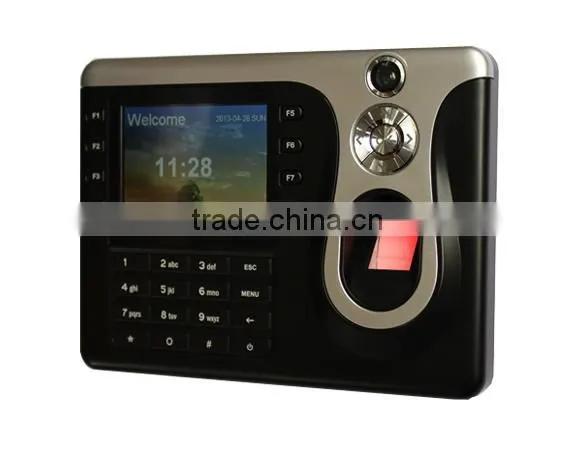

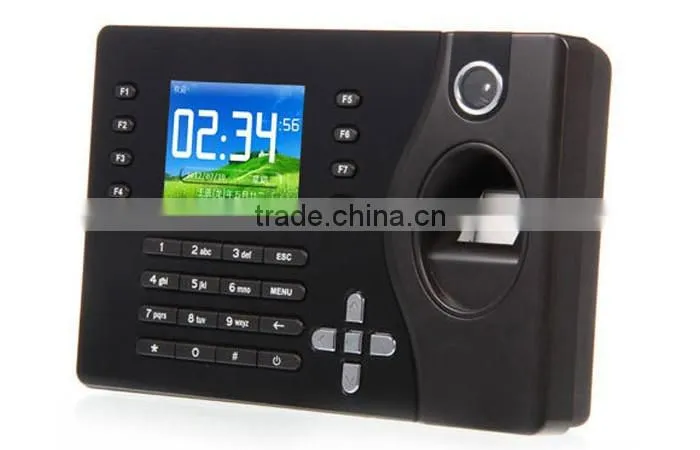

Access Control System View:
Other access control system show:
HSY-F5C:
HSY-310:
HSY-F81:
Software:
Company & Certification :
Why choose us ?

How to contact us ?
Online Skype:jane-hsy;Or send your inquiry in the below,Then Click"Send" Pls!
