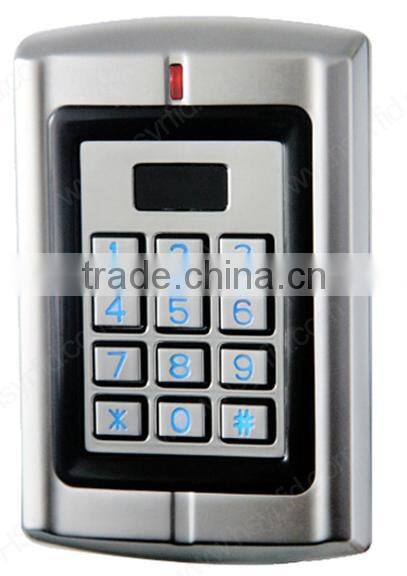

2000 card capacity 125khz 2 relays wiegand26 RFID standalone controller for access control system

HSY-W4 2000 card capacity 125khz 2 relays wiegand26 RFID standalone controller for access control system

Advantage:

1. New design two-door standalone access controller with 2 relay

2. Metal shell and keypad,IP65 waterproof degree

3. With manager add/delete card

Metal structure, anti-vandal, safe, waterproof design.

Two-relay operation

Pulse mode, toggle mode

2,100 users + 10 group duress PIN/Card (Zone 1:2,000 + Zone 2:100).

Support 3 Modes Access: Card, PIN, Card +PIN

Card Type: 125KHz EM  PIN length: 4~8 digits.

Very Low Power Consumption ( ≤35mA), long service life and stable performance.

Application in High-Security Places: warehouses, banks, prisons, etc.

High speed search: filled with 2,000 users, the search time< 0.1 seconds

Backlight keypad.

With manager cards for adding or deleting card user easily.

Wiegand 26-37 bit input & output can be programmed.

Support door bell connection (Zone 2)

Protective Properties: IP65 fully-potted.

With anti-demolition alarm function, anti-static interference 15KV

Product Certification: CE

Double door access controller Spec:

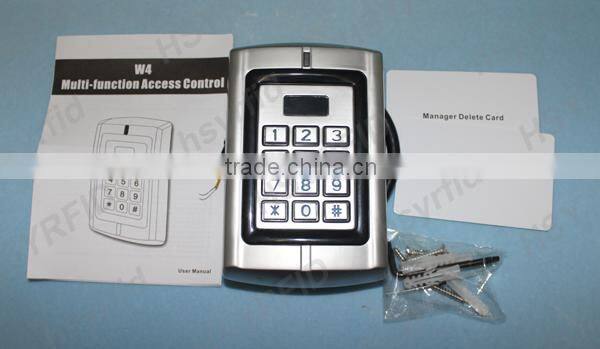

Double door access controller samples:

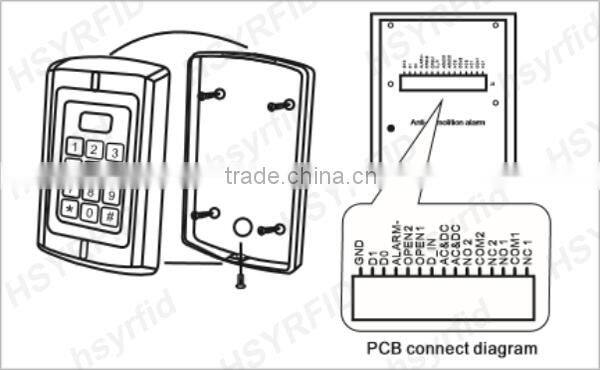

Installation:

1). Remove the back cover from the keypad using the supplied security screwdriver

2). Drill 4 holes on the wall for the screws and 1 hole for the cable

3). Fix the back cover firmly on the wall with 4 flat head screws

4). Thread the cable throught the cable hole

5).  Attach the keypad to the back cover.

Attach the keypad to the back cover.

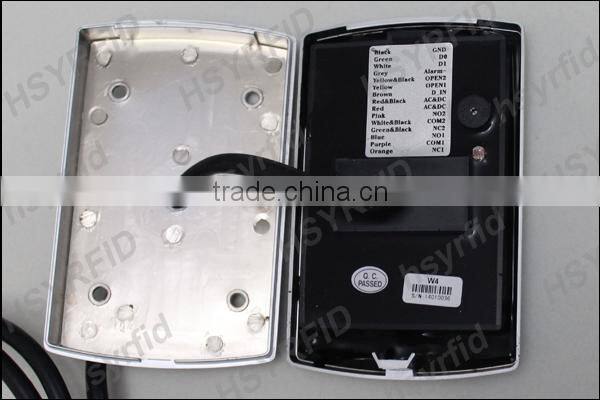

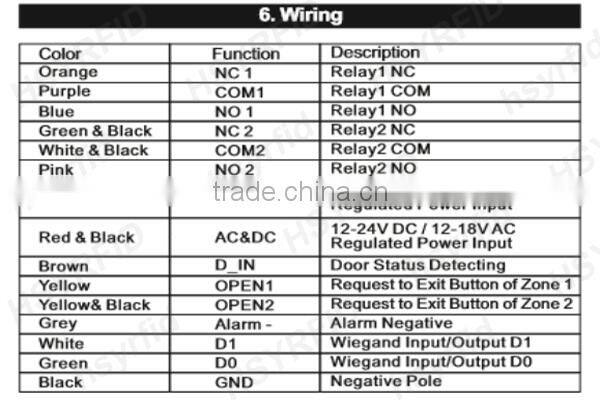

Wiring diagram:

 Quick programming guide:

Packaging & Shipping



Shipping :

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;

2. By Air or by Sea for bulk goods, for FCL; Airport/ Port receiving;

3. Support Customers specifying freight forwarders or selected shipping methods!

4. Delivery Time: 2~7 working days. Accurate deliver based on your quantity .

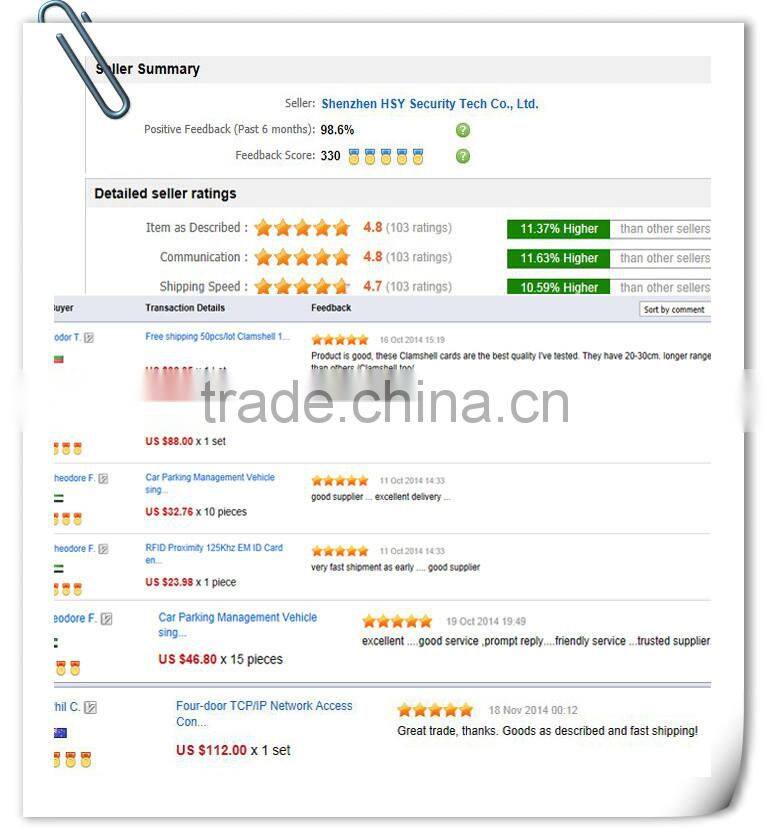

Buyer Feedback
