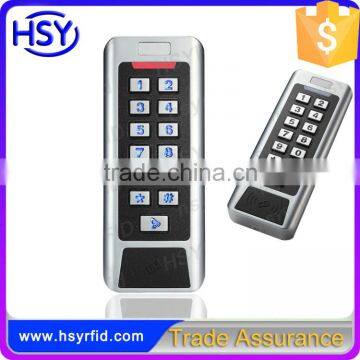

IP68 Waterproof 125khz ID Smart Card 2 Relays Control 2 Doors RFID Reader With Keypad

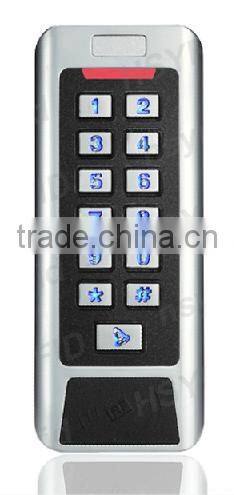

IP68 Waterproof 125khz ID smart card 2 relays control 2 doors RFID Reader with keypad

Advantage:

1. OEM/ODM orders are welcome;

2. Professional techniques support help you slove the issue when testing;

3. Friendly software,SDK for free to OEM/ODM customers;

4. Highly quality products with competitive price.

Standalone door access controller Features:

1. Pure Zinc alloy case; waterproof conform to IP 68

2. Built-in 125KHz

3. Perfect digital backlit key, the back light can be set to Normal ON, Normal OFF or Human-Approach ON

4. With anti-tamper Alarm, door contact Alarm, Anti-duress Alarm function

5. Add and delete card user quickly With Manager cards

6. Can register and delete user via keypad

7. Master can open the door when entering the setting status

8. Multi working modes: reader, one door, two door, interlock, anti-passback and so on, suitable for many occasions

Support 7 type working mode:

1.Wiegand Reader,

2.Standalone for single door,

3.standalone for two doors,

4.with external reader for two doors

5.two units interlocked for two doors,

6.Anti-passback for single door,

7.Anti-passback for two door.

Besides, it also supports 1 Master code,2 Manager card, 2 Anti-duress Card users and 2 Anti-duress PIN users, providing users with easy operations and safety reliability

2 door access controller Specification:

Input Voltage : AC/DC 12V

Idle Current<25mA

Lock output load<1A

Alarm output load<1A

Ring bell load<1A

Card reading distance 40mm Max

Card Frequency: 125KHz for EM

Card transmission format 26-37 bit wiegand

Keypad transmission format:4bit,8bit and Virtual card number

Operating Temperature:-45°C~55° C

Operating Humidity:0%~95%.

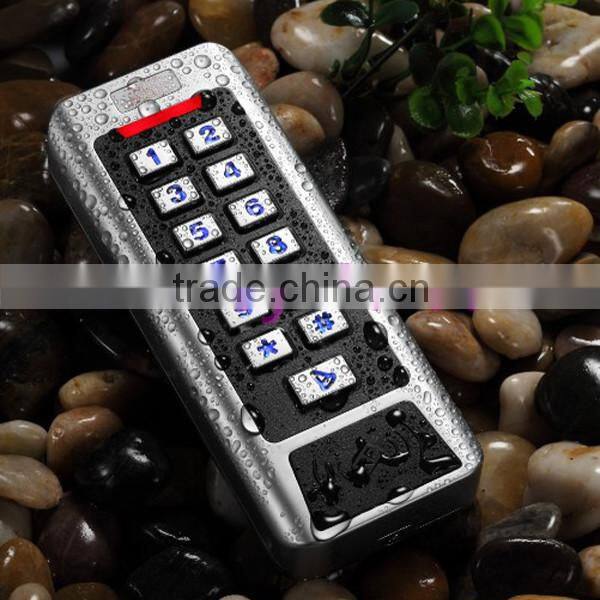

2 door access controller Sample shows:

Installation:

1).Remove the back cover from the keypad using the supplied special screw driver

2) Drill 2 holes on the wall for the Self tapping screws and I hole for the cable

3)Put the supplied rubber bungs to into the two holes

4)Fix the back cover firmly on the wall with 2 Self tapping screws

5)Thread the cable through the cable hole

Attach the keypad to the back cover.

Wiring diagram:

Sound and light indication:

Working mode diagram:

FAQ
