HSY-R127 RFID key card passive tag rfid reader

Introduction:

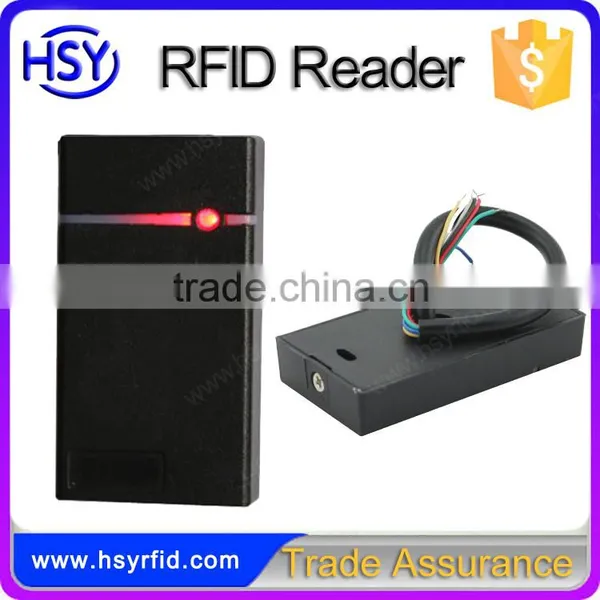

RFID card reader is a standard Wiegand26 bit output format and an off-contact high performance reader. Its main use is as a supplementary reading device for the controller which has the wiegand interface. It characters with exquisite appearance, convenient installation and stable characteristics.

Passive tag rfid reader Specification:

Passive tag rfid reader Views:

RS232 Connection is as follows:

Red Wire: Connecting Power Positive Side

Black Wire: Connecting Power Negative Side

Blue Wire: Connecting Feet 2 of the 9 PIN Serial Port. And Serial Port 5 should also connect Negative Power side.

Computer Setting

Computer Start – Programs – Accessories – Communications – Hyper Terminal. (First Choice: COM Port 1.)

Baud Rate: 9600.

Data Bit: 8.

Stop Bit: 1.

Parity check: No.  OK.

Installation:

Using “+”type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Notice!!!

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them, three strands are spare, if no need reader show illegal card s by sound and light, LED wire can not be used, data wire Data1 Data0 are twisted pair would be better, we suggest sectional area are 0.22 square millimeter at least. The length should not exceed 100meters.

1pcs per box, 100pcs per carton.
