RFID 12dbi Antenna Max 12meter Long Range UHF RFID Parking System Passive Reader and Writer With SDK

RFID 12dbi Antenna Max 12meter Long Range UHF RFID Parking System Passive Reader and Writer With SDK photo-1
US$ 101 - 387.4 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HSY
Model Number:
HSY-L008
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name HSY
Model Number HSY-L008

 RFID 12dbi Antenna Max 12meter Long Range UHF RFID Parking System Passive Reader and Writer with SDK



RFID 12dbi Antenna Max 12meter Long Range UHF RFID Parking System Passive Reader and Writer with SDK







Advantage:



1.16 years experience professional in RFID products

2. OEM/ODM orders are welcome;

3. Professional techniques supports;

4. Best quality,Best price,Best Service.



Product Description

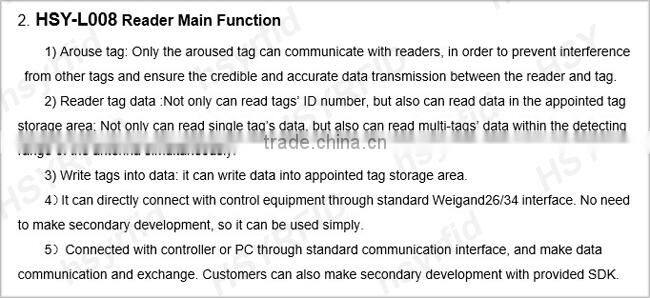

 Main function:





Passive Reader and Writer Introduction:



The products can be compatible with multi-protocol, integrated design ,quickly read, multi-tag read, proof-water, can be used widely in RFID systems ,the mainly applying site is:

1. Logistics and warehouse Management: Goods flow warehouse management, and the flowing management of mail, parcel, luggage.

2. Intelligent parking Management: Parking management and automatic charge

3. Productive lines Management: Production process fixed identification;

4. Product counterfeit-proof inspection: Using memory’s write-protect functions inside tags, and identifying with true- false of products

5. Other fields: Used widely in club management, library, student’ school, consumption management time management, dinner management pool management





Passive Reader and Writer Specification:



ModelHSY-L008
ProtocolISO18000-6B, ISO18000-6C (EPC GEN2)
Frequency RangeStandard ISM 902~928MHz or ISM 865~868MHz,other frequency available
Operation ModeFHSS or fixed frequency(set by software)
RF Power0~30dBm,software adjustable
Reading SpeedSoftware Programmable,Average Reading per 64Bits: <6ms
Reading ModeTiming or Touch, Software Programmable
Data PortsStandard: Wiegand26/34, RS485, RS232; Software Programmable
Optional: WIFI, RJ45
Data Input PortTrigger input one team
Reading RangeMax 12 m
Reading ClueBuzzer
AntennaBuilt-in line polarization Antenna, Gain:12dbi
Power SupplyDC+9V (Power Adapter)
Dimension440mm×440mm×50mm
Weight4.5Kg
Operation Temp-20 Degree~+80 Degree

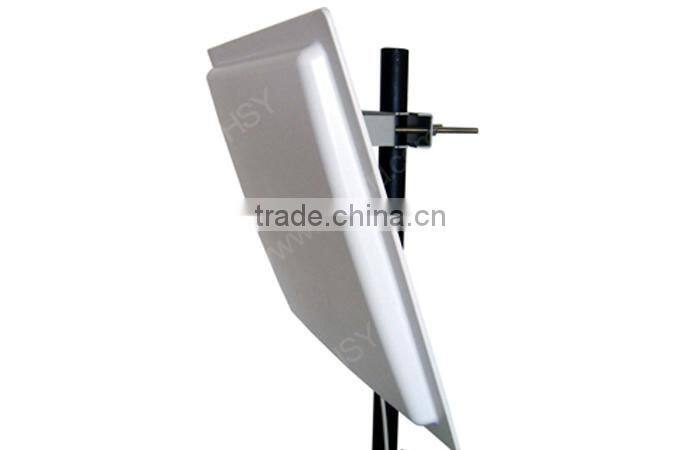

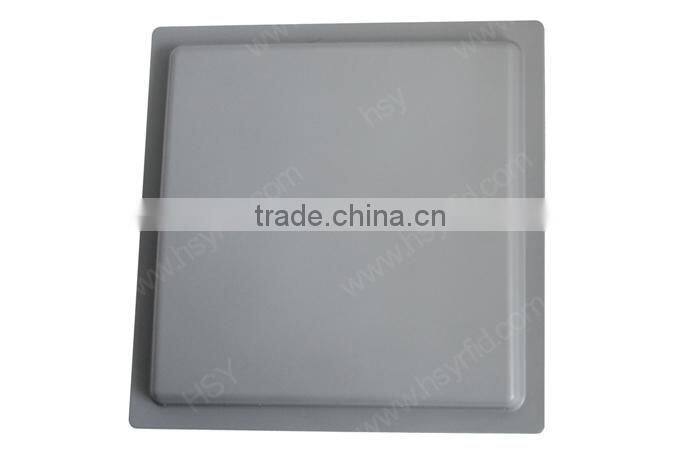

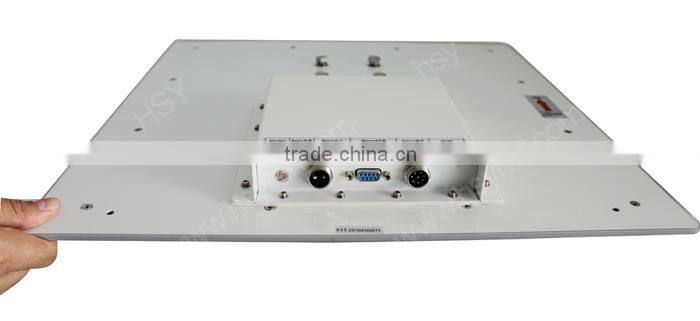

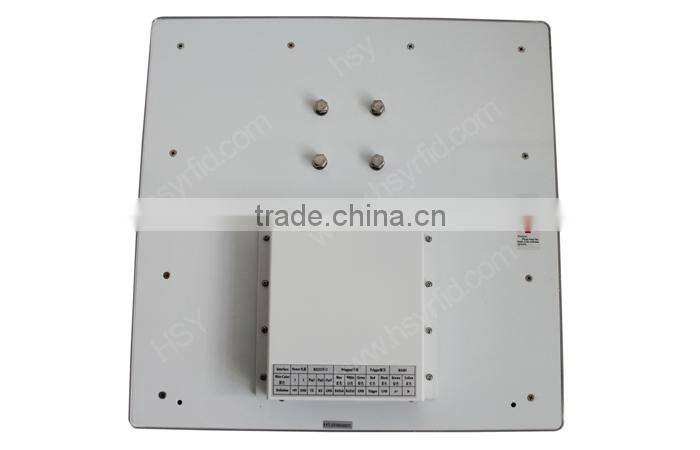

Passive Reader and Writer Sample shows:



RFID 12dbi Antenna Max 12meter Long Range UHF RFID Parking System Passive Reader and Writer with SDKRFID 12dbi Antenna Max 12meter Long Range UHF RFID Parking System Passive Reader and Writer with SDKRFID 12dbi Antenna Max 12meter Long Range UHF RFID Parking System Passive Reader and Writer with SDKRFID 12dbi Antenna Max 12meter Long Range UHF RFID Parking System Passive Reader and Writer with SDKRFID 12dbi Antenna Max 12meter Long Range UHF RFID Parking System Passive Reader and Writer with SDK



RFID 12dbi Antenna Max 12meter Long Range UHF RFID Parking System Passive Reader and Writer with SDK



User installation:





Demo software:





Application:





Packaging & Shipping
  RFID 12dbi Antenna Max 12meter Long Range UHF RFID Parking System Passive Reader and Writer with SDK
Shipping :

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;

2. By Air or by Sea for bulk goods, for FCL; Airport/ Port receiving;

3. Support Customers specifying freight forwarders or selected shipping methods!

4. Delivery Time: 2~7 working days. Accurate deliver based on your quantity .
