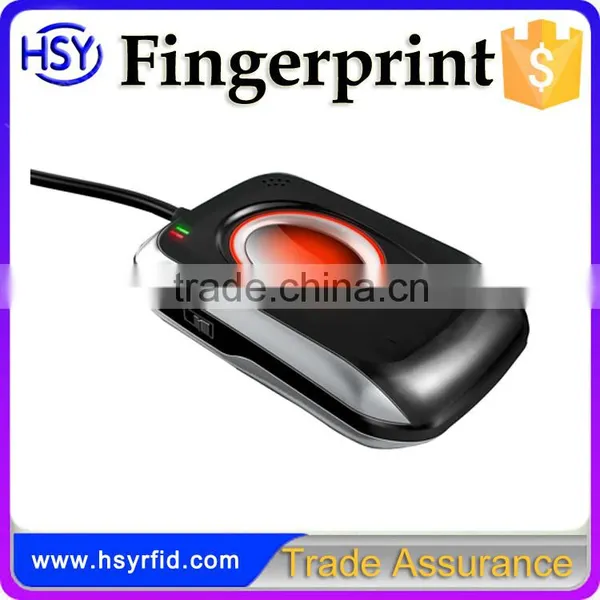

HSY-FS7500 Capture Fingerprint Image Upload to PC by USB interface Windows Fingerprint Sensor Device
USB Fingerprint Reader Sensor Introduction:
HSY-FS7500 is a stable and excellent fingerprint reader.
The device can capture fingerprint image and upload e to the PC by USB interface.
HSY-FS47500 supports most of the Windows OS, including Window xp, vista and Windows 7(32bit).
The HSY-FS7500 Fingerprint Reader is a USB Fingerprint reader.
The user simply places his or her finger on the glowing reader window, and the reader quickly and
automatically scans the fingerprint.
On-board electronics calibrate the reader and encrypt the scanned data before sending it over the USB interface.
The HSY-FS7500 utilizes optical fingerprint scanning technology for superior quality and product reliability.
USB Fingerprint Reader Sensor Features:
· Small form factor
· Excellent scan quality
· Encrypted fingerprint data
· Latent print rejection
· Counterfeit finger rejection
· Rotation invariant
· Works well with dry, moist, or rough fingerprints
· Compatible with Windows. XP, 2000, Me, 98, NT. 4.0 and Windows Server 2000, 2003.
USB Fingerprint Reader Sensor Specification:
| Model No. | HSY-FS7500 |
| Pixel resolution | 512 dpi (average x y over the field) |
| Scan capture area | 15 mm (nom. width at center), 20 mm (nom. length) |
| Grayscale | 8-bit grayscale (256 levels of gray) |
| Reader size (approximate) | 63 mm x 39 mm x 9.1 mm |
| USB Specifications | Compatible with USB 1.0, 1.1 and 2.0 (Full Speed) specifications |
| Supply Voltage | 5.0V ±5% supplied by USB |
| Supply Current | scanning 190 MA (Typical) |
| Supply Current | idle mode 140 MA (Typical) |
| Supply Current | suspend mode 1.5 MA (Maximum) |
| Support O/S | Windows XP and Vista, windows 7(32bit) |
| Operating Humidity | 20-80% |
| Operating Temperature | 0°-40°C |
| ESD Susceptibility | >15 kV, mounted in case |
Scan data |
8-bit grayscale |
| Standards Compliance | FCC Class B, CE, ICES, BSMI, MIC, USB, WHQL |
Applications:
1. Register fingerprint for biometric/RFID reader or identify ID;
2. Desktop PC security;
3. Mobile PCs;
4. Custom applications;
5. Home and office use.
