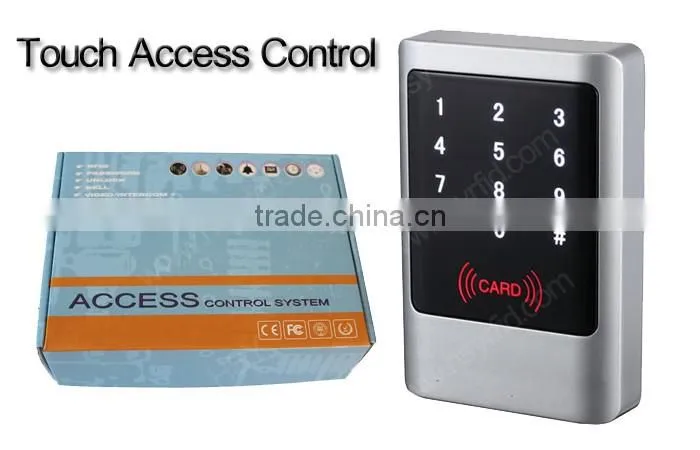

HSY-S238 RFID Short Range Access Control Touch Screen Touch Keyboard Single Door Controller
Key features:
Simple Programming,Easy Operation
New design with touch panel
Metal shell with IP65 waterproof protection Adopt function steady card reader of blocks Can be Connected with Door-open Button and Doorbell Non-volatile Memory in Power Failure Tamper
Touch Keyboard Single Door Controller Specification:
Model No. |
HSY-S238 |
Working frequency |
125khz or 13.56mhz |
User capacity: |
support 1,000 users |
Standard interface |
Wiegand 26 input |
Work Voltage: |
DC 12V±10% |
Operating current: |
< 100mA |
Reading Range: |
1~15cm |
Waterproof degree: |
IP65 rating |
Ambient Temperature: |
0°C—60°C |
Ambient Humidity: |
20%~80% |
Electricity lock output: |
≤3A |
Alarm output: |
≤20A |
Output short circuit protection time: |
≤100μS |
Open time: |
0 ~ 99 seconds (adjustable) |
Size: |
120(L) x 78(W) x 22(H) mm |
weight: |
110g |
Touch Keyboard Single Door Controller Samples :
Wire connection:
Light Description |
Access control status |
Red light flash every 1 sec (Slow flash) |
Holding state |
Red light is always ON |
Programming state |
Green light is always ON within Open time |
Unlocking state |
Green light flash every 0.5sec (Fast flash) |
Pending further action |
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;
2. By Air or by Sea for bulk goods, for FCL; Airport/ Port receiving;
3. Support Customers specifying freight forwarders or selected shipping methods!
4. Delivery Time: 2~7 working days. Accurate deliver based on your quantity .
Company & Certification :
Why choose us ?
FAQ:
Q1: What is the Warranty for products ?
A1: Our warranty :1 years' product warranty, A lifetime technical support .
Q2: How to make payment ?
A2: We can accept transfer by T/T, Paypal, Westerm union and Escrow
Q3:What is MOQ and price ?
A4: We accept sample and bulk order, We will offer best price based on your order.
How to contact us?
Online Skype:jane-hsy;Or send your inquiry in the below,Then Click"Send" Pls!
