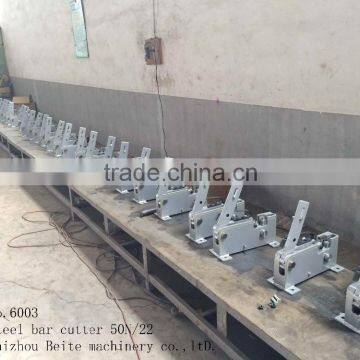

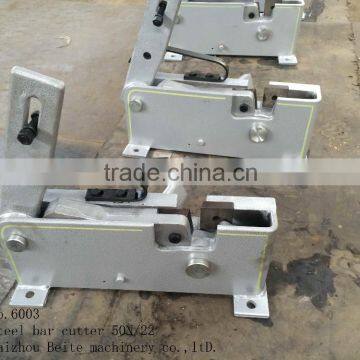

Steel Bar Cutter 50N/22
US$ 10 - 200
MOQ: 20 Sets
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
TYK
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Bar Cutter 50N/28 Hand Steel CutterUS$ 10 - 200MOQ: 1 Set -
Bar Cutter Hand-Operated Reinforcing Steel Bar Cutting MachinesUS$ 10 - 200MOQ: 10 Sets
-
Rebar Cutter of 65,000 PSI Tensile Strength, Manual OperatingUS$ 10 - 200MOQ: 1 Set
-
Rebar Cutter 22/28/32US$ 10 - 200MOQ: 1 Set
-
Reinforcing Steel Bar CutterUS$ 10 - 200MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
TYK
Model Number
50N/22
Voltage
manual
Rated Power
manual
Dimension(L*W*H)
355*200*400mm
Weight
13kg
Warranty
1 Year
After-sales Service Provided
No overseas service provided
Product Description
TYK reinforcing steel bar cutter (Manual Shear) is designed for manual use. Its body, gear lever and gear body are made of high carbon steel and formed by Forging
For keeping the path of the hand lever as short as possible when cutting thin as well as thick reinforcing bars and for reducing the power requirements, the shearing jaw clearance of the bar cutter are adjustable. The lever located on the left hand side of the machine is for setting the shearing jaw clearance to the thickness to be cut.
The hand lever of the bar cutter which is in basic position, is secured by a retaining spring to prevent accidental falling down.
Meanwhile the reinforcing steel bar cutter is equipped with high quality blade. With the two cutting edges on the blade, any kind of reinforcing bars can be cut easily.
·These bar cutters are well dimensioned gear lever transmission which transmits the force directly to the shear part.
·The slide holding the shear blade is precisely guided between body plate of bar butter to prevent it being forced out of line.
·This system not only keeps the frictional losses to a minimum but also give s the machines a high degree of efficiency so that optimum use is made of the operator’s effort.
·The hand-levers on all models, when in basic position, are securely held by a retaining spring to prevent accidental falling.
·Bar Cutter is very economical and labour saving job-site equipment, indispensable modern building technology.
