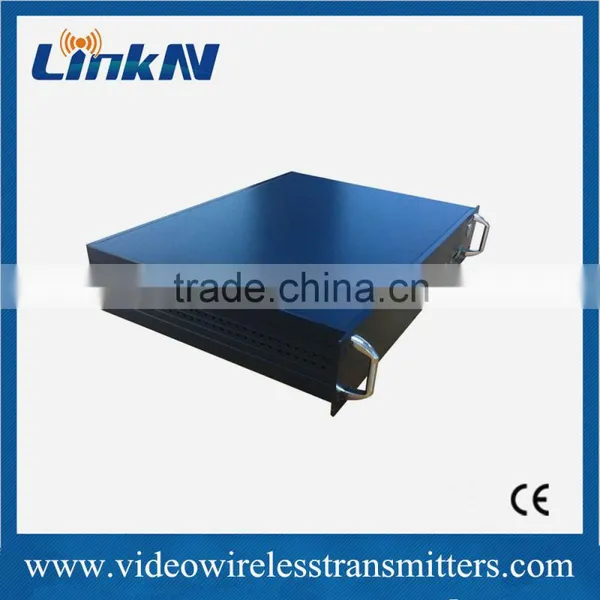

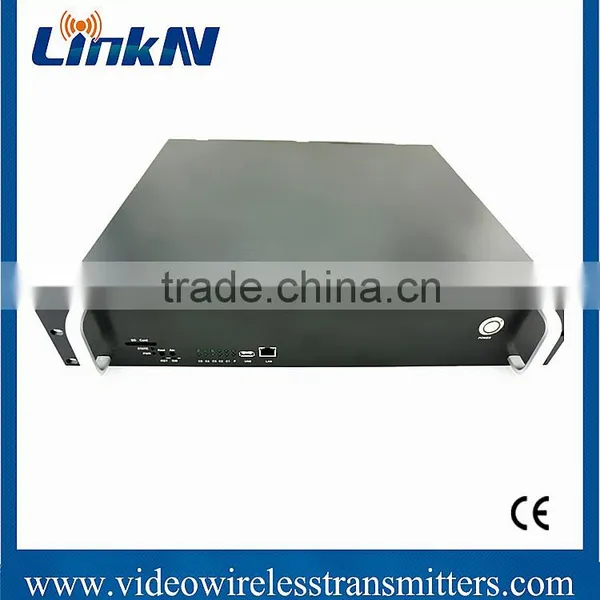

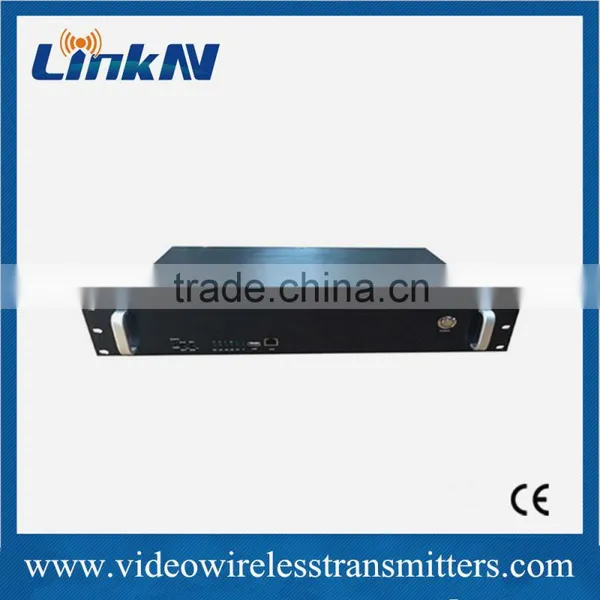

Working frequency customized 10W Audio Video Device,vehicle-mounted transceiver
LinkAV wireless transmission system advantages:
1. Long range transmission distance
2. Real-time transmission systems
3. Delay time very short less than 500ms
4. Perfect image quality, brighter colors and image smoothness.
(we will support video to demonstration it if you sent inquiry)
Product features:
1. Embedded module function, low power consumption, built-in cooling fan
2. Stable power, dynamic power adjustable
3. Support Intra-frequency/Differ-frequency networking, automatic roaming
4. NLOS transparent IP data transmission
5. Encryption: AES 128 bit
6. Dual mode adaptive positioning
Technical Parameters:
| RF parameters | Working frequency | 300~800MHz(customized) |
| Modulation bandwidth | 2 / 4 / 8MHz | |
| Modulation method | TDD-OFDM | |
| Communication method | TDMA full duplex | |
| Power output | ≤43dBm | |
| Flatness in band | ≤ ±0.5dB | |
| Band spurious | ≤ -36dBm | |
| Third-order IMD | ≤ -36dBC | |
| Receiving sensitivity | ≤ -100dBm | |
| MER | ≥ 36dB | |
| Adjacent frequency interference | ≥ 40dB | |
| Transmission bandwidth | Max 14Mbps | |
| Synchronous control | GPS or beidou synchronous clock | |
| Data | Networking protocol | IP/TCP,UDP,HTTP,SMTP etc. |
| Encoding | Video compression | H.264 |
| Picture format | CIF/D1/720P | |
| Audio encoding | 64 Kbps G.711 | |
| Audio input | Dual channel 12 dBm | |
| General specs | Working temperature | -30 ~ +70°C |
| Power input | AC 100 ~260V | |
| Power consumption | ≤ 50W | |
| Size | 2U | |
| Weight | ≤10kg | |
| Interface | Power interface | Three core power plug |
| RF antenna interface | N F head | |
| AV connector | BNC, HDMI, SDI | |
| Network interface | RJ45 | |
| GPS/Beidou antenna interface | ||
| SMA female head |
System Application:
Can be used for Public security, fire fighting,traffic warden,Civil air defense emergency, City administration, Monitoring of environment, Water conservation, flood prevention, Power and emergency, Railway emergency rescue, Maritime,Coastguard patrol,The customs border,Dock/Quay monitoring, Forest-fire prevention,Oil field, Military reconnaissance, TV transmit etc.
It is suitable for real-time mobile transmit the high quality image/audio/video in the urban area, seaborne, mountainous region etc complicated environment.
Our Services
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. we have 9 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
