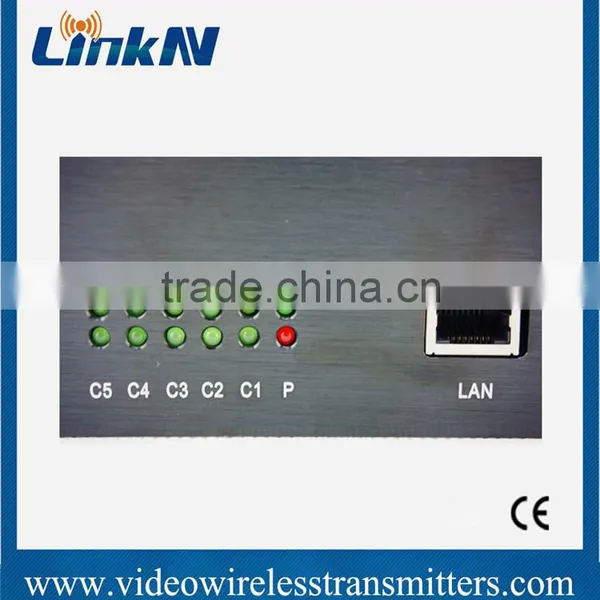

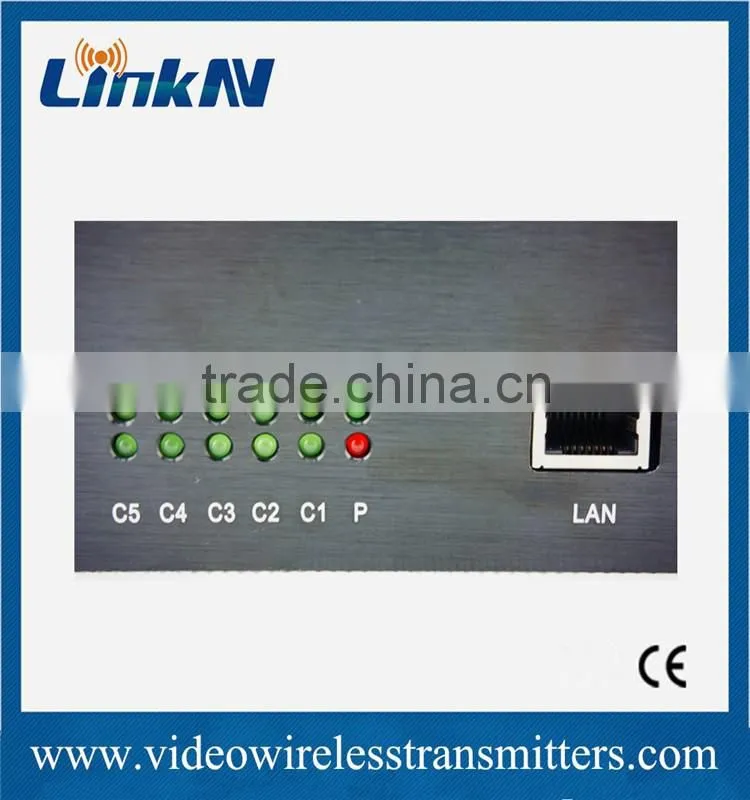

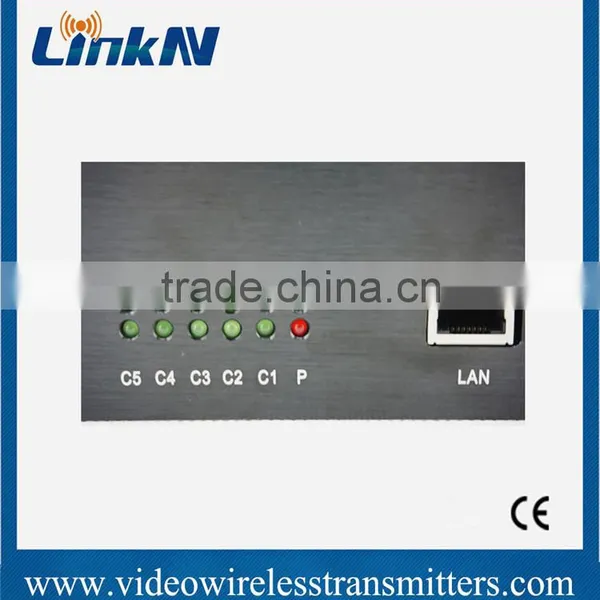

NLOS 5KM 1W UAV TDD Terminal device from Zhongchuang Technology
LinkAV wireless transmission system advantages:
1. Long range transmission distance
2. Real-time transmission systems
3. Delay time very short less than 500ms
4. Perfect image quality, brighter colors and image smoothness.
(we will support video to demonstration it if you sent inquiry)
Product Features:
1. Small size, light weight, low power consumption
2. Stable power, dynamic power adjustable
3. Support Intra-frequency/Differ-frequency networking, automatic roaming
4. NLOS transparent IP data transmission, two-way voice communication
5. Encryption: AES 128 bit
Technical Parameters:
| Item | Description | |
| RF Parameter | Working Frequency | 300~800 MHz (Customizable) |
| RF Bandwidth | 2/4/8 MHz | |
| Modulation Type | TDD-OFDM | |
| Communication Method | TDMA Full Duplex | |
| Power Output | ≤ 30 dBm | |
| Band Flatness | ≤ ± 0.5 dB | |
| Spurious Spectrum | ≤ -36 dBm | |
| Third-order IMD | ≤ -36 dBC | |
| Receiving Sensitivity | ≤ -100 dBm | |
| Anti-adjacent Frequency Interfere | ≥ 40 dB | |
| Data | Synchronization Control | GPS |
| Network Protocol | IP/TCP UDP HTTP SMTP | |
| Generic Specificaton | Working Environment | -30~+70 ℃ |
| Power Input | DC 10~16V | |
| Power Consumption | 15~30W | |
| Dimensions | 54×128×220 mm | |
| Weight | 1.1 Kg | |

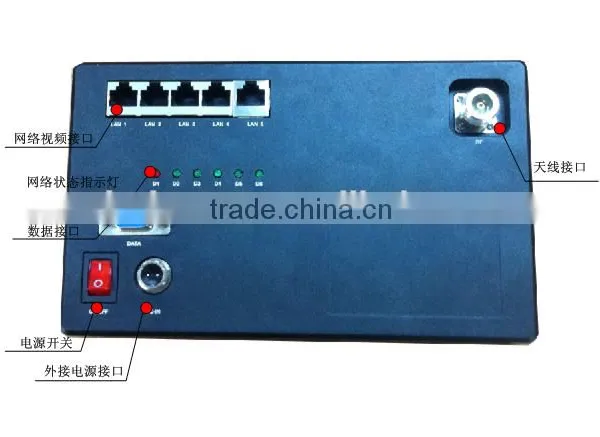

| Connector | AV Interface | 4 Pin Aviation Head |
| Control System Data Connector | RS232 | |
| RF Antenna Terminal | RF head | |
| Network Interface | RJ45 | |

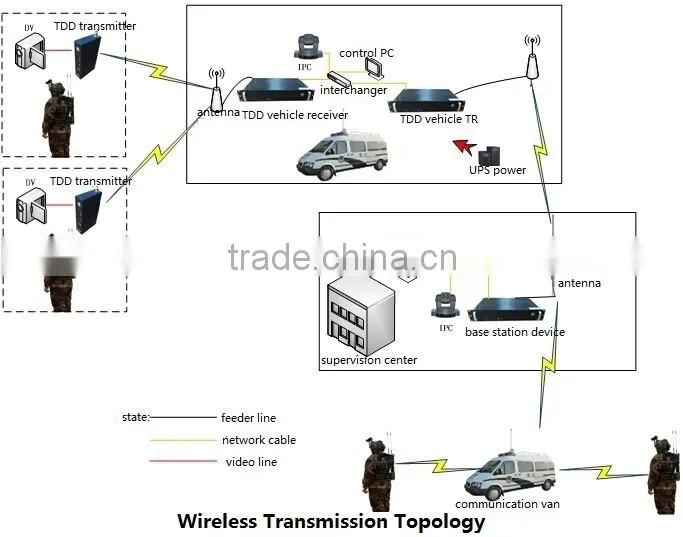

System Application:
Can be used for Public security, fire fighting,traffic warden,Civil air defense emergency, City administration, Monitoring of environment, Water conservation, flood prevention, Power and emergency, Railway emergency rescue, Maritime,Coastguard patrol,The customs border,Dock/Quay monitoring, Forest-fire prevention,Oil field, Military reconnaissance, TV transmit etc.
It is suitable for real-time mobile transmit the high quality image/audio/video in the urban area, seaborne, mountainous region etc complicated environment.
Our Services
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. we have 9 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
