Dongyu is able to provide woven and non-crimp carbon fabrics in all typical weave styles including UD, Plain, Twill, Satin.Carbon Fabric

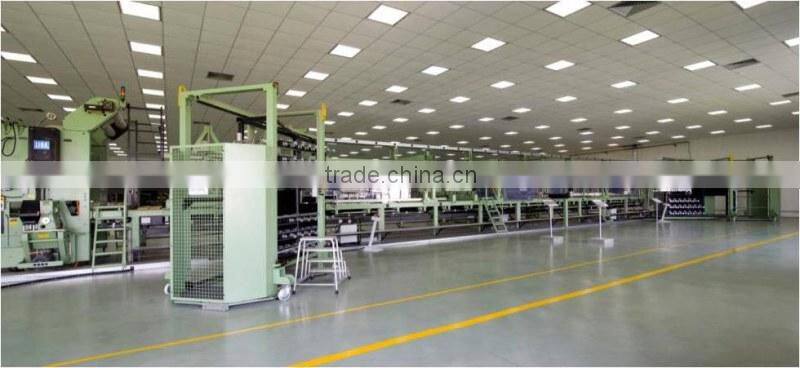

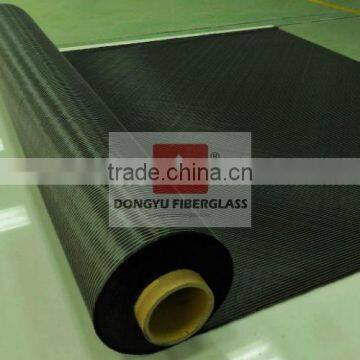

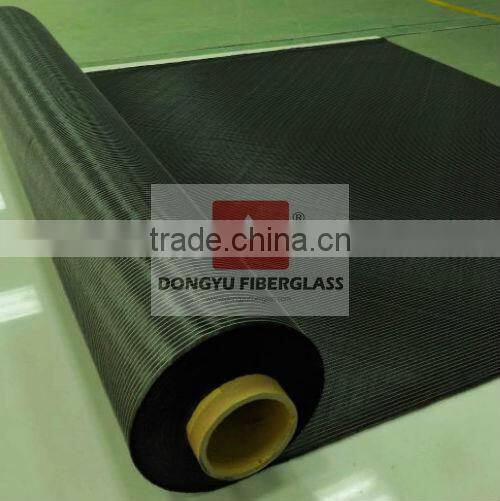

Dongyu is able to provide woven and non-crimp carbon fibre fabrics in all typical weave styles including UD, Plain, Twill, Satin (four harness, five harness, eight harness) and stitched multiaxials. Advanced manufacturing equipment, standard quality management system and experienced engineers ensure consistent product quality. Non crimp fabric fibre bundles are flat and straight to maximize the strength advantage of the fibre. Hengshen’s UD fabric structure comprises flat and straight fibres held stable by a polyester veil that allows for good fibre wetting.

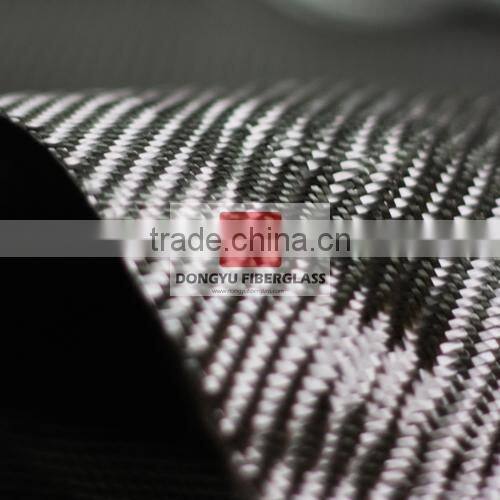

3K Carbon Fiber Fabric
Specifications
RG Product No. |
Weaving Method |
Carbon fiber |
Warp & Weft yarn count |
Size |
Weight (g/m2) |
||
Warp |
Weft |
Width |
Thickness |
||||
RG-T300-1K-P95 |
plain |
1K |
1K |
7*7 |
100 |
0.15 |
95 |
RG-T300-1K-P120 |
plain |
1K |
1K |
9*9 |
100-127 |
0.16 |
120 |
RG-T300-1K-T120 |
twill |
1K |
1K |
9*9 |
100-127 |
0.16 |
120 |
RG-T300-1K-T140 |
twill |
1K |
1K |
10.3*10.3 |
100-150 |
0.17 |
140 |
RG-T300-1K-T150 |
twill |
1K |
1K |
11*11 |
100-150 |
0.18 |
150 |
RG-T300-3K-P160 |
Single track |
3K |
Ec511 |
8*4 |
100-150 |
0.125 |
160 |
RG-T300-3K-P160 |
plain |
3K |
3K |
4*4 |
100-150 |
0.20 |
160 |
RG-T300-3K-T160 |
twill |
3K |
3K |
4*4 |
100-150 |
0.20 |
160 |
RG-T300-3K-4H185 |
4H satin weave |
3K |
3K |
4.7*4.7 |
100-150 |
0.22 |
185 |
RG-T300-3K-4H193 |
4H satin weave |
3K |
3K |
4.8*4.8 |
100-150 |
0.23 |
193 |
RG-T300-3K-T196 |
twill |
3K |
3K |
4.9*4.9 |
100-150 |
0.25 |
196 |
RG-T300-3K-P196 |
plain |
3K |
3K |
4.9*4.9 |
100-150 |
0.25 |
196 |
RG-T300-3K-P200 |
plain |
3K |
3K |
5*5 |
100-150 |
0.25 |
200 |
RG-T300-3K-T200 |
twill |
3K |
3K |
5*5 |
100-150 |
0.25 |
200 |
RG-T300-3K-P210 |
plain |
3K |
3K |
5.2*5.2 |
100-150 |
0.25 |
210 |
RG-T300-3K-P220 |
plain |
3K |
3K |
5.5*5.5 |
100-150 |
0.26 |
220 |
RG-T300-3K-T220 |
twill |
3K |
3K |
5.5*5.5 |
100-150 |
0.25 |
220 |
RG-T300-3K-4H220 |
4H satin weave |
3K |
3K |
5.5*5.5 |
100-150 |
0.26 |
220 |
RG-T300-3K-P240 |
plain |
3K |
3K |
6*6 |
100-150 |
0.33 |
240 |
RG-T300-3K-T240 |
twill |
3K |
3K |
6*6 |
100-150 |
0.33 |
240 |
RG-T300-3K-P280 |
plain |
3K |
3K |
7*7 |
100-150 |
0.34 |
280 |
RG-T300-3K-2T280 |
2*2 twill |
3K |
3K |
7*7 |
100-150 |
0.34 |
280 |
RG-T300-3K-4T280 |
4*4 twill |
3K |
3K |
7*7 |
100-150 |
0.34 |
280 |
RG-T300-3K-5H280 |
5H satin weave |
3K |
3K |
7*7 |
100-150 |
0.35 |
280 |
RG-T300-3K-8H320 |
8H satin weave |
3K |
3K |
8*8 |
100-150 |
0.36 |
320 |
RG-T300-3K-8H370 |
8H satin weave |
3K |
3K |
9.3*9.1 |
100-150 |
0.38 |
370 |
RG-T300-3K-6K-P280 |
plain |
6K |
6K |
3.5*3.5 |
100-150 |
0.35 |
280 |
